Exploded View

MRA8DE

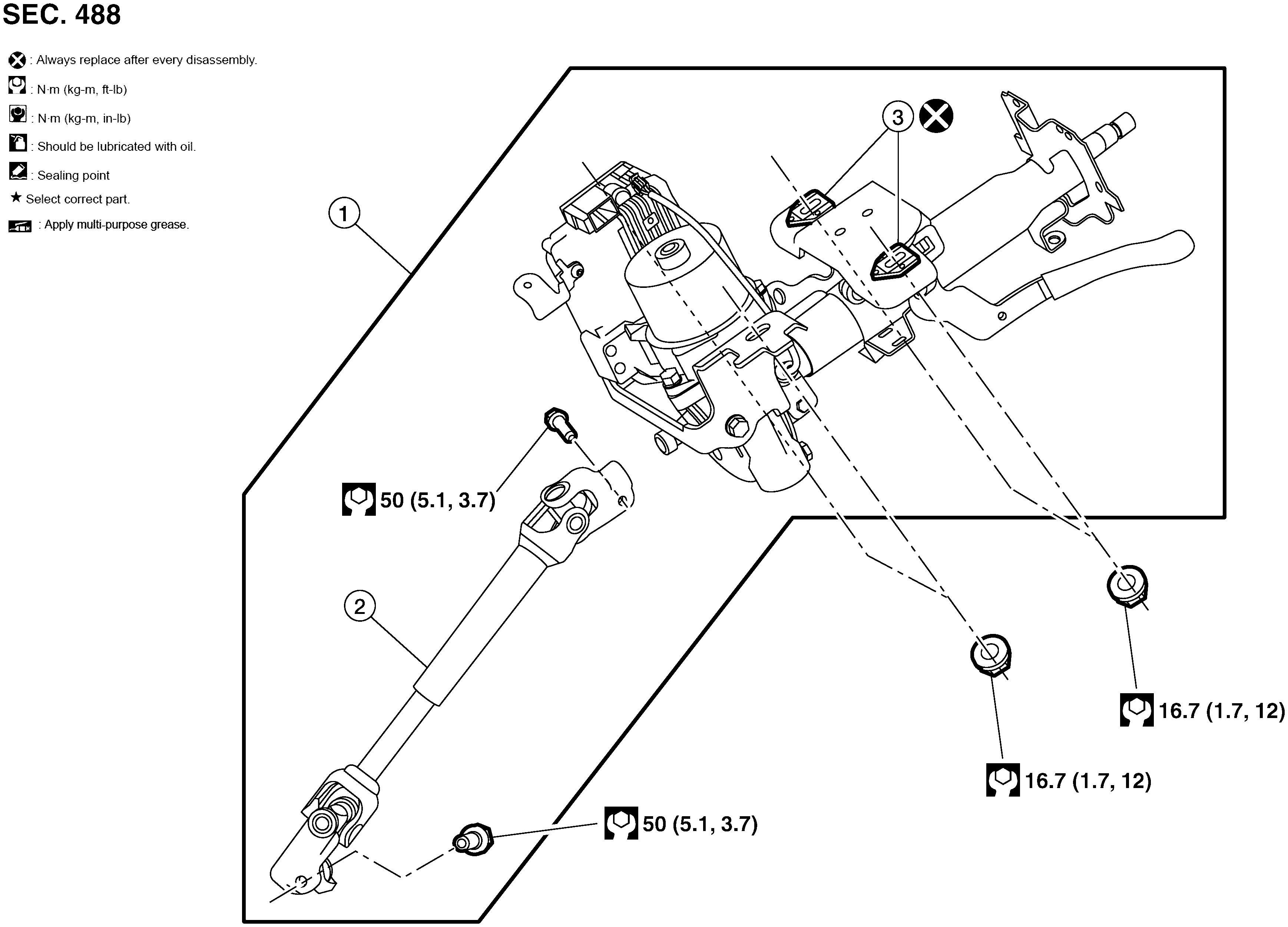

Fig 1: Steering Column MRA8DE With Torque Specifications

GNSALGIA0354ZZ-354

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates

MR16DDT

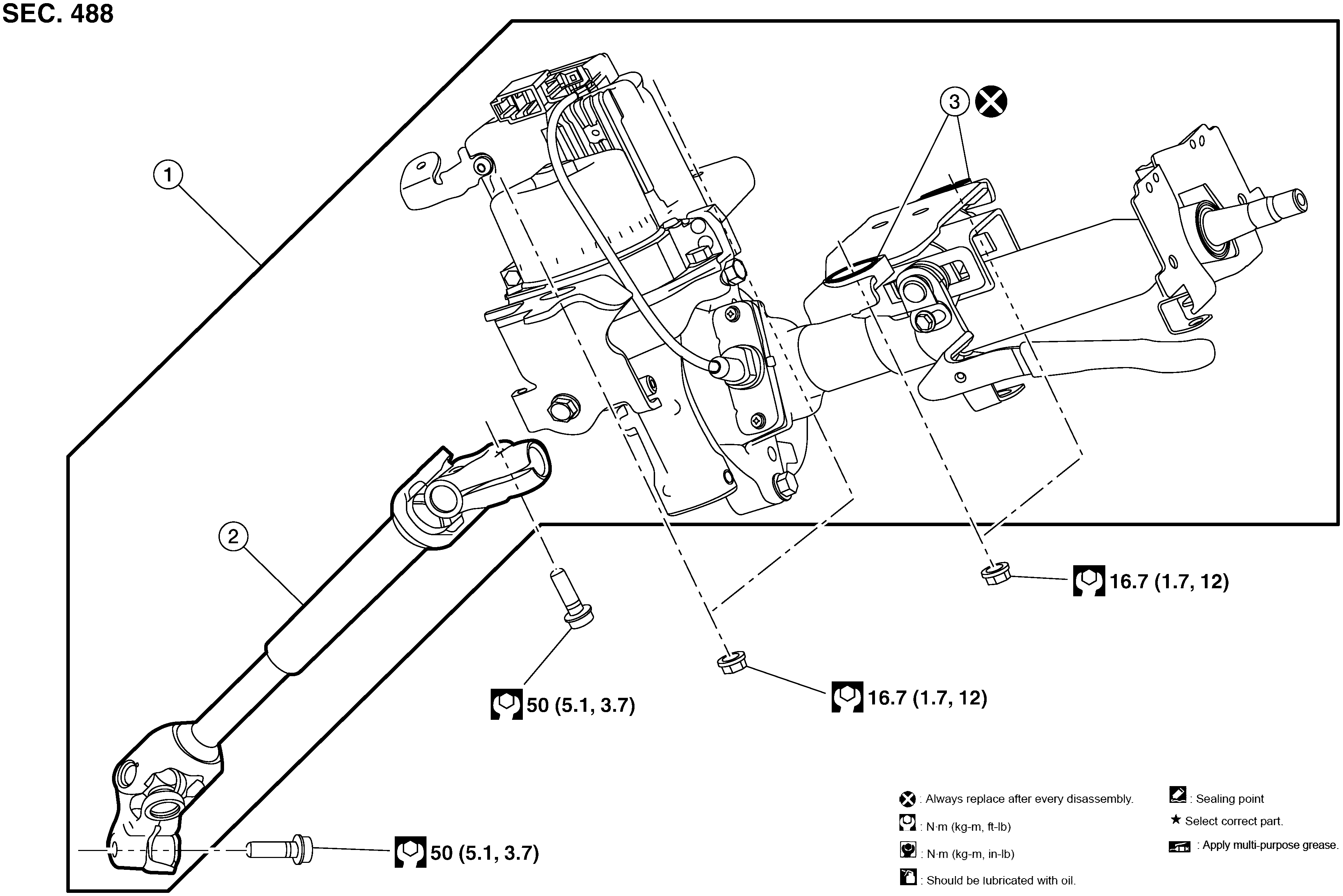

Fig 2: Steering Column MR16DDT With Torque Specifications

GNSALGIA0362ZZ-362

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Lower joint

3.

Slide plates
