Exploded View - MR16DDT
Exploded View - MR16DDT

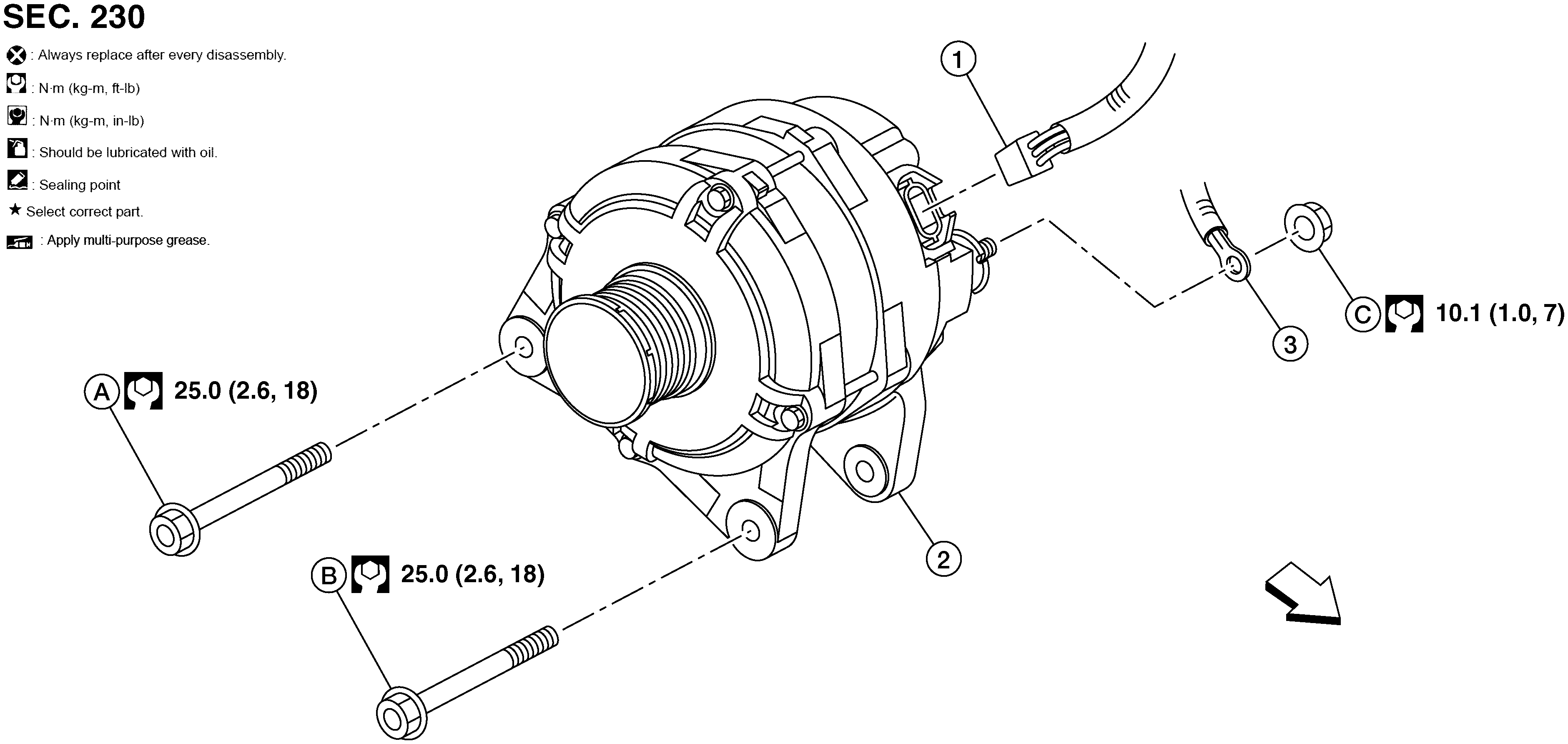

Fig 1: Generator MR16DDT With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Harness connector
2.
Generator
3.
"B" terminal harness
A.
Generator bolt (upper)
B.
Generator bolt (lower)"
C.
"B" terminal nut
Front
Courtesy of NISSAN NORTH AMERICA, INC.
