Power Steering Control System: Wiring Diagram

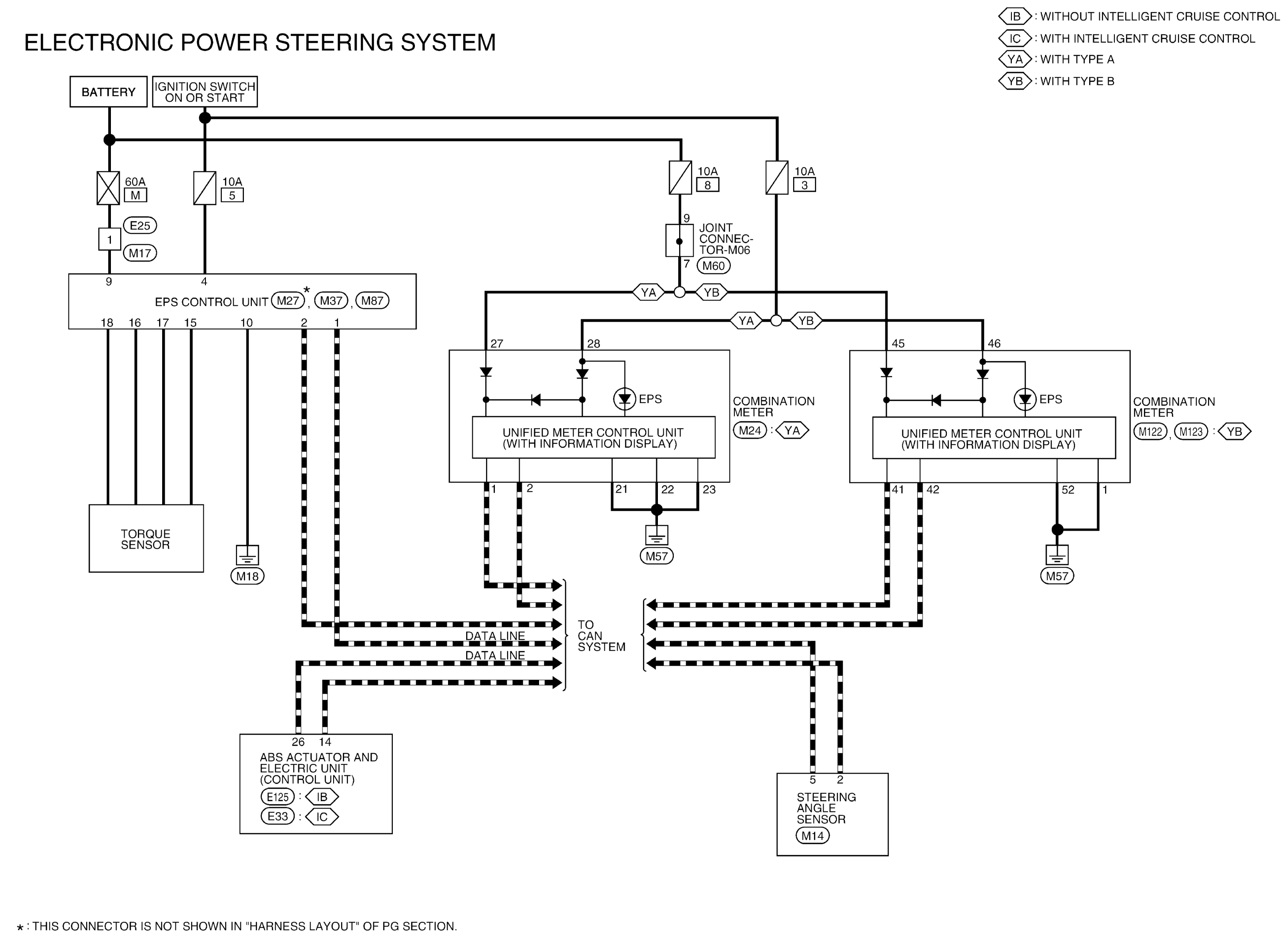

GNSAAGWA0108GB-108

Courtesy of NISSAN NORTH AMERICA, INC.

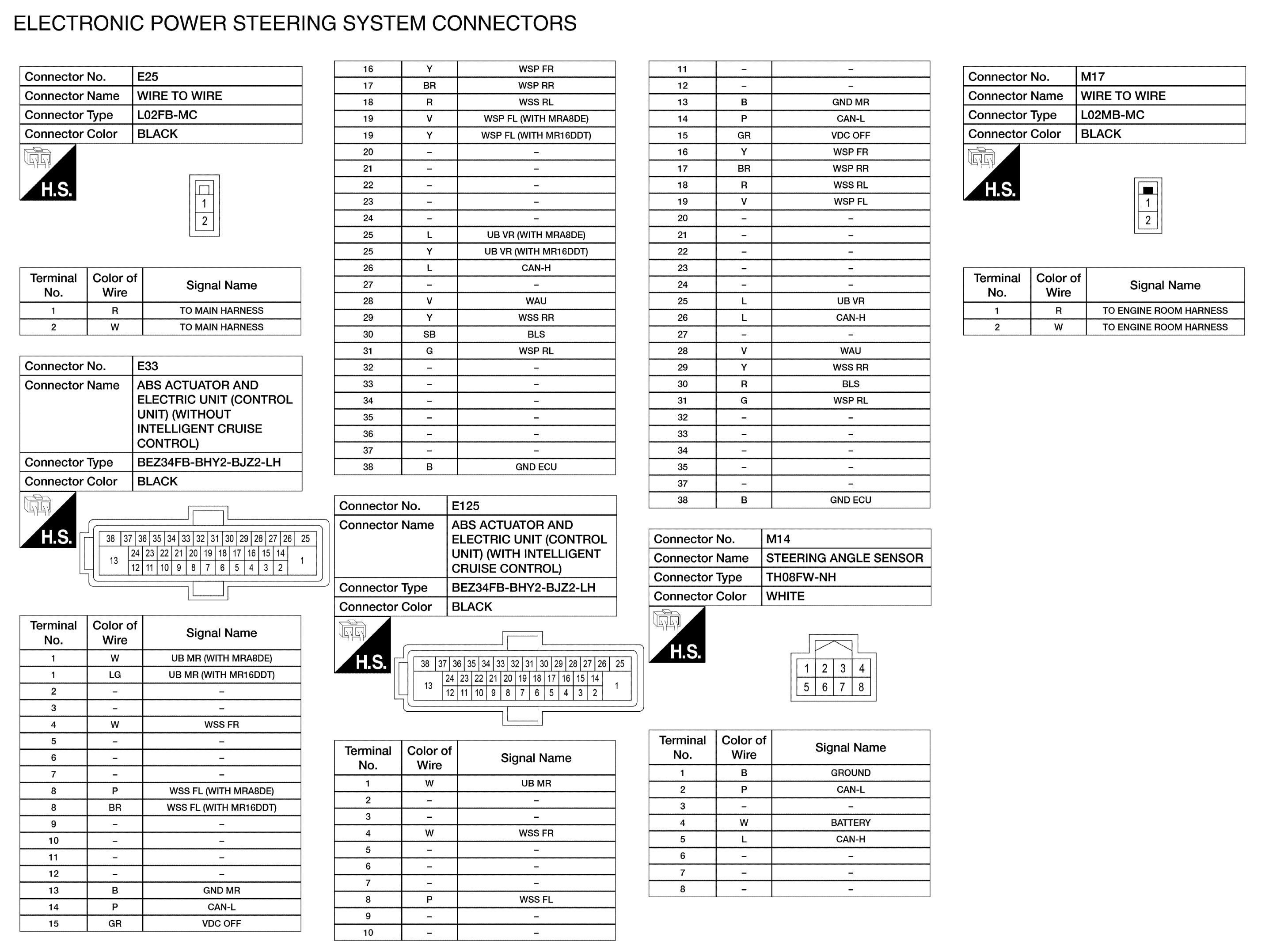

GNSAAGIA0300GB-300

Courtesy of NISSAN NORTH AMERICA, INC.

GNSAAGIA0301GB-301

Courtesy of NISSAN NORTH AMERICA, INC.

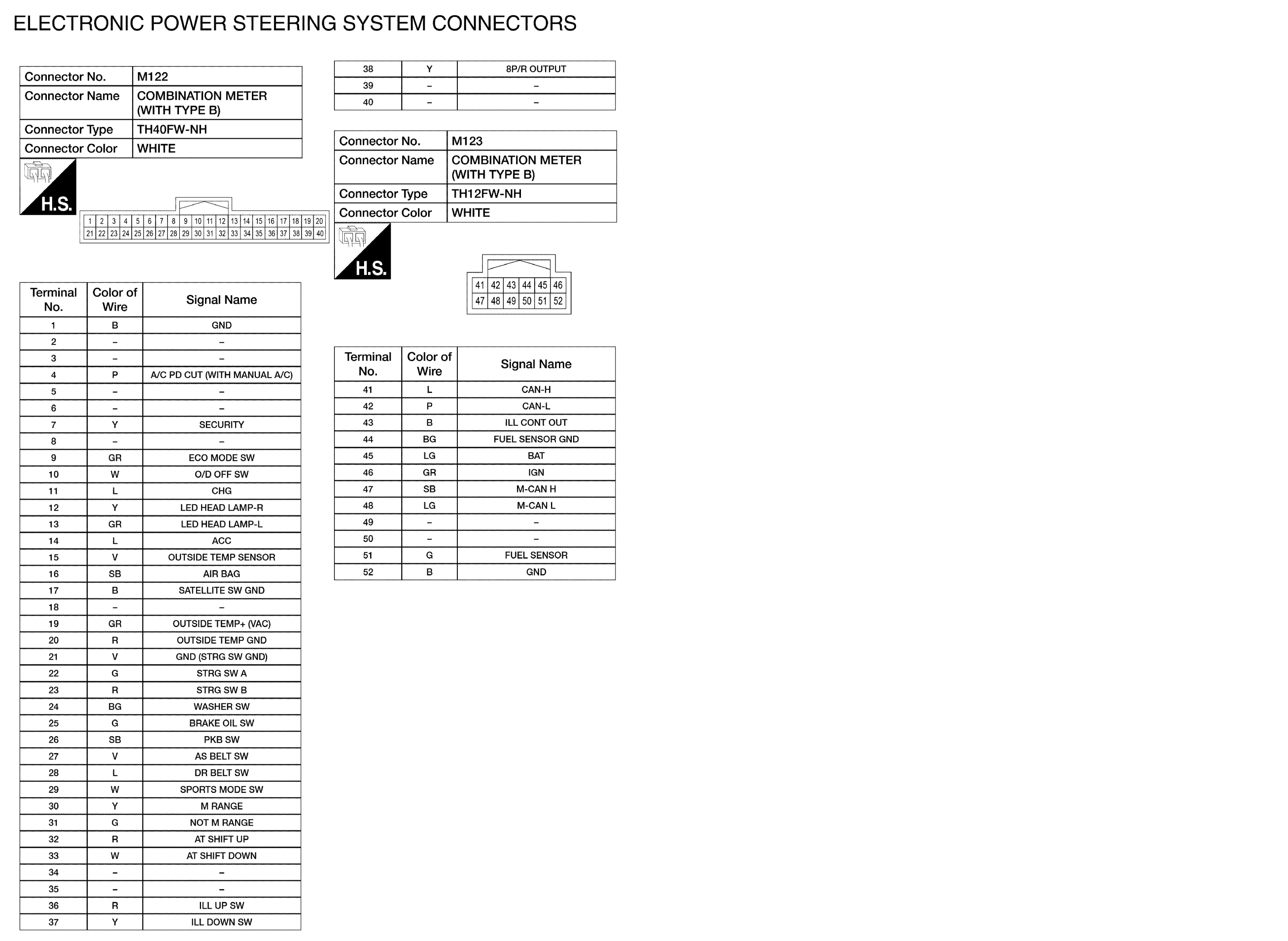

GNSAAGIA0302GB-302

Courtesy of NISSAN NORTH AMERICA, INC.
