Exploded View: Removal

MRA8DE engine

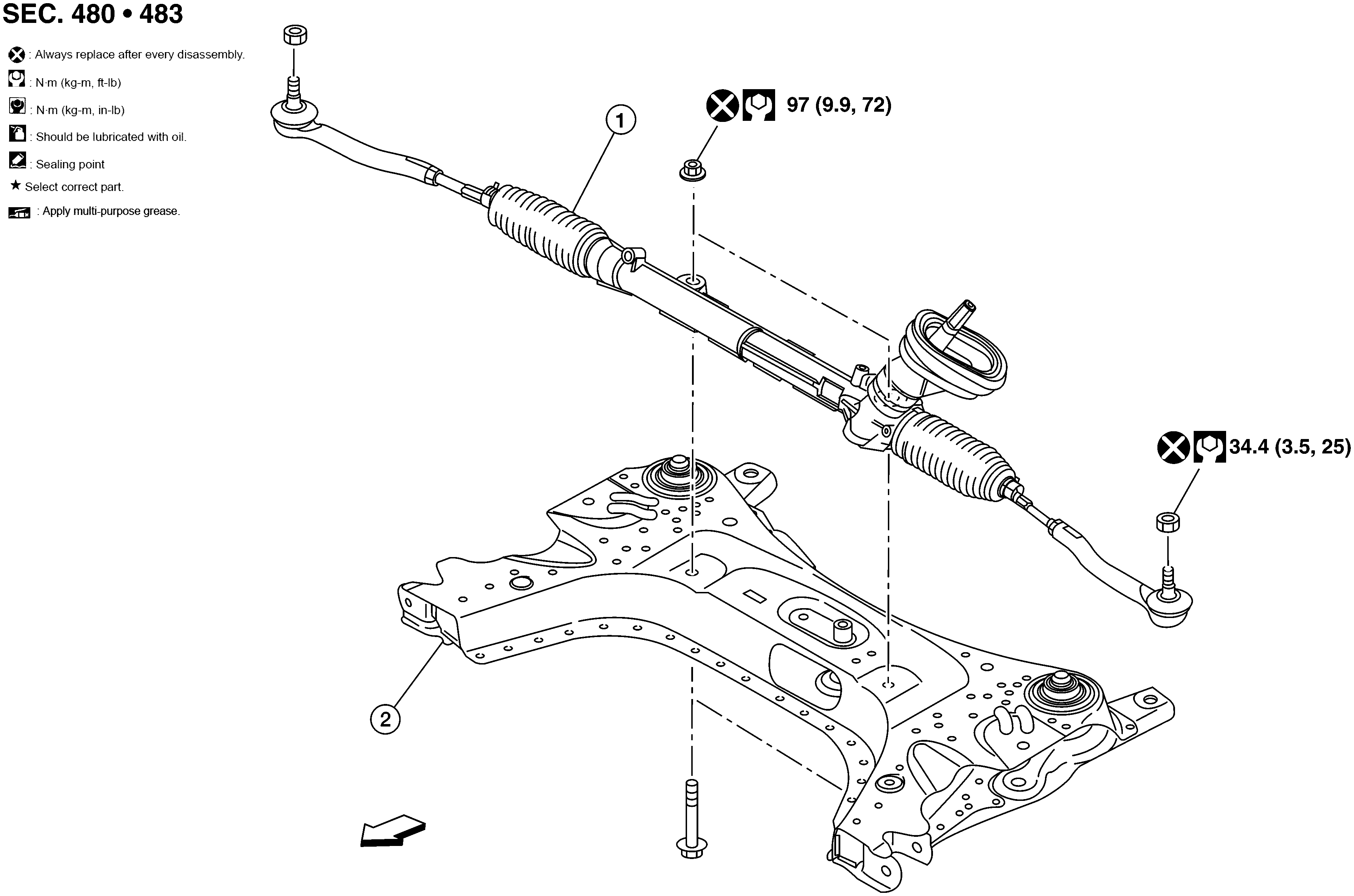

Fig 1: Steering Gear And Linkage Unit Removal And Installation MRA8DE With Torque Specifications
GNSAWGIA0254ZZ-254Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Front suspension member ARROW Front

MR16DDT engine

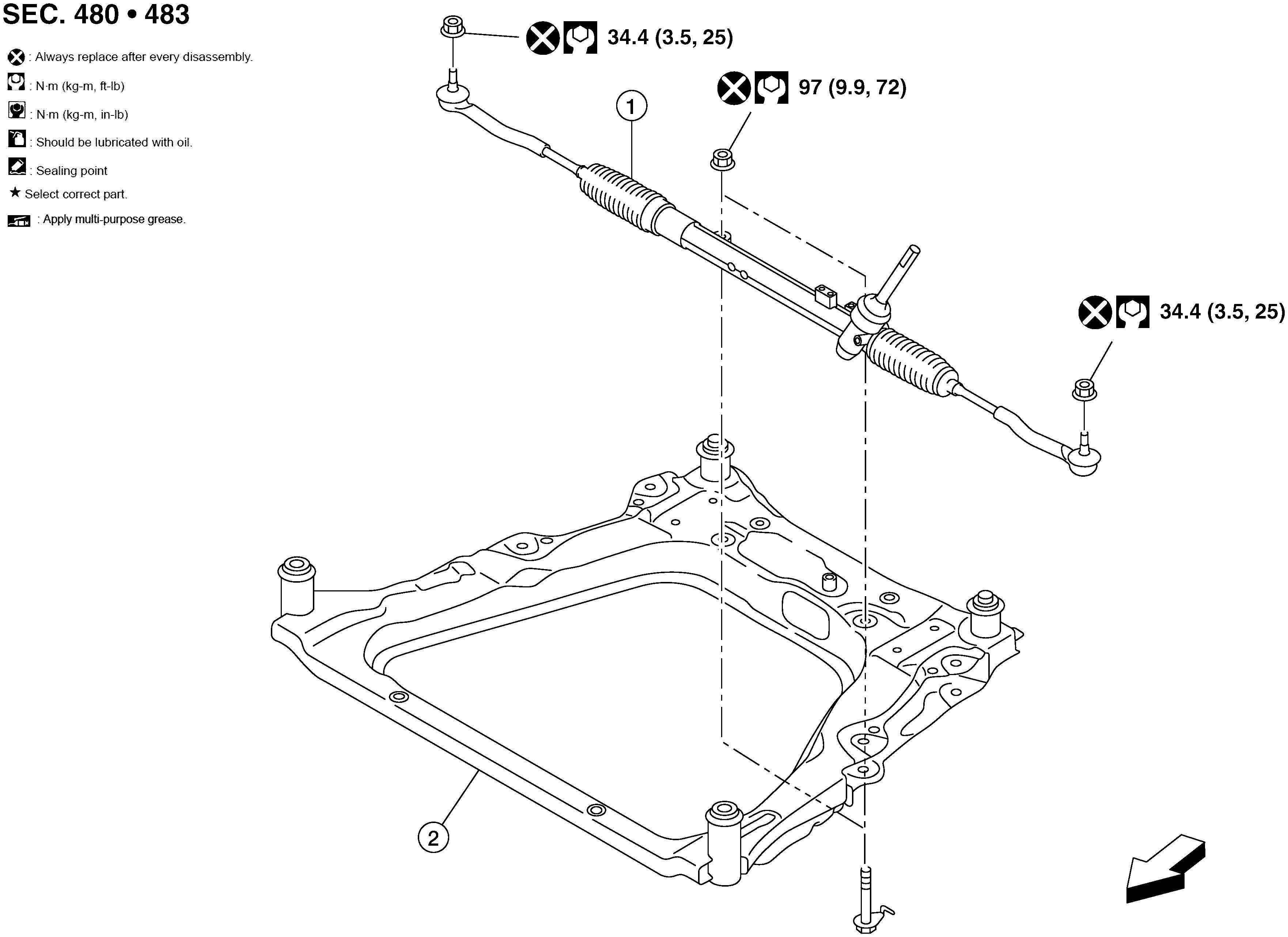

Fig 2: Steering Gear And Linkage Unit Removal And Installation MR16DDT With Torque Specifications
GNSAWGIA0491ZZ-491Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Front suspension member ARROW Front
