Removal And Installation - Boot: Installation

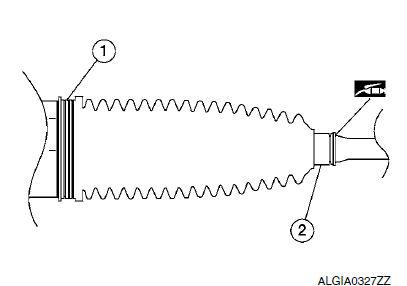

Install large end of boot (1) onto steering gear housing.
CAUTION:
Do not reuse boot.
Apply silicone grease between the inner socket and small end of boot (2). Install small end of boot to inner socket boot mounting groove.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
To prevent boot deformation or damage during toe-in adjustment, apply silicone grease between the inner socket and small end of boot.

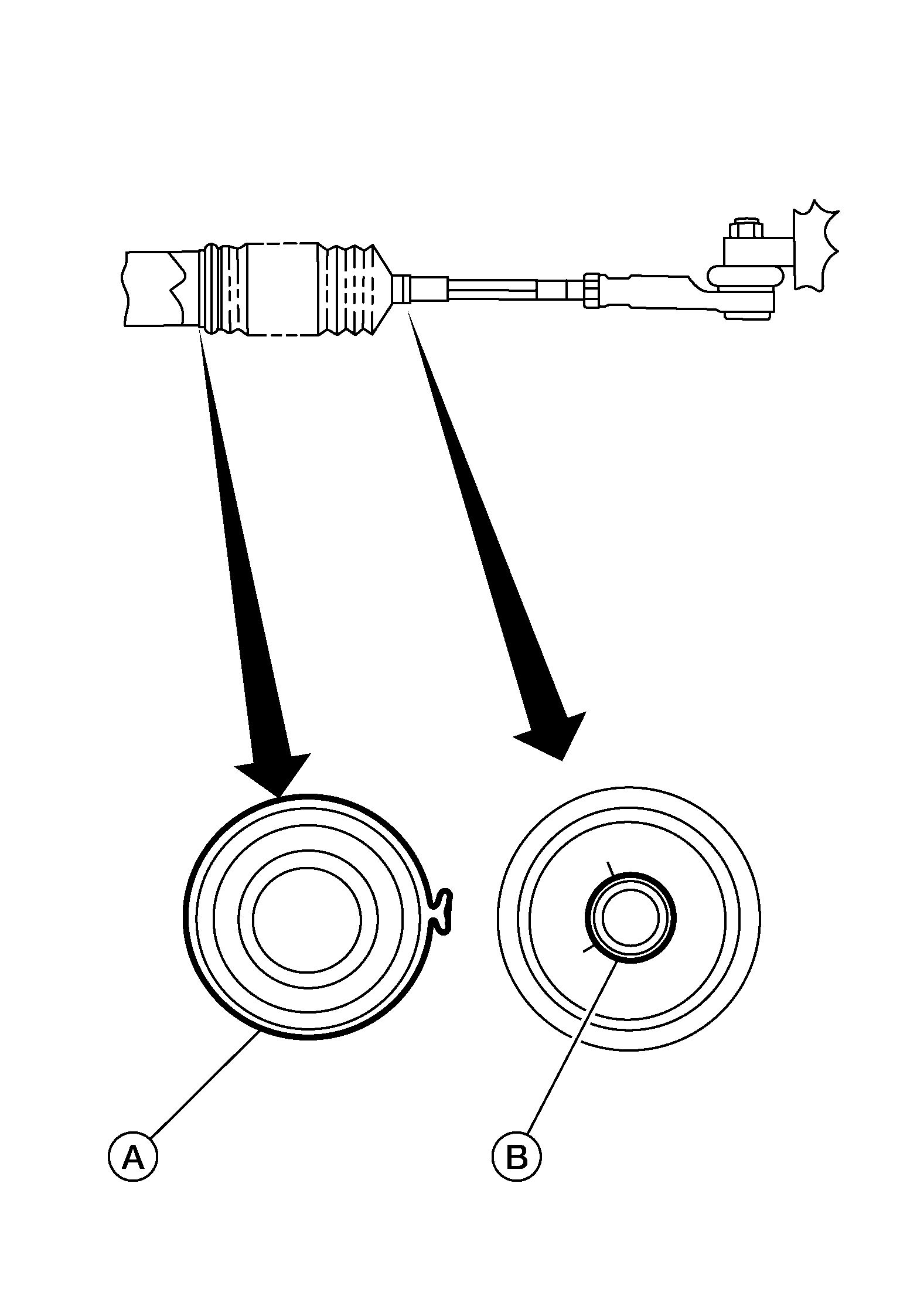

Install large boot clamp (A) using Tool.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Do not reuse large boot clamp.

Tool number : KV40107300 (J-51751)
Install small boot clamp (B).
CAUTION:
Do not reuse small boot clamp.
Partially thread the inner socket lock nut on the inner socket.
Install stabilizer connecting rod (LH/RH) to stabilizer bar. Refer to EXPLODED VIEW - MRA8DE or EXPLODED VIEW - MR16DDT .
Install the outer socket. Refer to REMOVAL AND INSTALLATION - OUTER SOCKET .
Check wheel alignment. Refer to INSPECTION .
Adjust the neutral position of the steering angle sensor. Refer to DESCRIPTION .
