Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

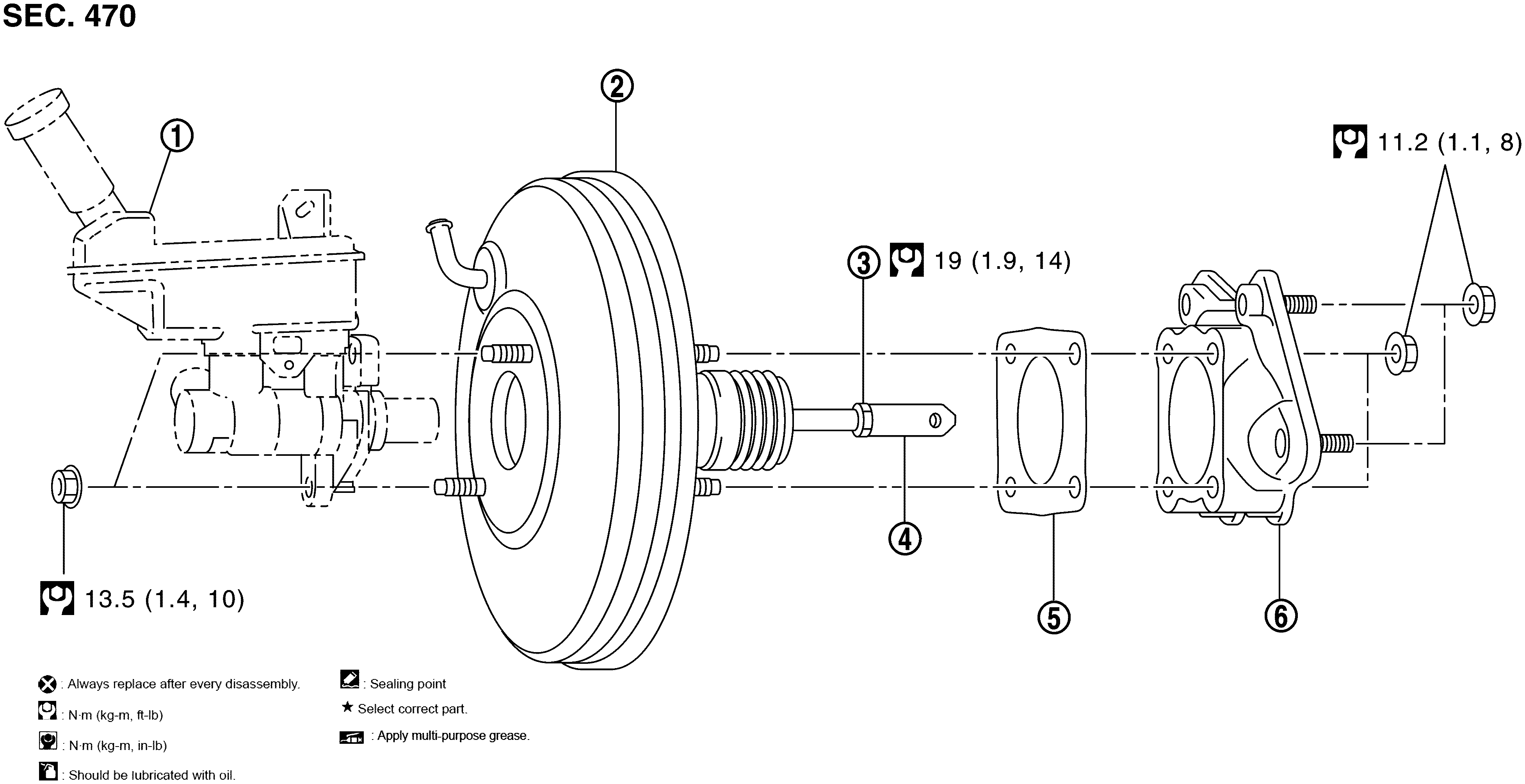

Fig 1: Exploded View Of Brake Booster With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master cylinder assembly	2.	Brake booster	3.	Lock nut
4.	Clevis	5.	Gasket	6.	Spacer
