System Diagram

WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

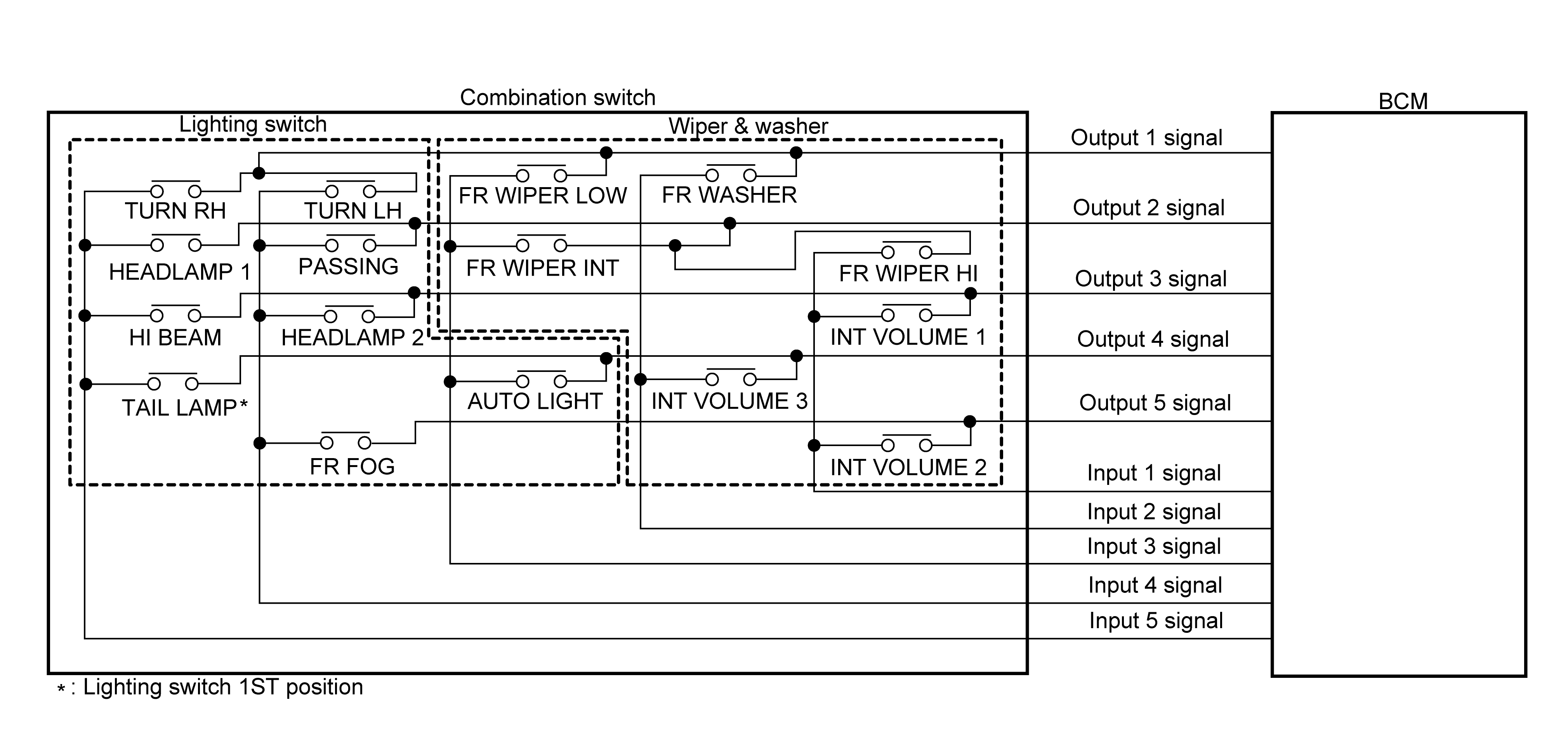

Fig 1: Combination Switch Reading -- System Diagram
G08991365Courtesy of NISSAN NORTH AMERICA, INC.
