Exploded View

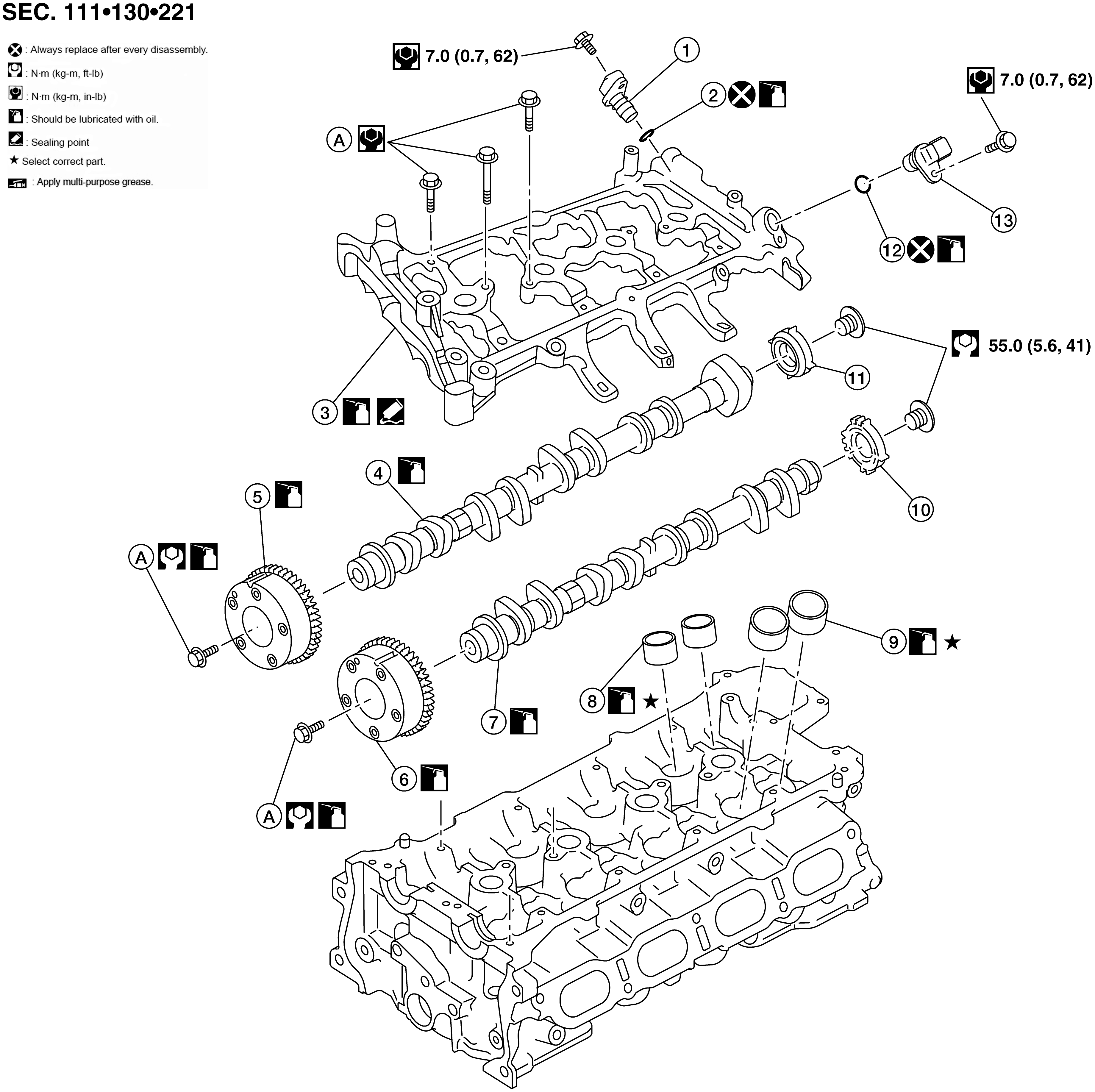

Fig 1: Camshaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Camshaft position sensor (EXH)	2.	O-ring	3.	Camshaft bracket
4.	Camshaft (EXH)	5.	Camshaft sprocket (EXH)	6.	Camshaft sprocket (INT)
7.	Camshaft (INT)	8.	Valve lifter (EXH)	9.	Valve lifter (INT)
10.	Signal plate (INT)	11.	Signal plate (EXH)	12.	O-ring
13.	Camshaft position sensor (INT)	A.	Refer to INSTALLATION
