Exploded View - MRA8DE

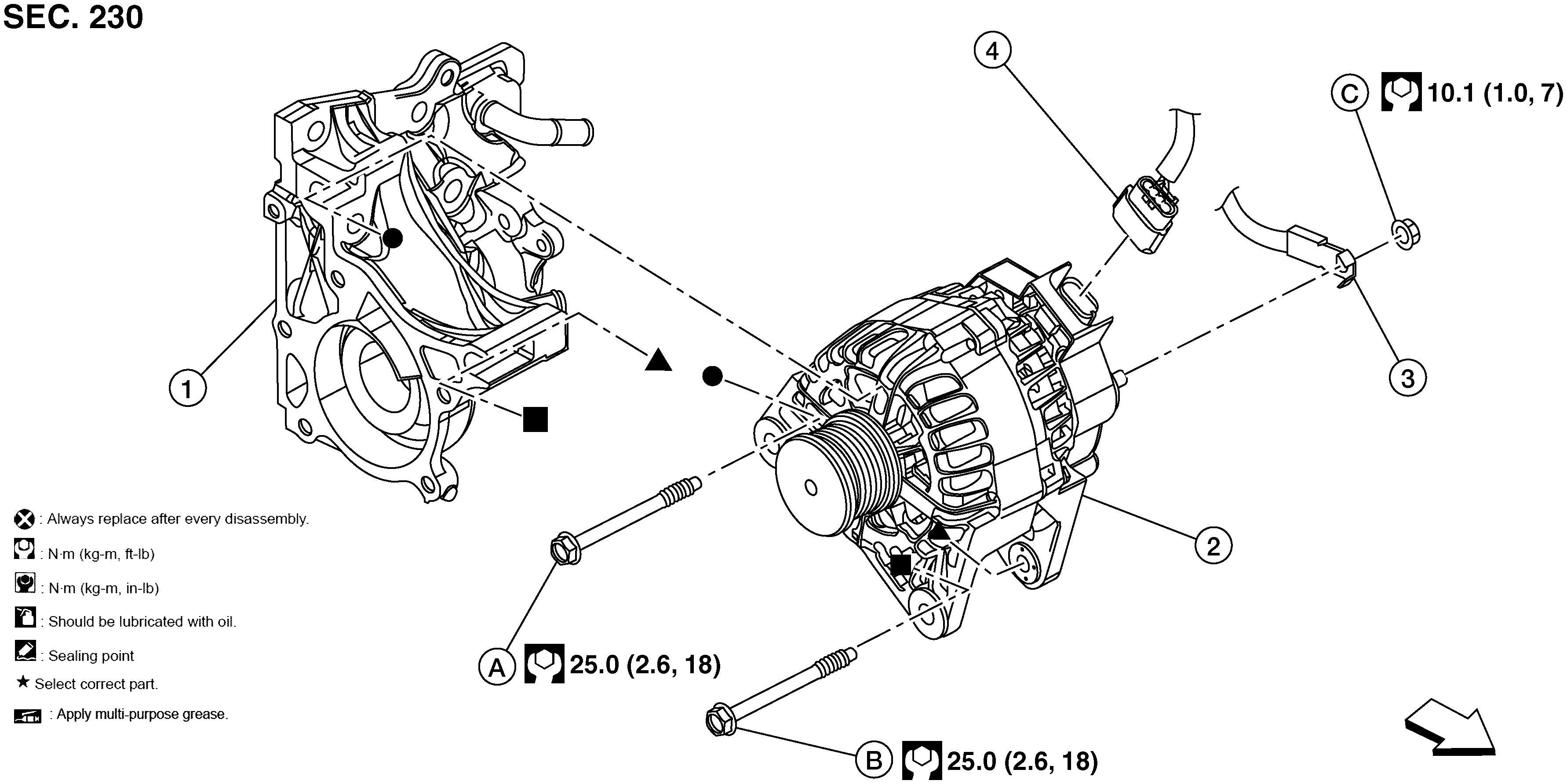

Fig 1: Generator MRA8DE With Torque Specifications
GNSAWMIA1904ZZ-904ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Thermostat housing 2. Generator 3. "B" terminal harness
4. Harness connector
A. Generator bolt (upper) B. Generator bolt (lower) C. "B" terminal nut
ARROW Front
