Brake Control System: Wiring Diagram

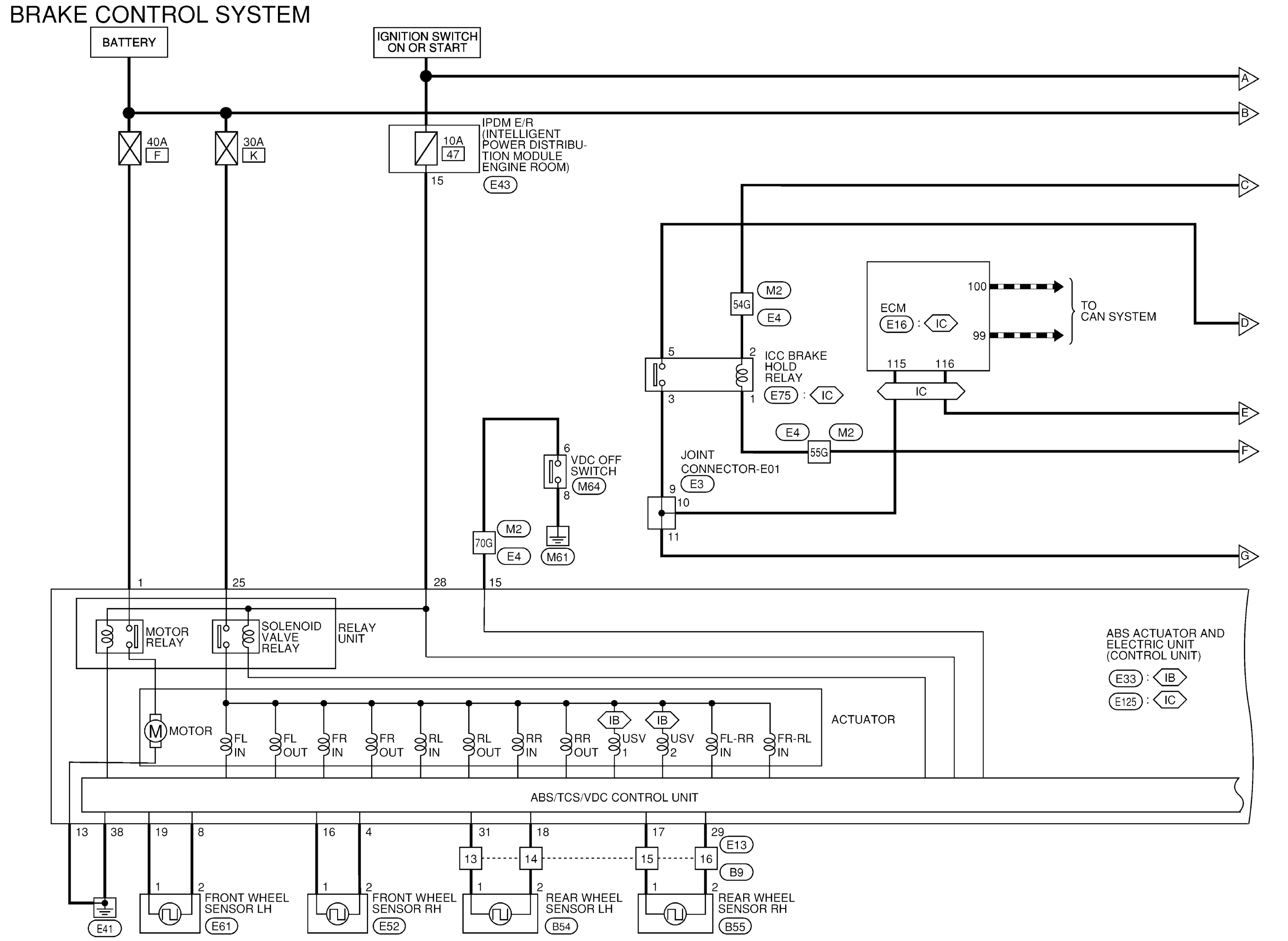

GNSAAFWA0274GB-274

Courtesy of NISSAN NORTH AMERICA, INC.

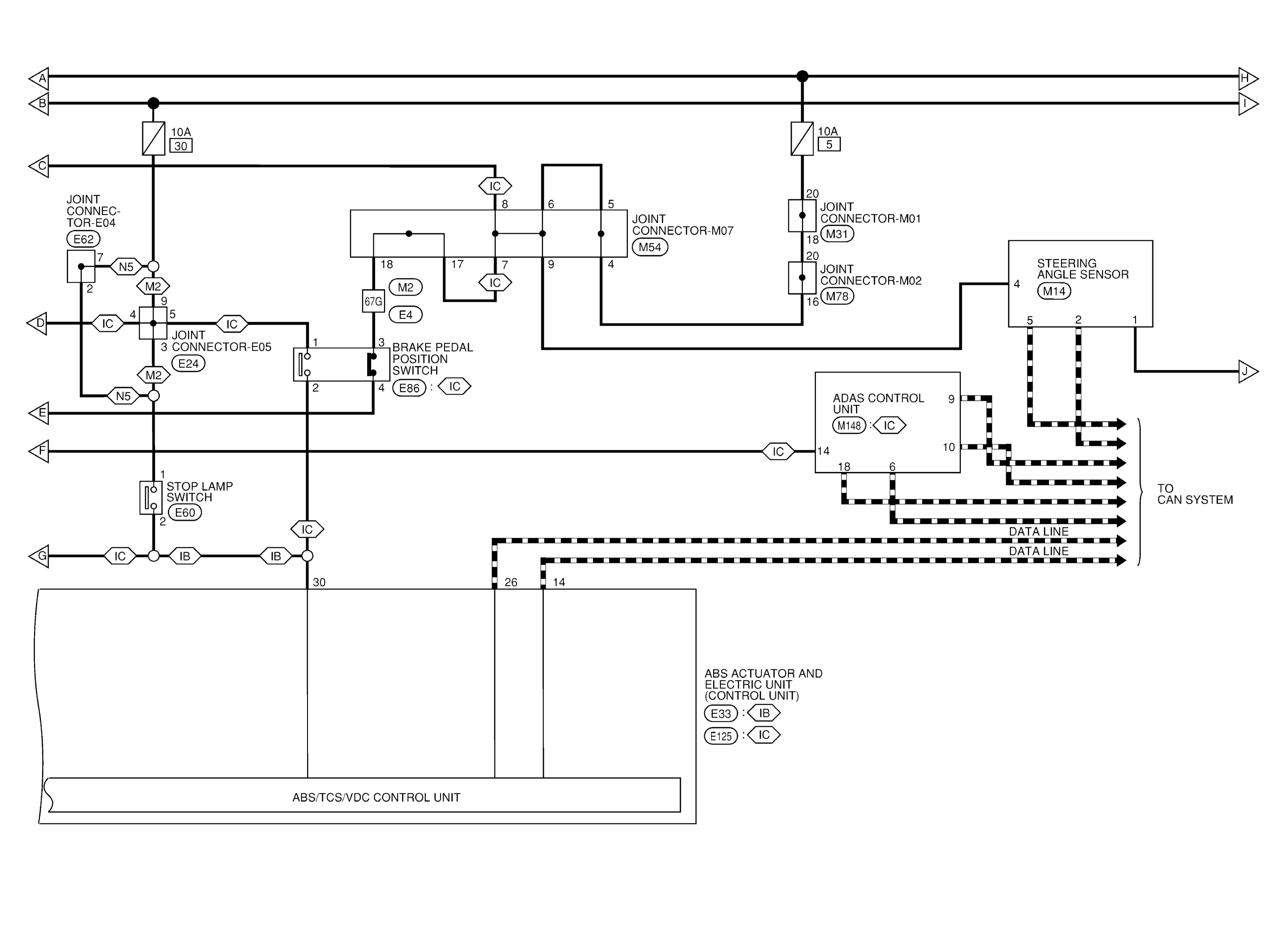

GNSAAFWA0275GB-275

Courtesy of NISSAN NORTH AMERICA, INC.

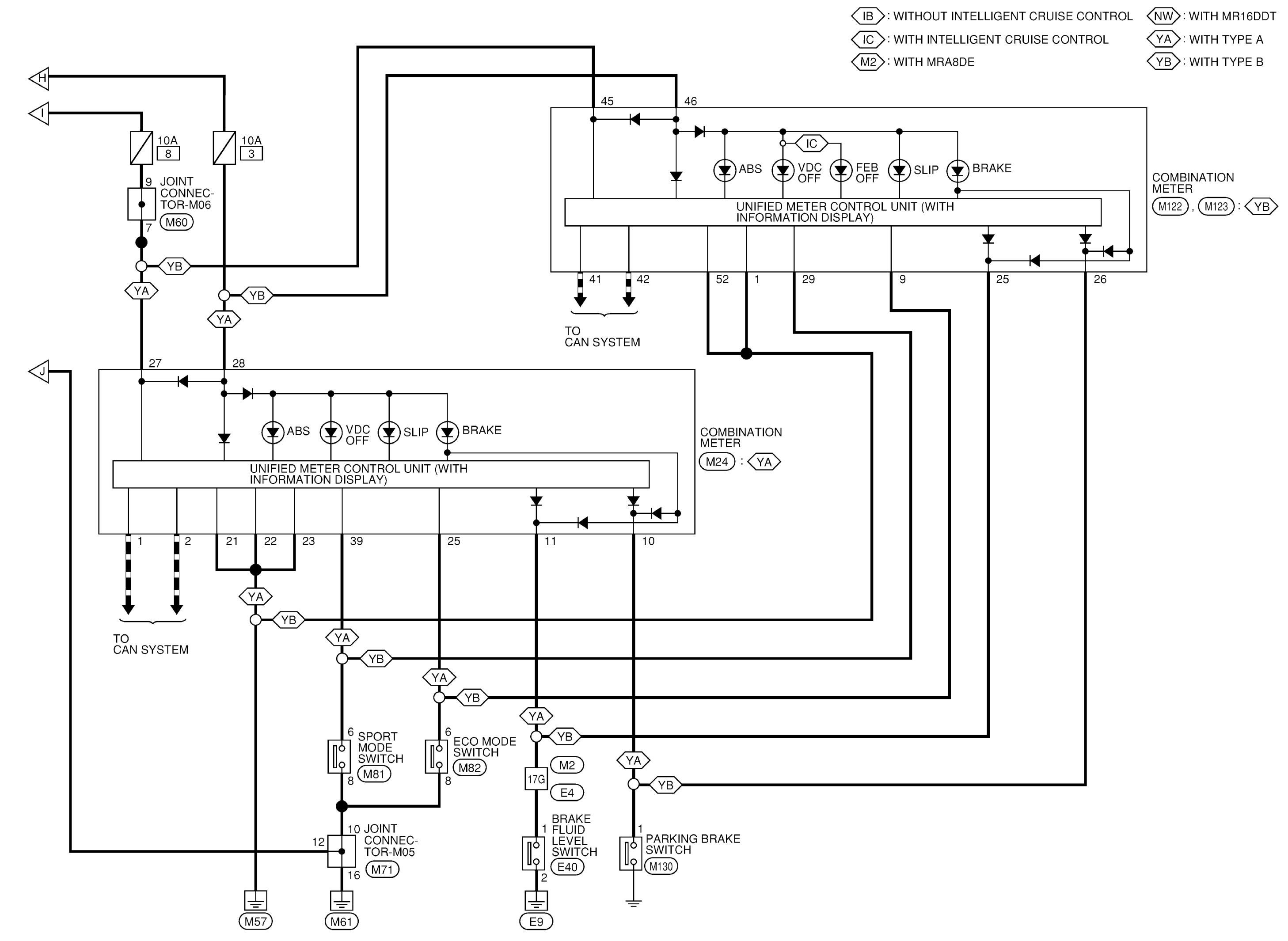

GNSAAFWA0276GB-276

Courtesy of NISSAN NORTH AMERICA, INC.

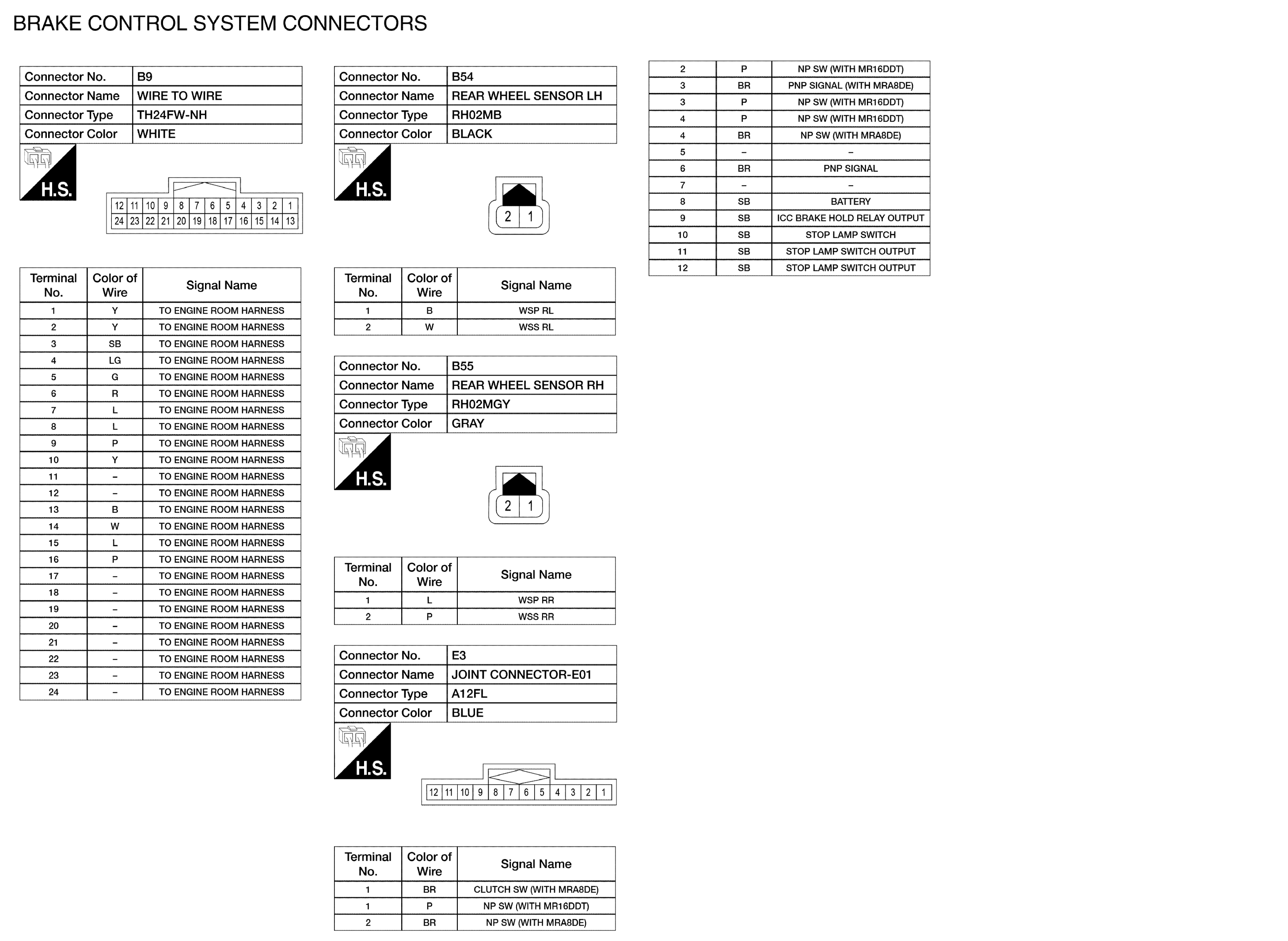

GNSAAFIA0683GB-683

Courtesy of NISSAN NORTH AMERICA, INC.

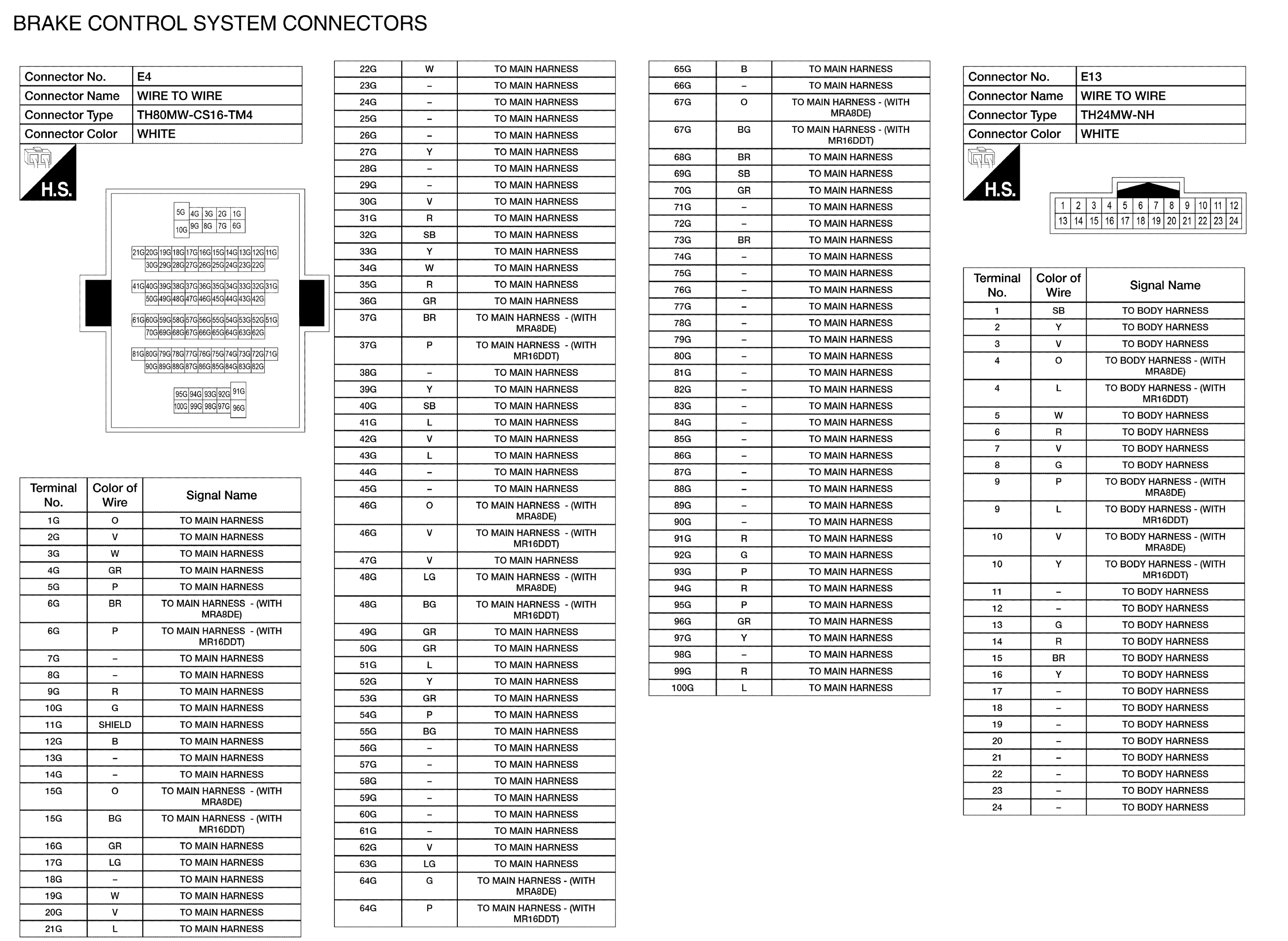

GNSAAFIA0684GB-684

Courtesy of NISSAN NORTH AMERICA, INC.

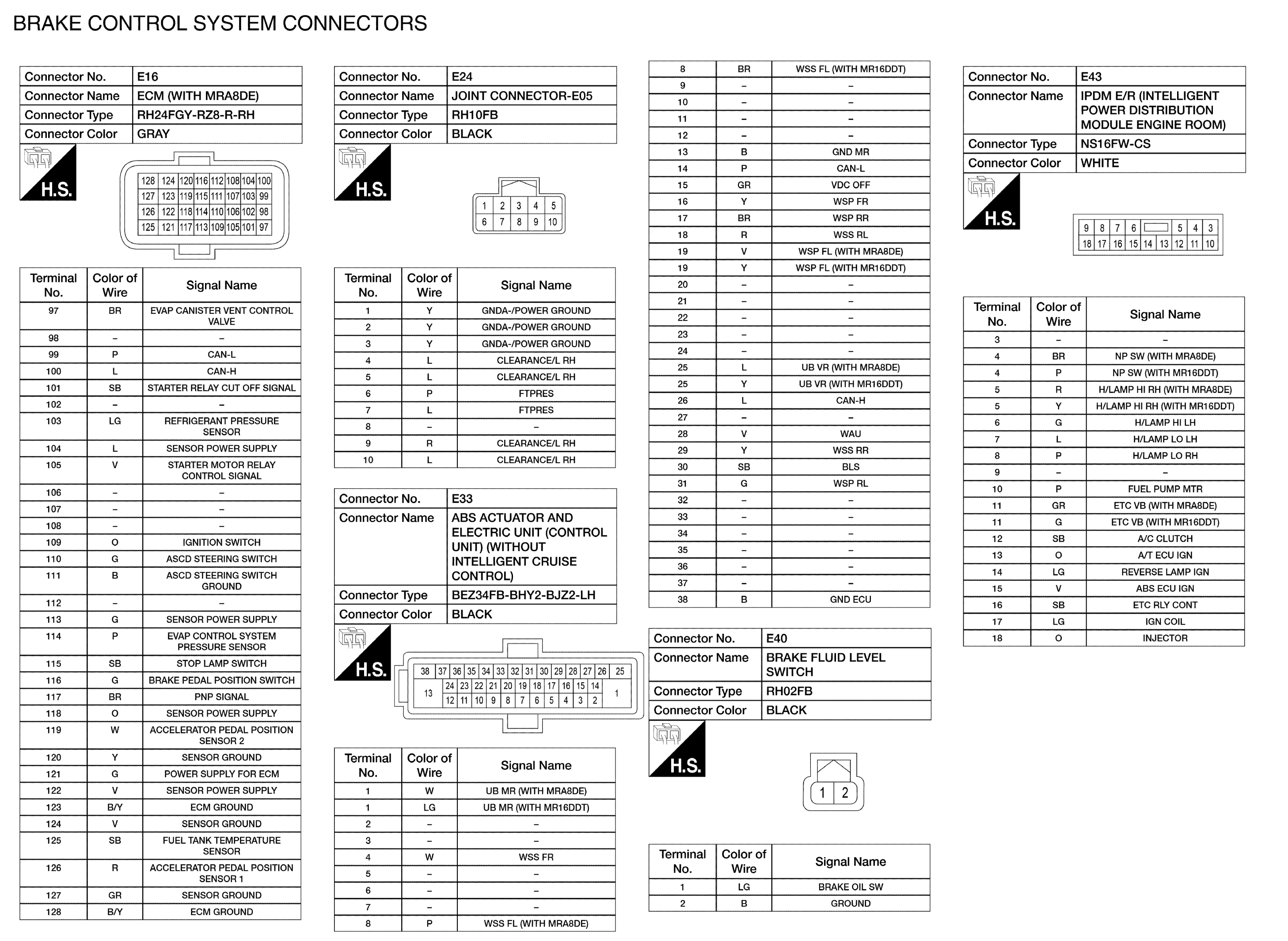

GNSAAFIA0685GB-685

Courtesy of NISSAN NORTH AMERICA, INC.

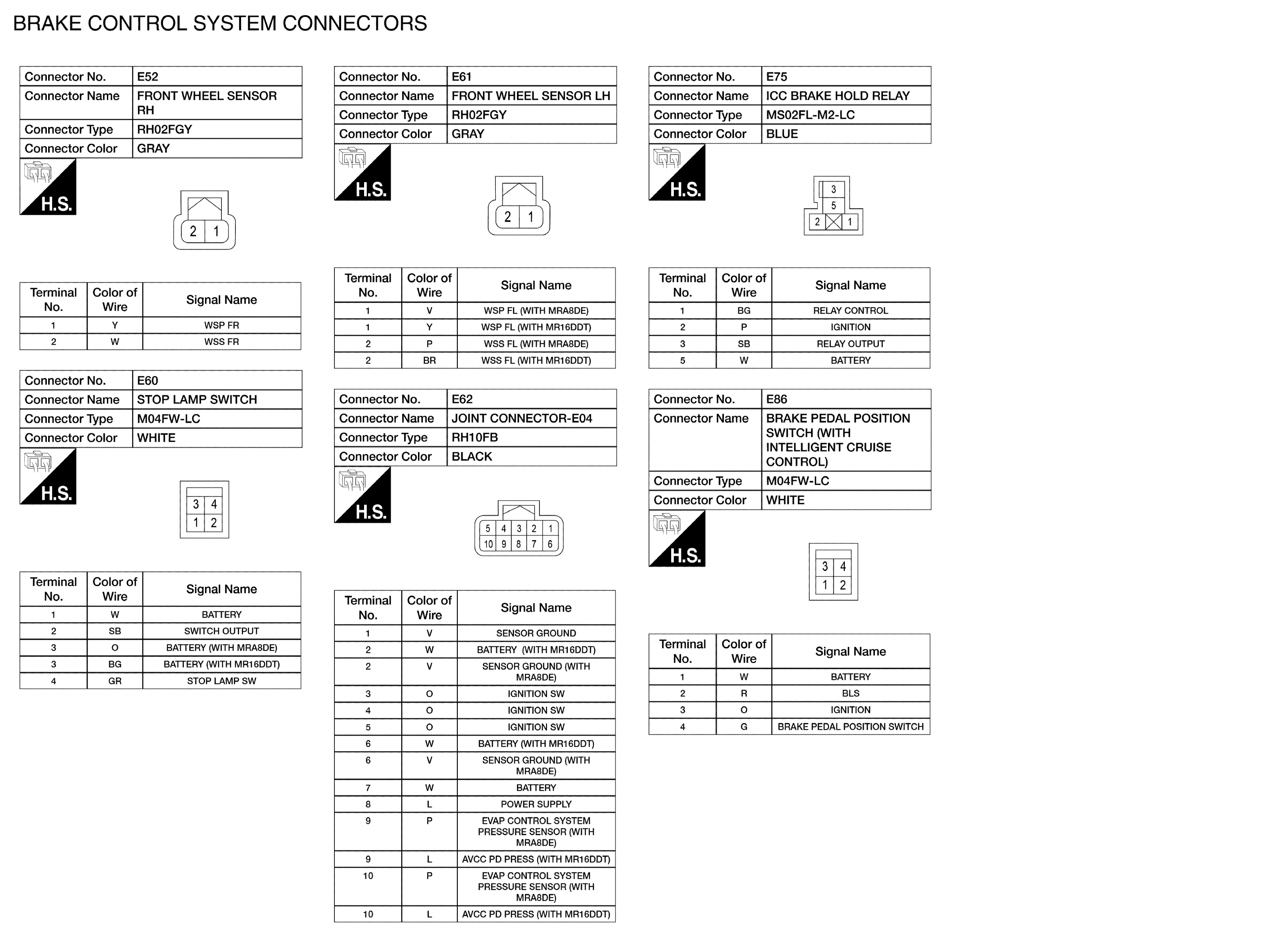

GNSAAFIA0686GB-686

Courtesy of NISSAN NORTH AMERICA, INC.

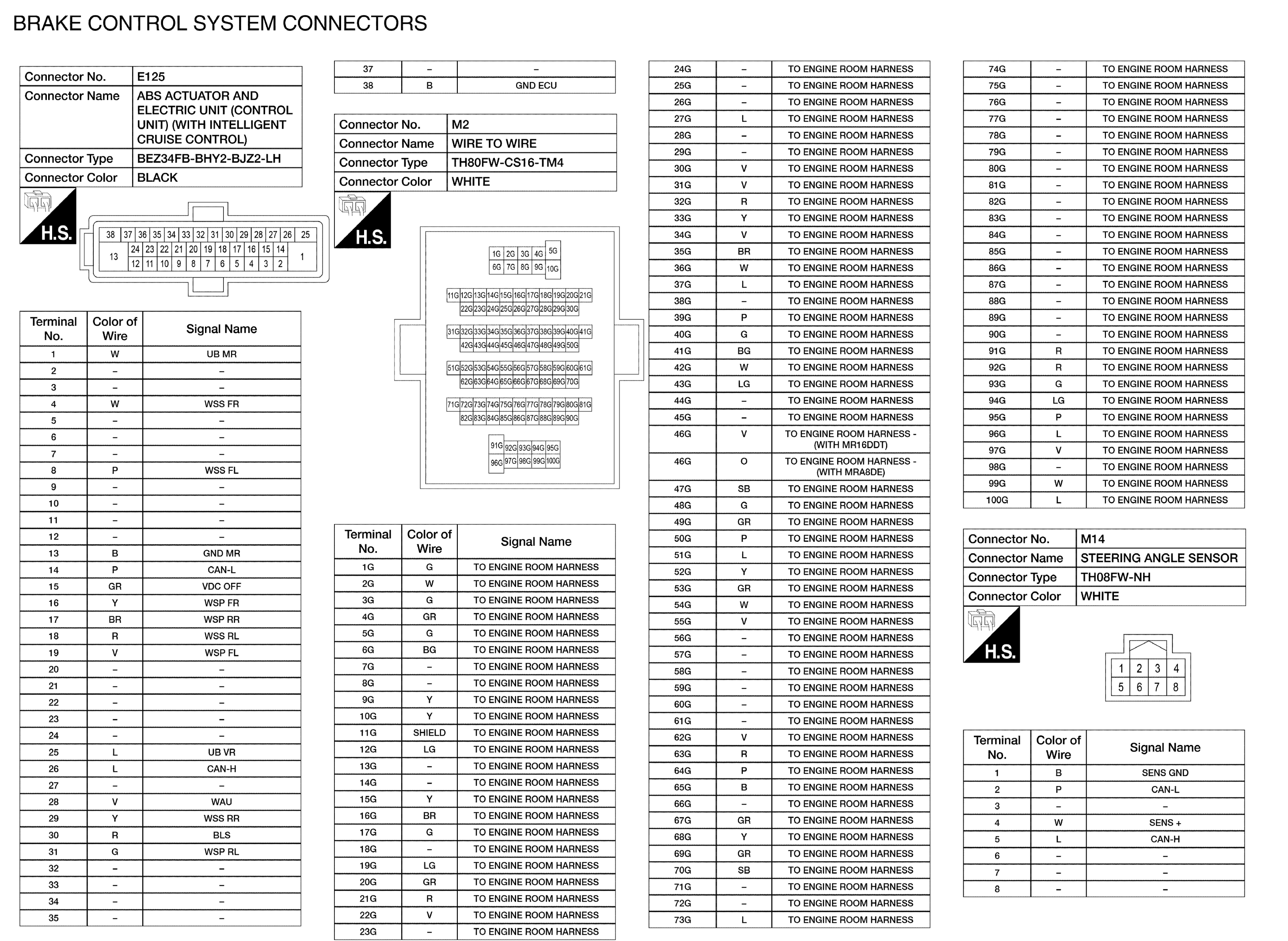

GNSAAFIA0687GB-687

Courtesy of NISSAN NORTH AMERICA, INC.

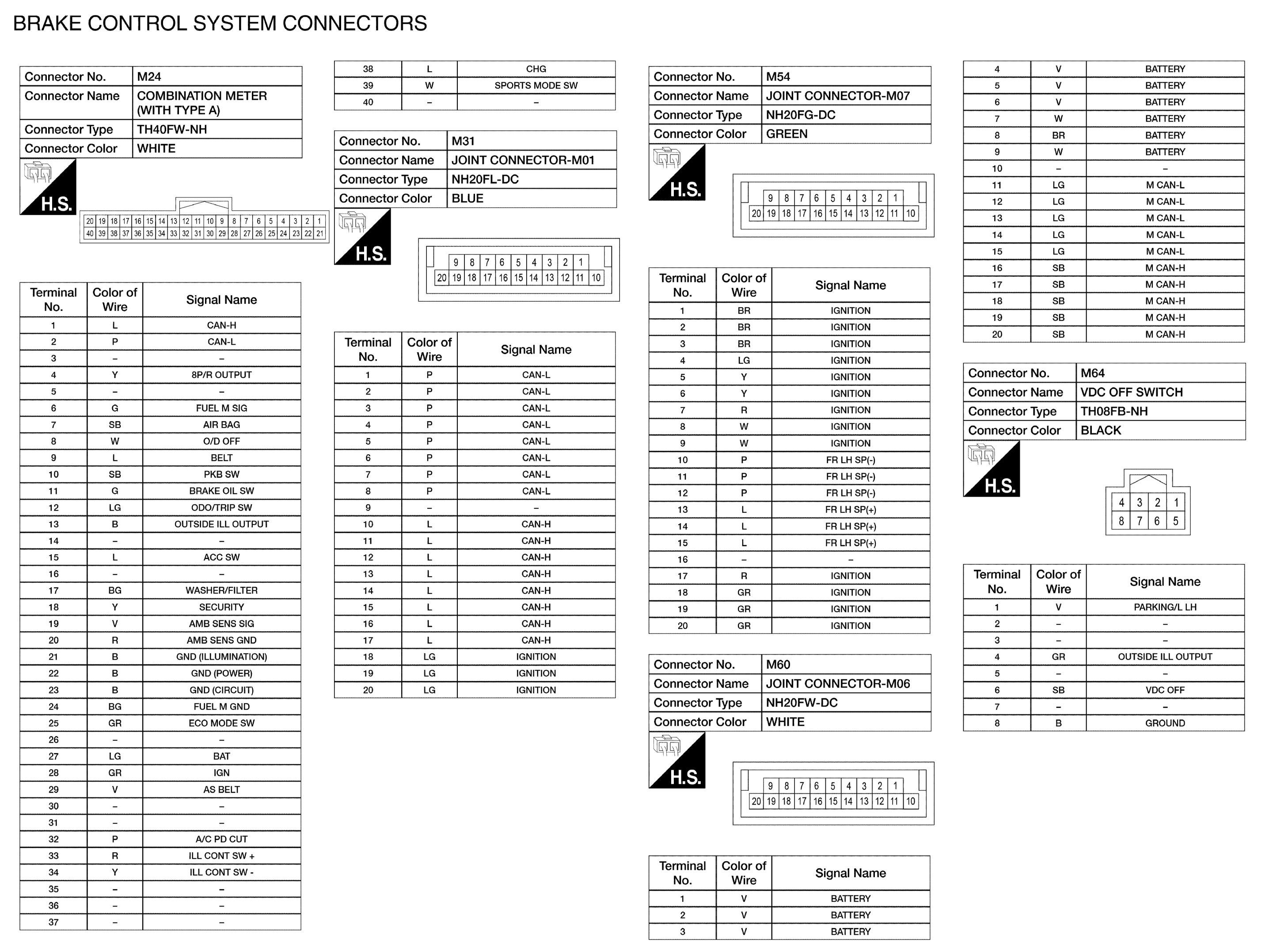

GNSAAFIA0688GB-688

Courtesy of NISSAN NORTH AMERICA, INC.

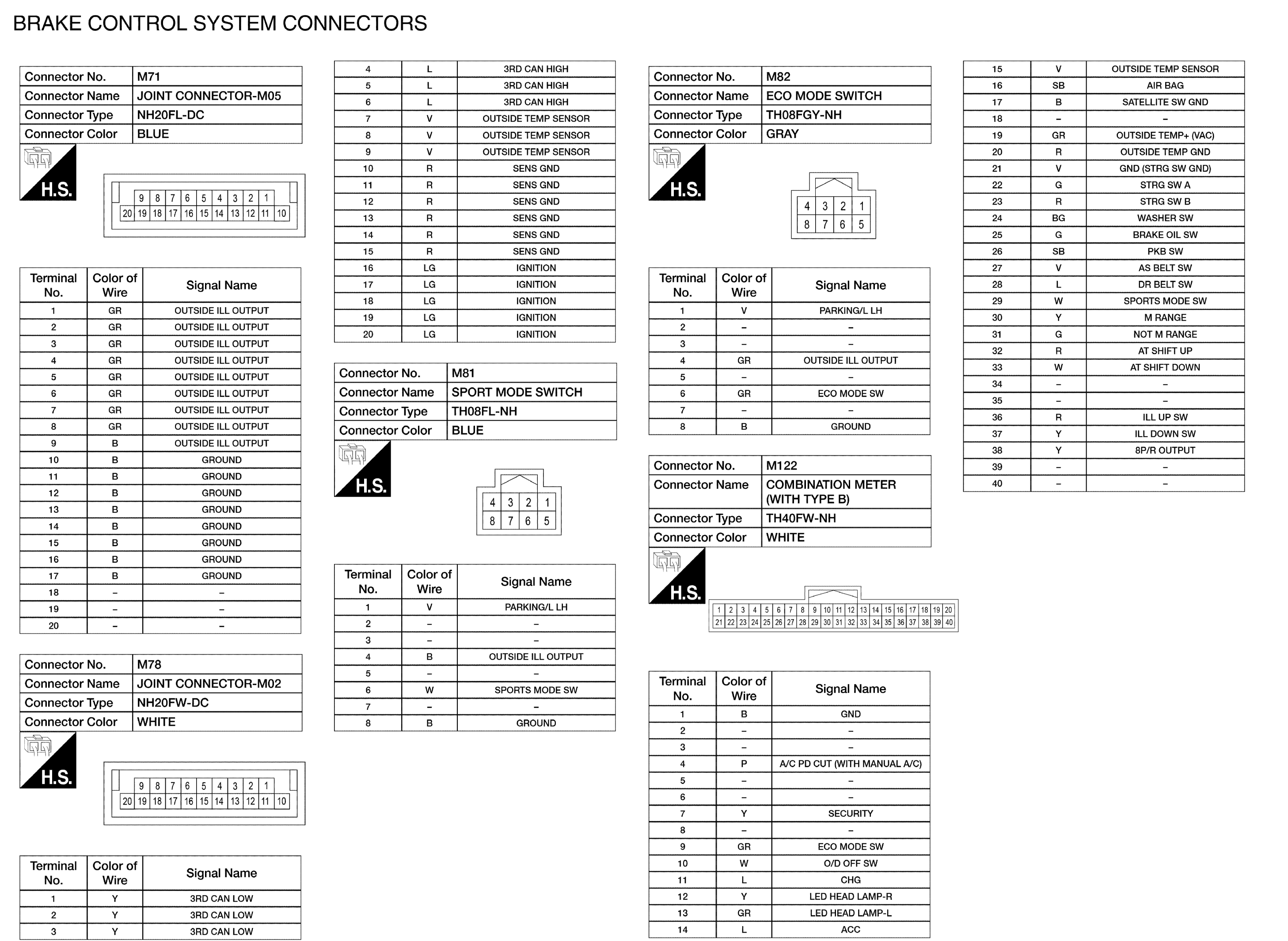

GNSAAFIA0689GB-689

Courtesy of NISSAN NORTH AMERICA, INC.

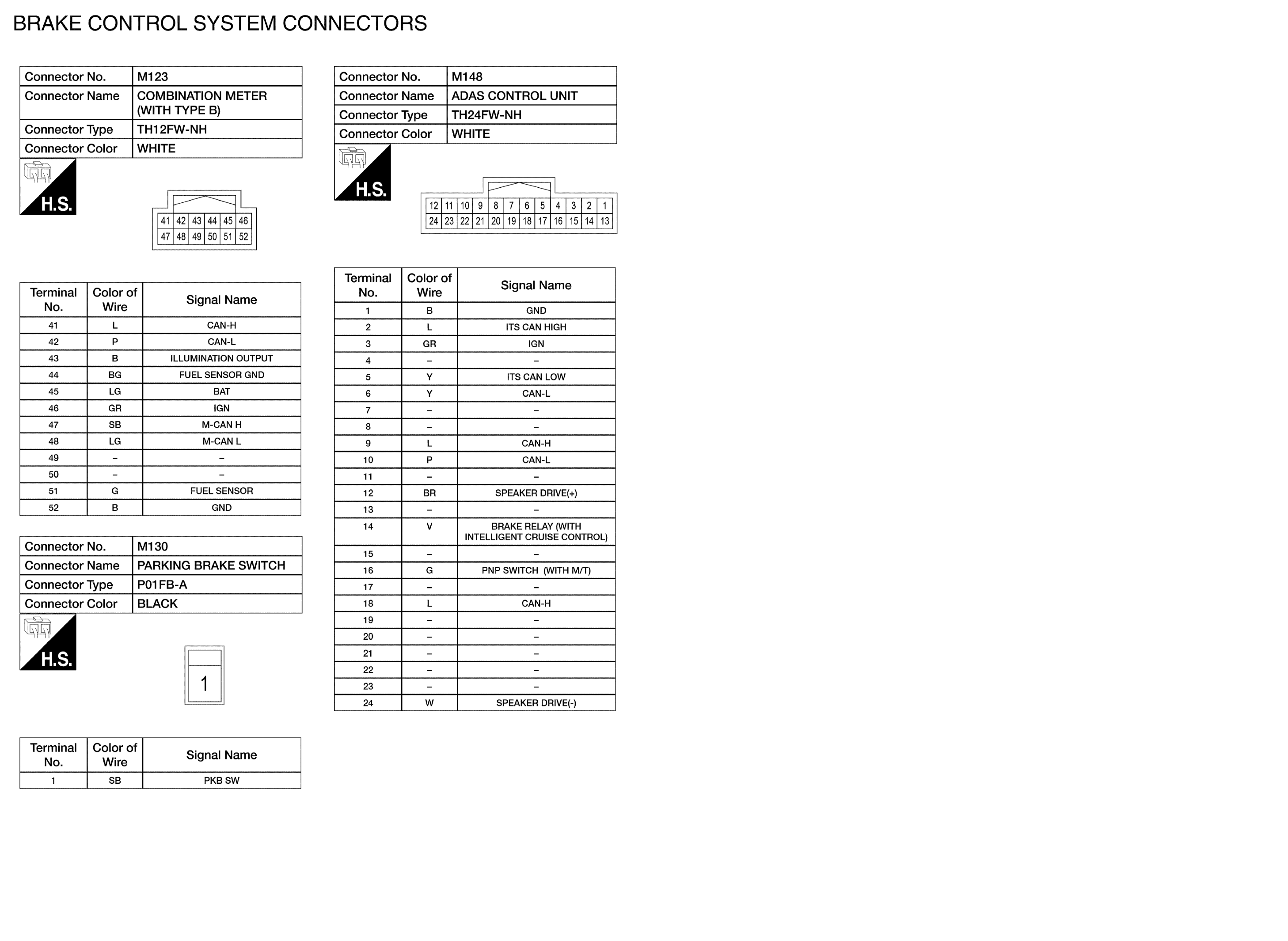

GNSAAFIA0690GB-690

Courtesy of NISSAN NORTH AMERICA, INC.
