Parking Brake Control
>>
Exploded View
Exploded View

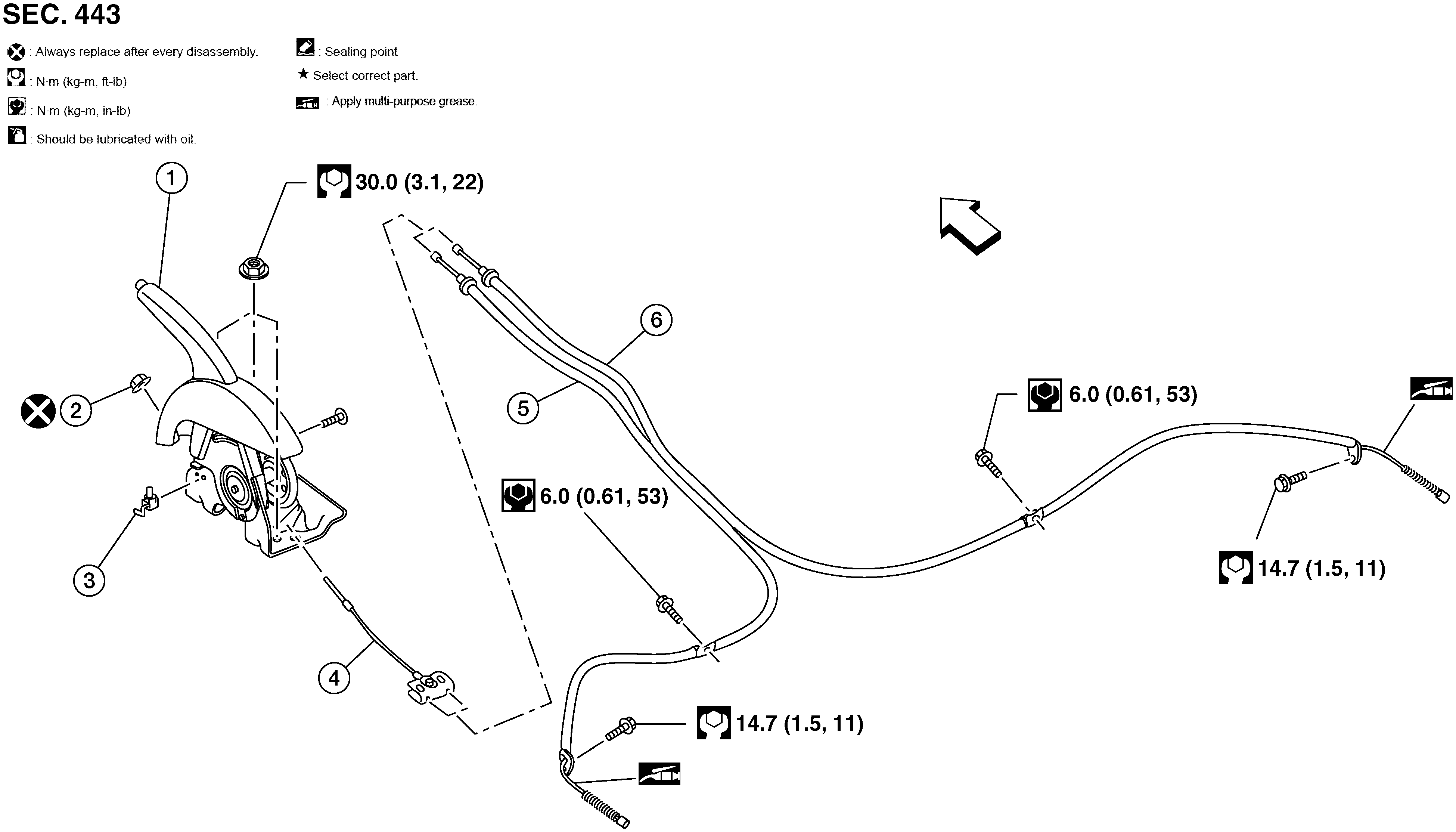

Fig 1: Parking Brake Control With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Parking brake lever assembly
2.
Adjusting nut
3.
Parking brake switch
4.
Front parking brake cable
5.
Rear parking brake cable (LH)
6.
Rear parking brake cable (RH)
Front
