Exploded View

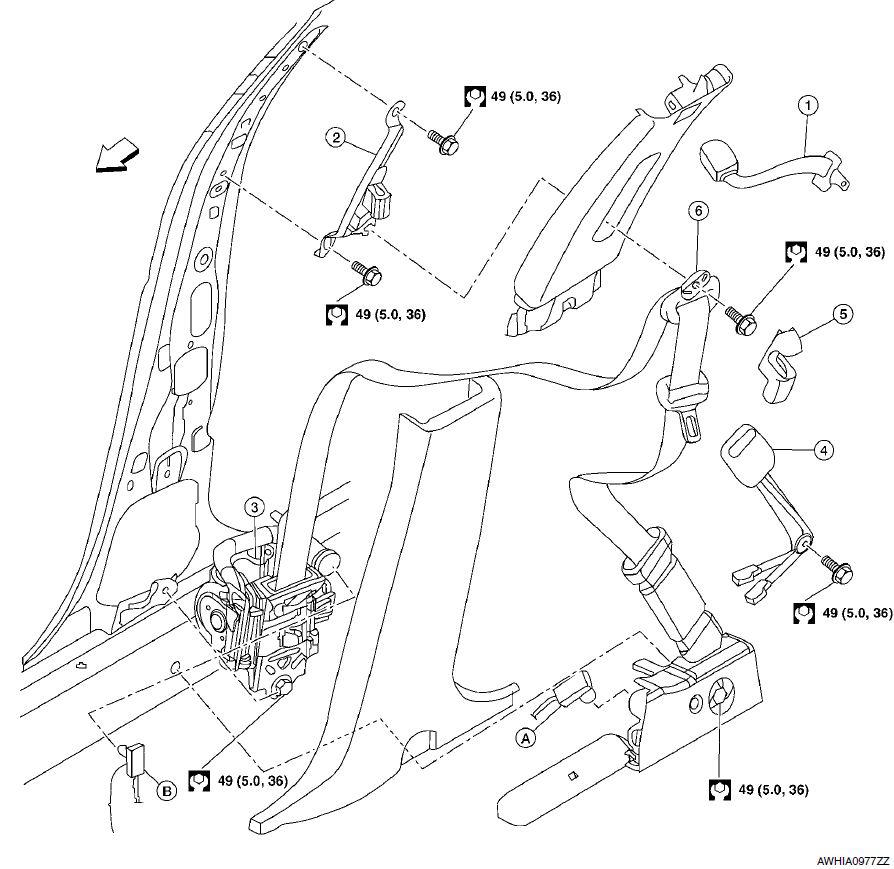

Fig 1: Front Seat Belt With Torque Specifications
G00580842Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat belt extender 2. Seat belt height adjuster 3. Seat belt retractor
4. Seat belt buckle 5. Seat belt height adjuster cover 6. D-ring anchor
A. Lap belt pre-tensioner harness connector B. Shoulder belt pre-tensioner harness connector ARROW Front
NOTE:

RH side shown; LH side similar.
