Disassembly And Assembly: Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
- Smooth out all wrinkles during assembly.
- Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
- After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS FINAL CHECK .
Assembly is in the reverse order of disassembly.
CAUTION:
- Smooth out all wrinkles during assembly.
- Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
- After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
- If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS FINAL CHECK .

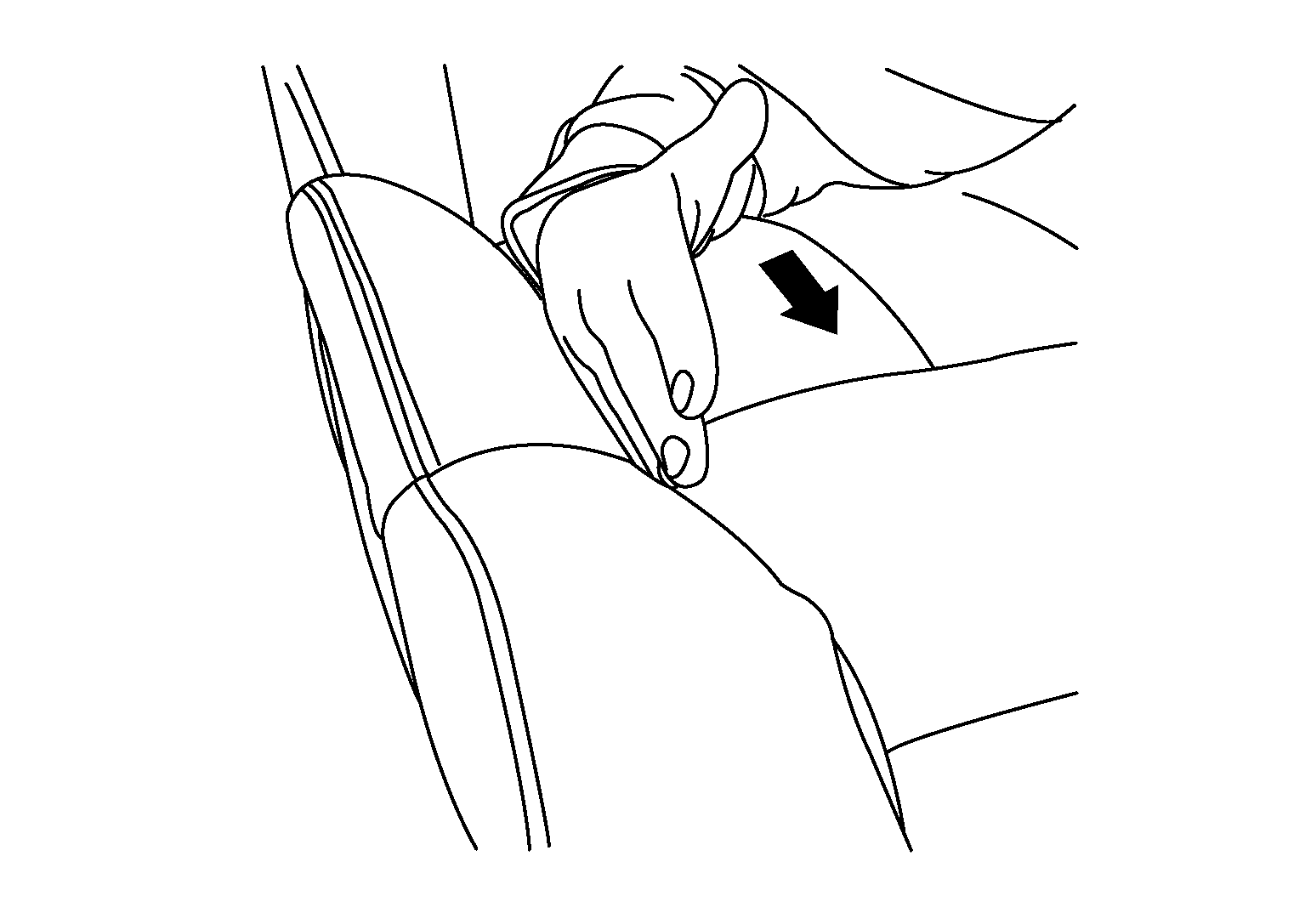

- When installing the seat cushion trim, firmly push down while sliding your hand along the seams as shown, below (
) to ensure the hook fasteners below the seat cushion trim are fastened properly.
- Install new hog rings on the seat cushion trim in original positions.
Use only one hog ring in each designated location.
Ensure hog rings are correctly fastened around both the seat cushion trim and seat cushion pad wires.
Use NISSAN standard hog rings and tools to assemble.
