Section 16 (Security Control System (Hybrid))
>>
System Description
>>
System
>>
Intelligent Key System/Engine Start Function
>>

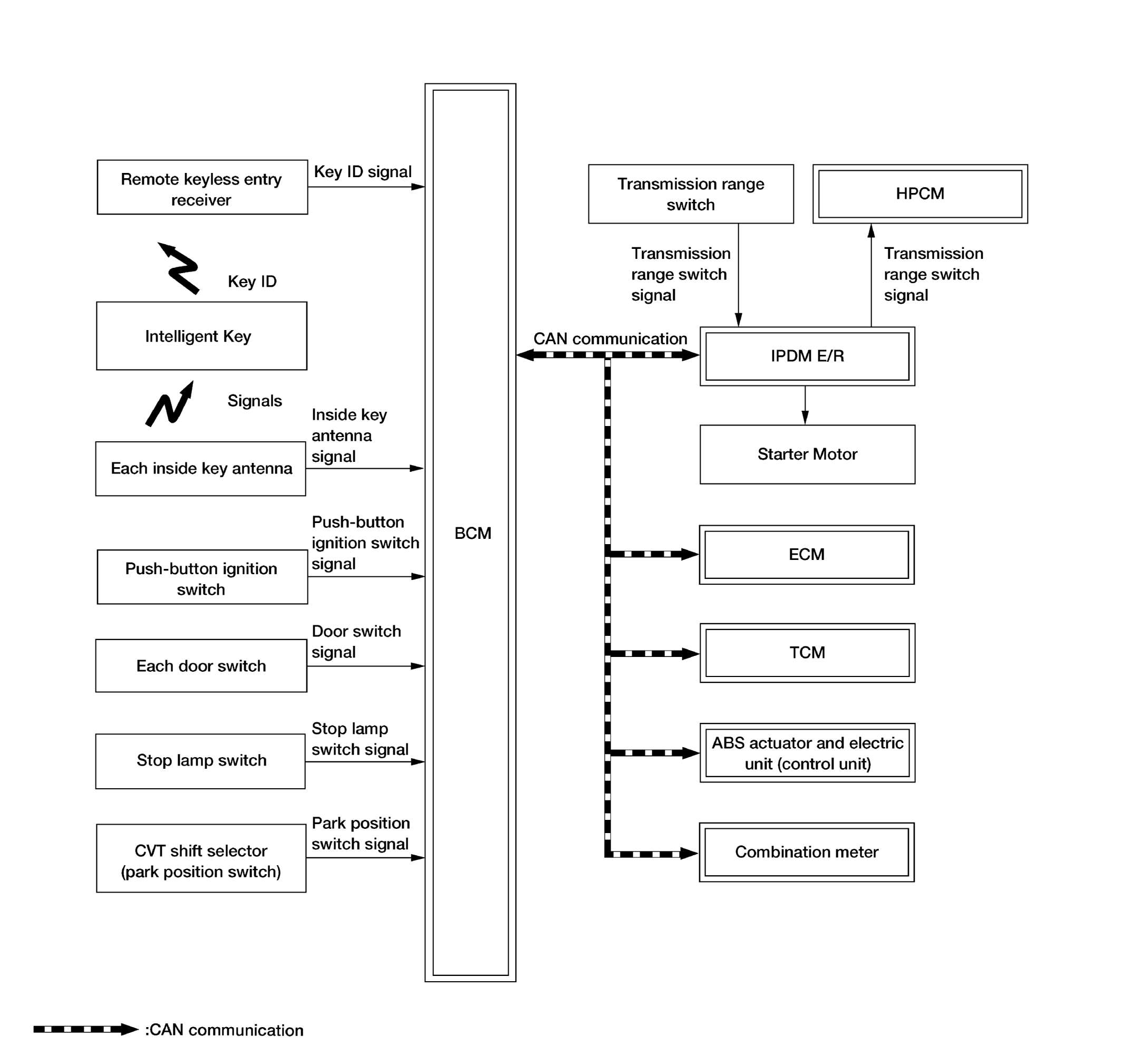

System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
