Component Location

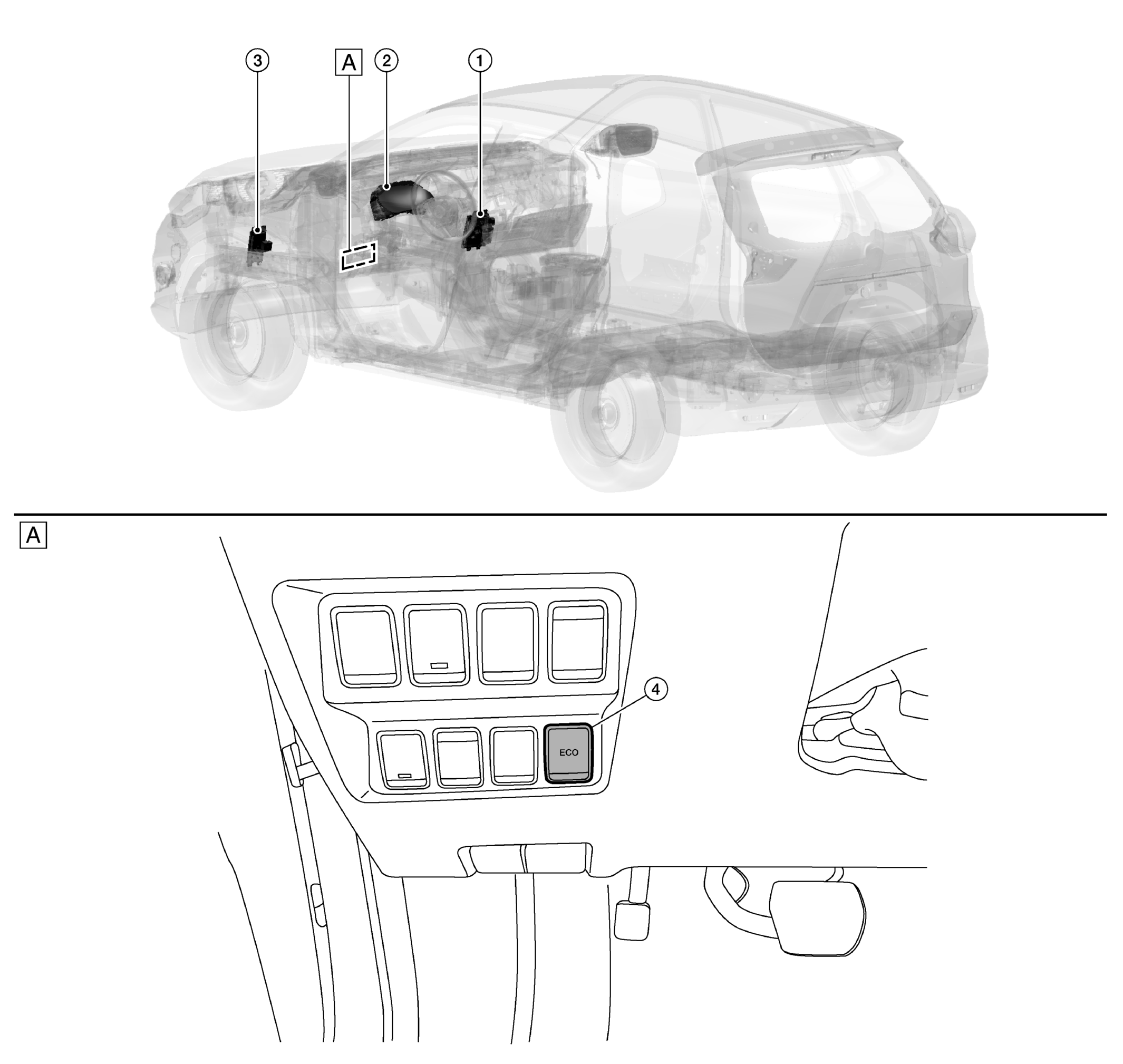

GNSALOIA0536ZZ-536Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 HPCM
  • The HPCM receives the following signal via CAN communications from the TCM.
    • ECO mode signal
  • The HPCM transmits the following signal via CAN communications to the combination meter.
    • ECO mode indicator signal
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 Combination meter
  • The combination meter transmits the following signal via CAN communications to the TCM.
    • ECO mode switch signal
  • The combination meter receives the following signal via CAN communications from the HPCM.
    • ECO mode indicator signal
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-3 TCM
  • The TCM receives the following signal via CAN communications from the combination meter.
    • ECO mode switch signal
  • The TCM transmits the following signal via CAN communications to the HPCM.
    • ECO mode signal
Refer to COMPONENT LOCATION for detailed installation location.
WHITE-4 ECO mode switch Refer to ECO MODE SWITCH .
