Disassembly And Assembly: Disassembly

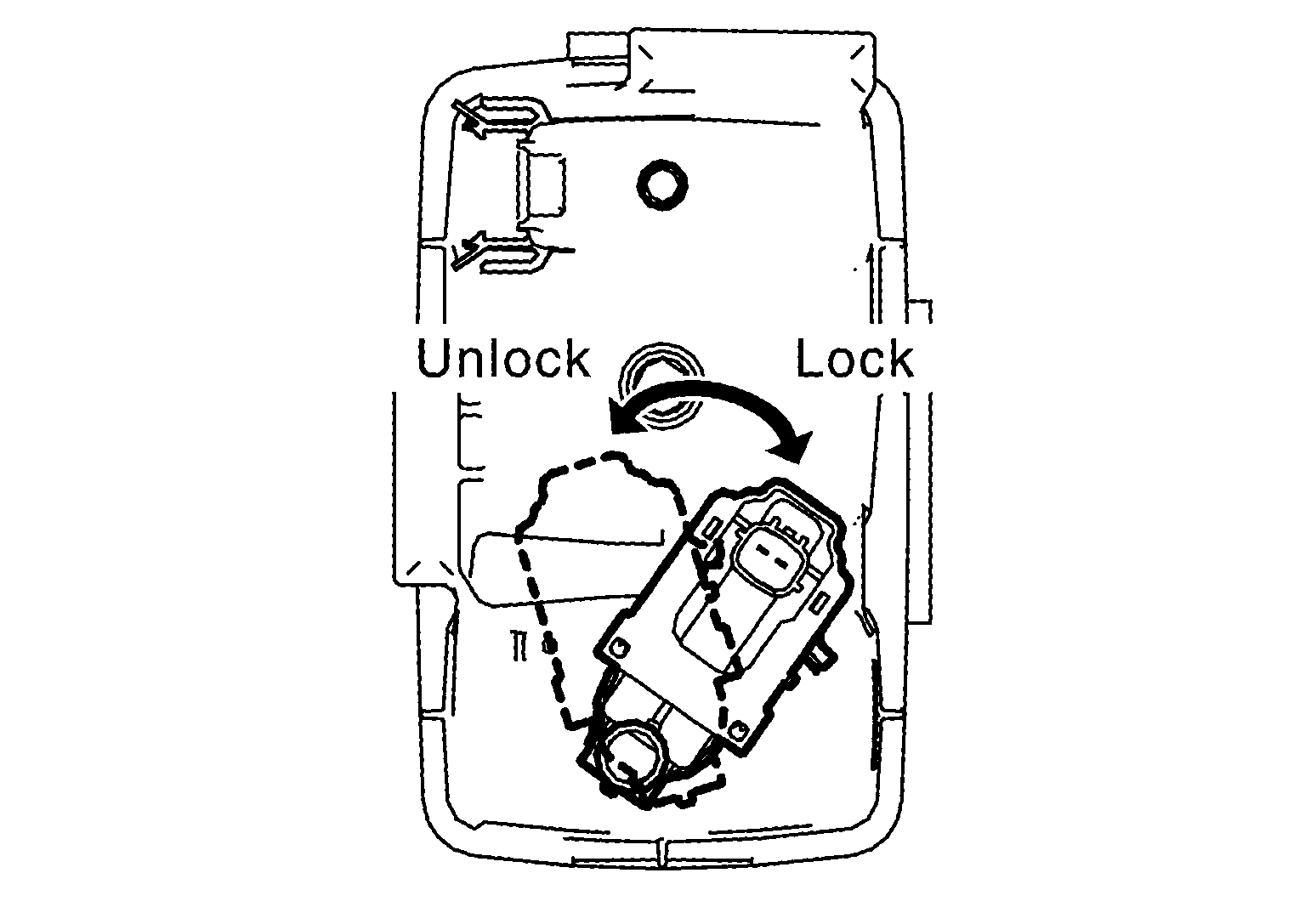

  1. Disengage the pawl and turn EVAP canister vent control valve counterclockwise.
    G07052713Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the EVAP canister vent control valve.
  3. Remove EVAP control pressure sensor.
