When Steering Wheel Is Rotated To The Right

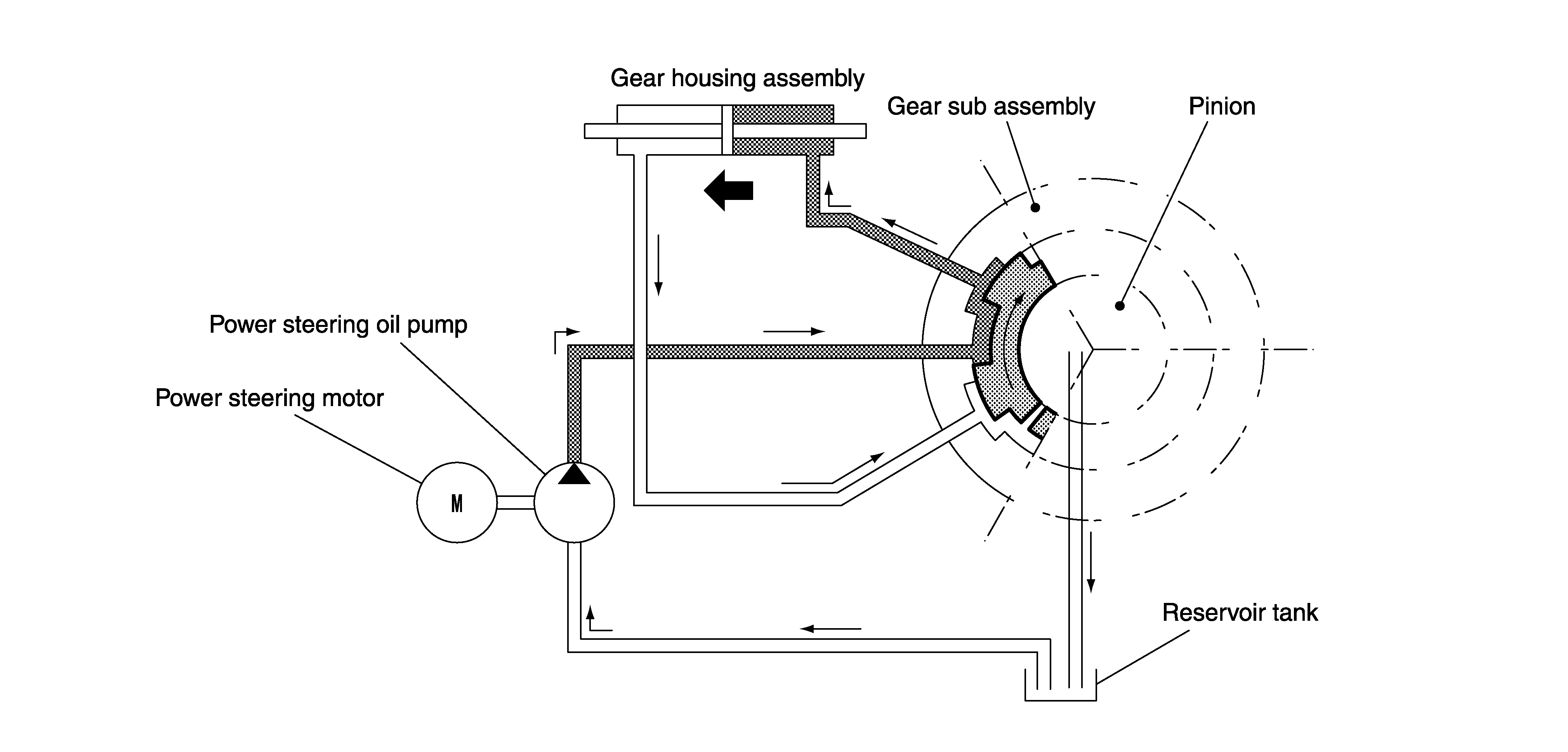

G07053010Courtesy of NISSAN NORTH AMERICA, INC.

The hydraulic routes open from power steering pump to gear housing right side and from gear housing left side to reservoir tank, providing left direction assist force to the rack.
