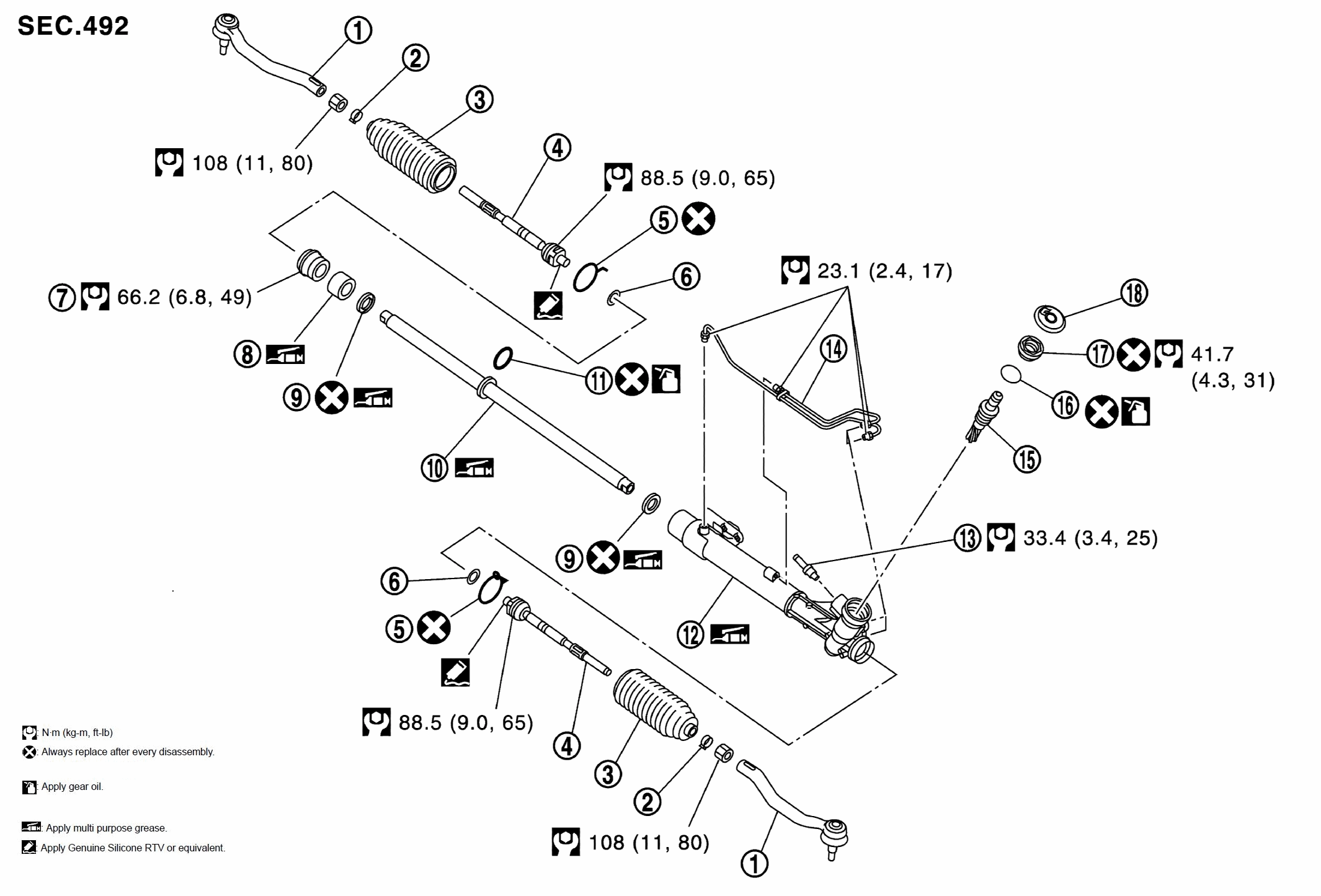

| 1. |
Outer socket |
2. |
Boot clamp |
3. |
Boot |
| 4. |
Inner socket |
5. |
Boot clamp (stainless wire) |
6. |
Spacer |
| 7. |
End cover assembly |
8. |
Rack spacer |
9. |
Rack oil seal |
| 10. |
Rack assembly |
11. |
O-ring |
12. |
Gear housing assembly |
| 13. |
Low pressure piping |
14. |
Cylinder tubes |
15. |
Gear-sub assembly |
| 16. |
O-ring |
17. |
Rear cover |
18. |
Rear cover cap |
: N•m (kg - m, ft - lb) |
: Always replace after every disassembly. |
: Apply power steering fluid. Refer to FLUIDS AND LUBRICANTS
. |
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS
. |
: Apply multi-purpose grease. |
