Exploded View

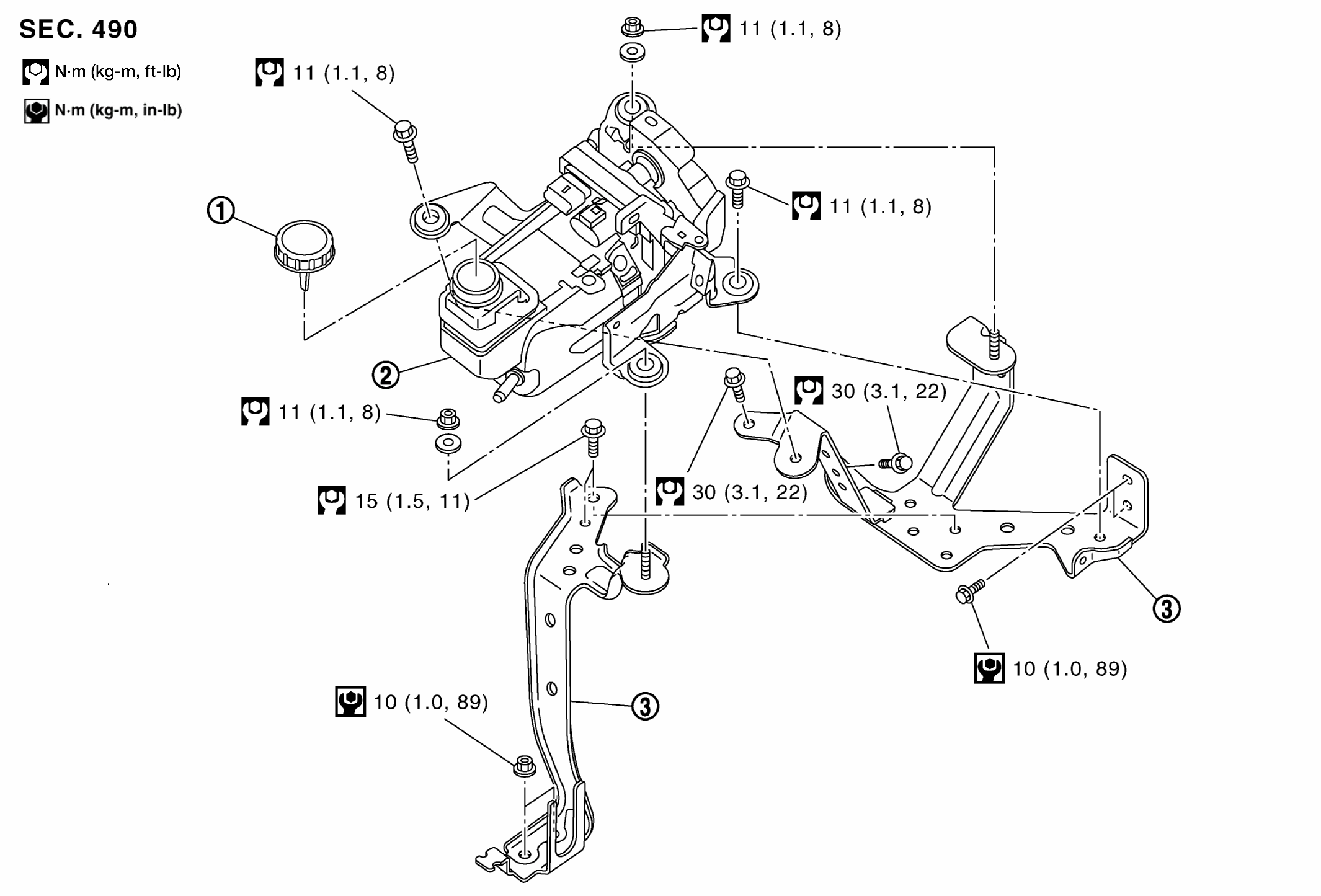

Fig 1: Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir cap	2.	Power steering oil pump assembly	3.	Bracket
: N•m (kg - m, in - lb)
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
