Component Location

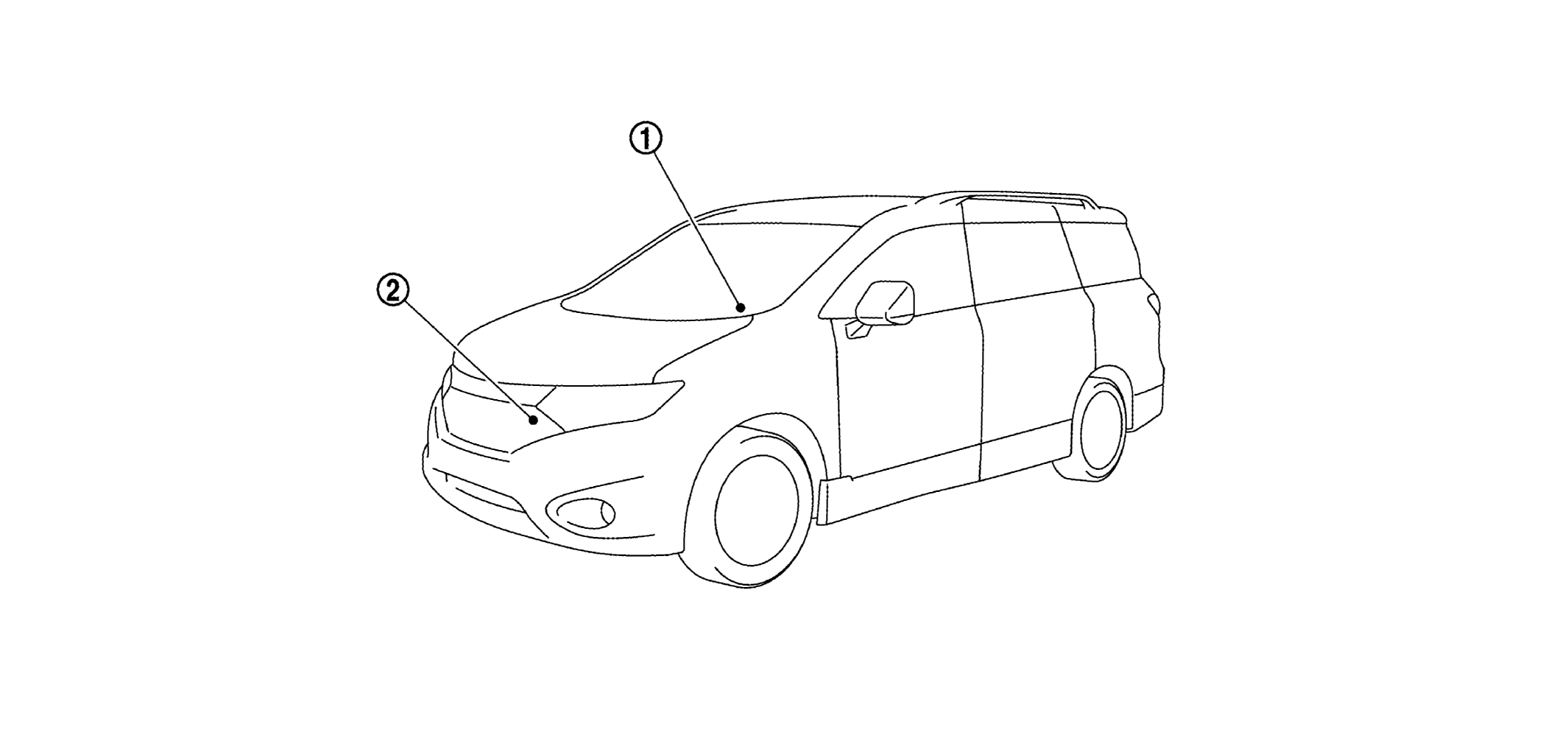

G07053880Courtesy of NISSAN NORTH AMERICA, INC.
No. Component part Description
1. Combination meter (Charge warning lamp) The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while alternator is operating:
  • Excessive voltage is produced.
  • No voltage is produced.
2. Alternator "B" terminal Refer to DESCRIPTION .
"S" terminal Refer to DESCRIPTION .
"L" terminal Refer to DESCRIPTION .
