Exploded View

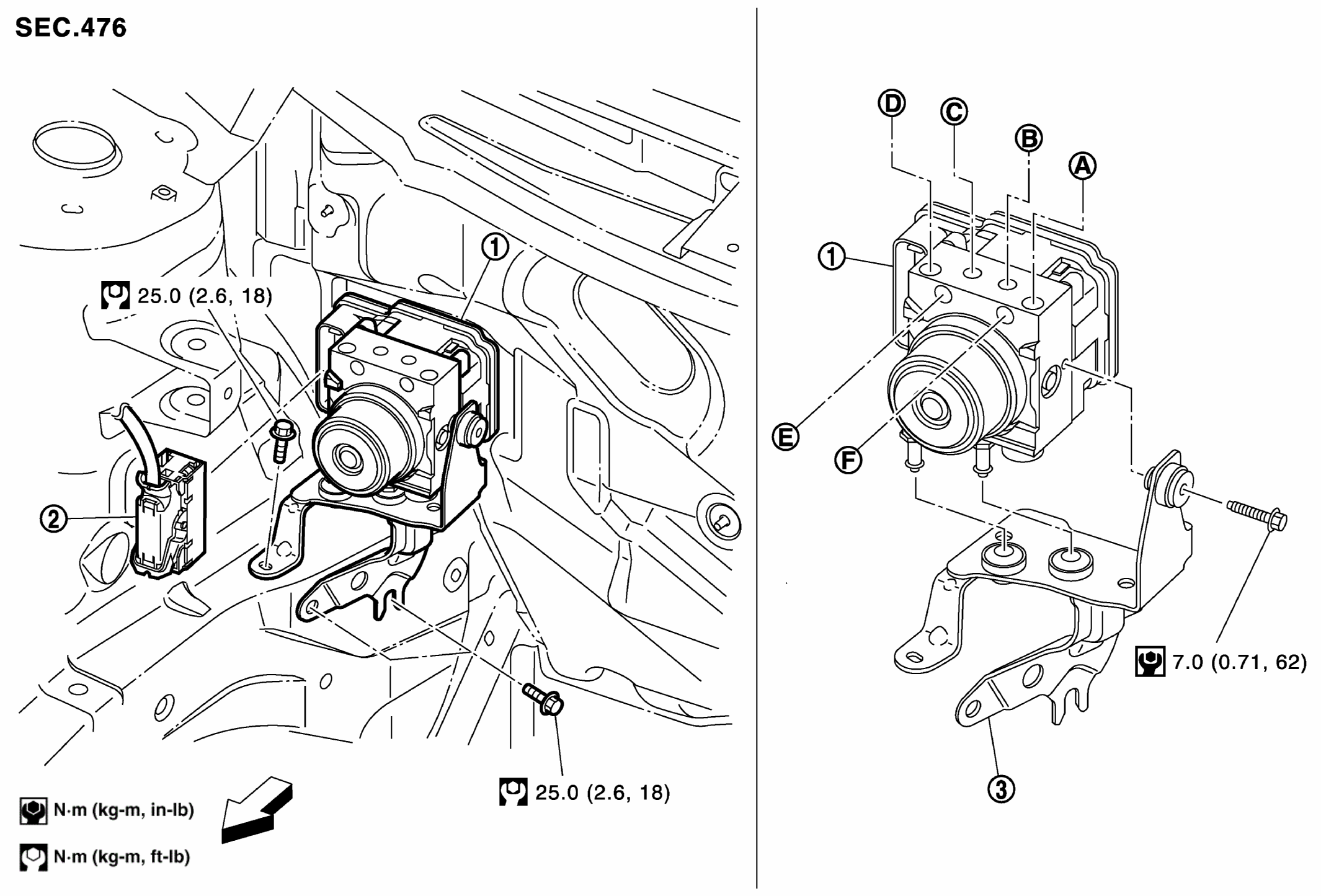

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	ABS actuator and electric unit (control unit) harness connector	3.	Bracket
A.	To master cylinder primary side	B.	To front RH caliper	C.	To front LH caliper
D.	To master cylinder secondary side	E.	To rear RH caliper	F.	To rear LH caliper
: Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
