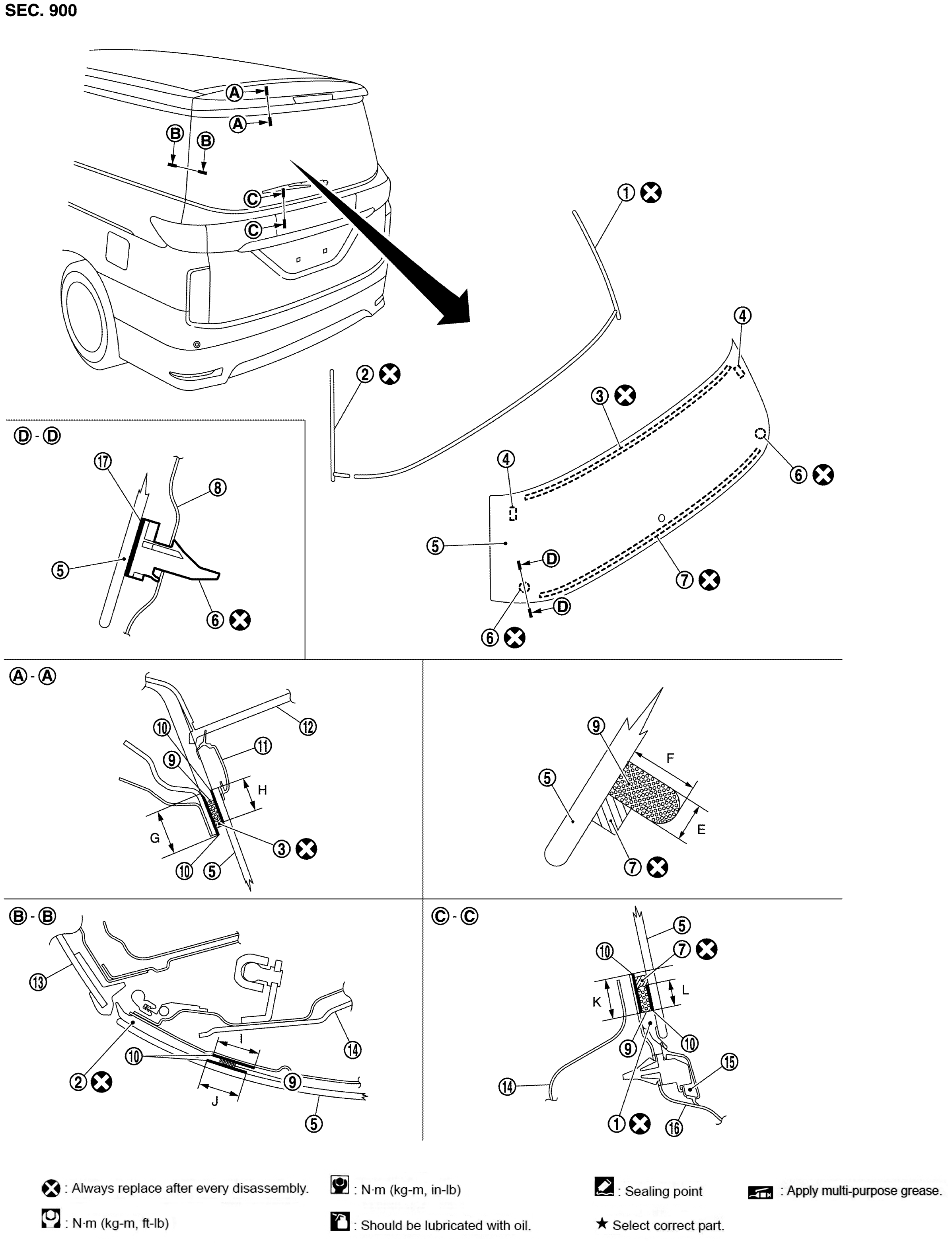

Exploded View With Torque Specifications
| 1. | Back door window glass molding RH | 2. | Back door window glass molding LH | 3. | Dam sealant rubber (upper) |
| 4. | Fastener | 5. | Back door window glass | 6. | Clip |
| 7. | Dam sealant rubber (lower) | 8. | Back door panel | 9. | Adhesive |
| 10. | Primer | 11. | Back door upper molding | 12. | Rear spoiler |
| 13. | Side window glass | 14. | Back door inner | 15. | Back door lower molding |
| 16. | Back door outer | 17. | Adhesive for clip | ||
| E | : 7 (0.276) | F | : 12 (0.472) | G | : 22 (0.866) |
| H | : 15 (0.591) | I | : 22 (0.866) | J | : 22 (0.866) |
| K | : 22 (0.866) | L | : 15.7 (0.618) | ||
| Unit | : mm (in) | ||||
| : Always replace after every disassembly. | |||||
