Exploded View

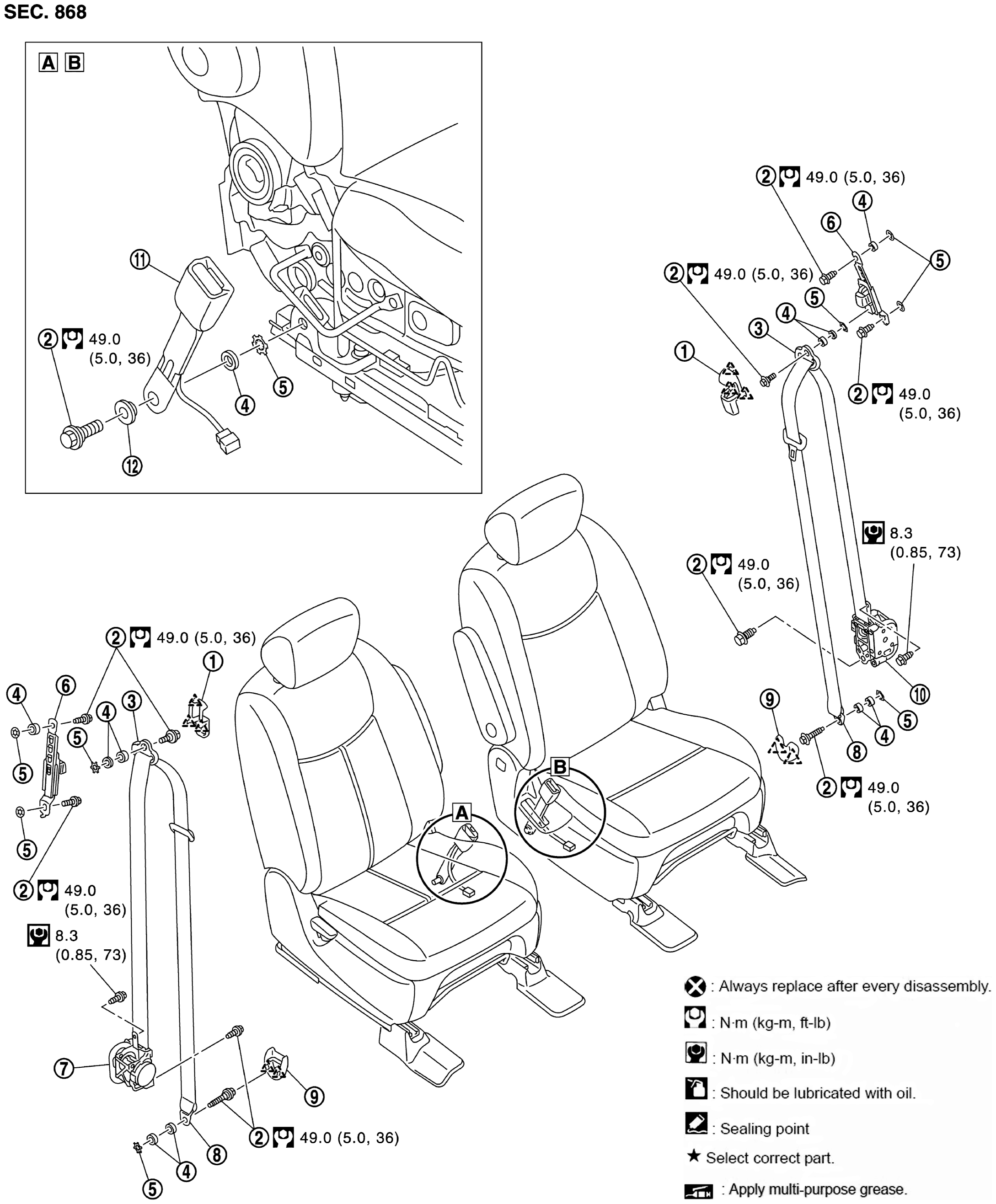

Fig 1: Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Adjuster cover	2.	Anchor bolt	3.	Shoulder anchor
4.	Spacer	5.	Retaining washer	6.	Seat belt adjuster
7.	Seat belt pre-tensioner retractor (Passenger side)	8.	Outer anchor	9.	Outer anchor cover
10.	Seat belt pre-tensioner retractor (Driver side)	11.	Seat belt buckle	12.	Wave washer
	: Pawl
	: N•m (kg - m, in - lb)
	: N•m (kg - m, ft - lb)
