Exploded View

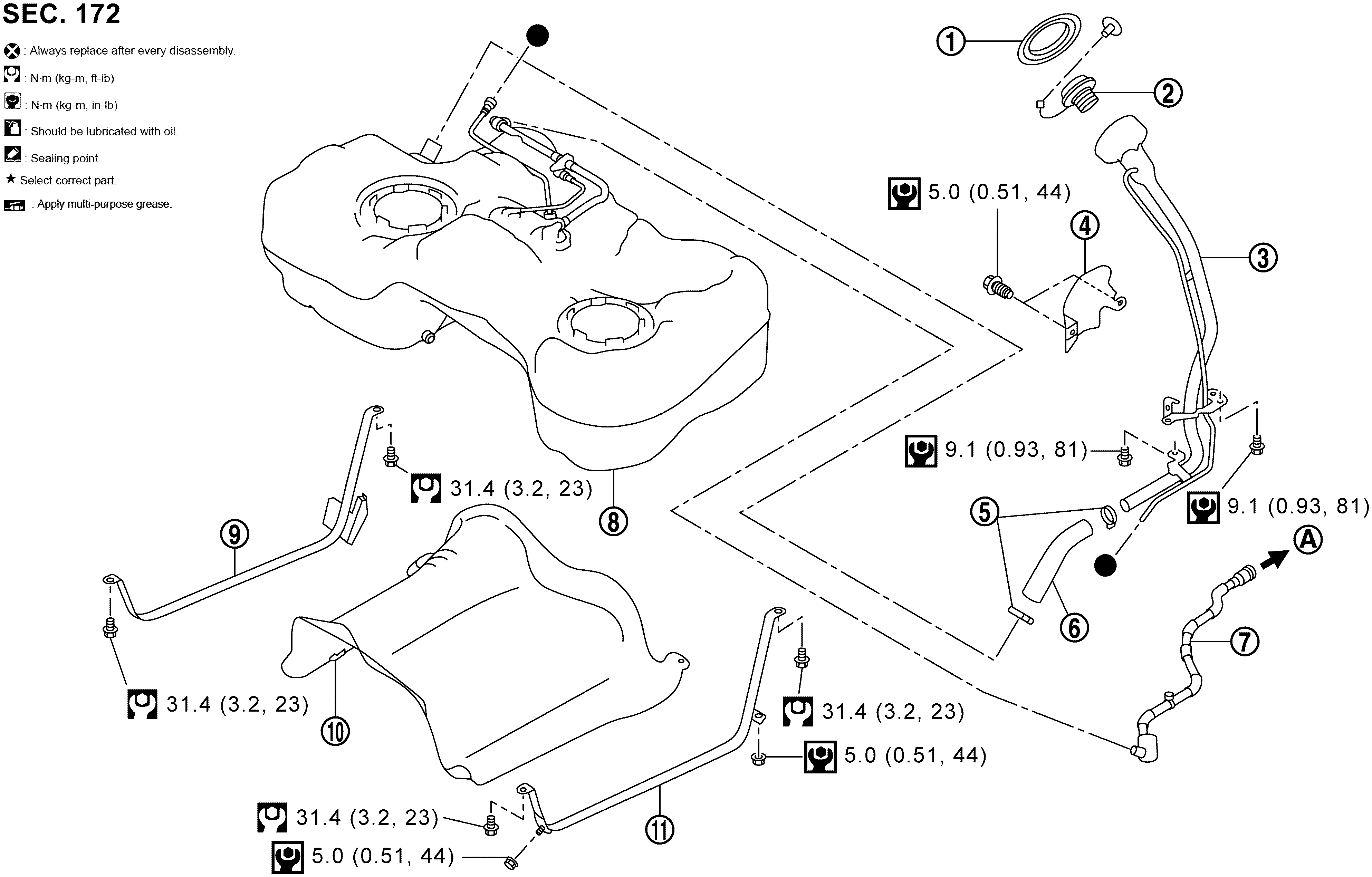

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Grommet	Fuel filler cap	Fuel filler tube
	Filler tube protector	Clamp	Fuel filler hose
	Vent tube	Fuel tank	Fuel tank band (RH)
	Fuel tank protector	Fuel tank band (LH)
	To EVAP canister
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
: Indicates that the part is connected at points with same symbol in actual vehicle.
