Exploded View

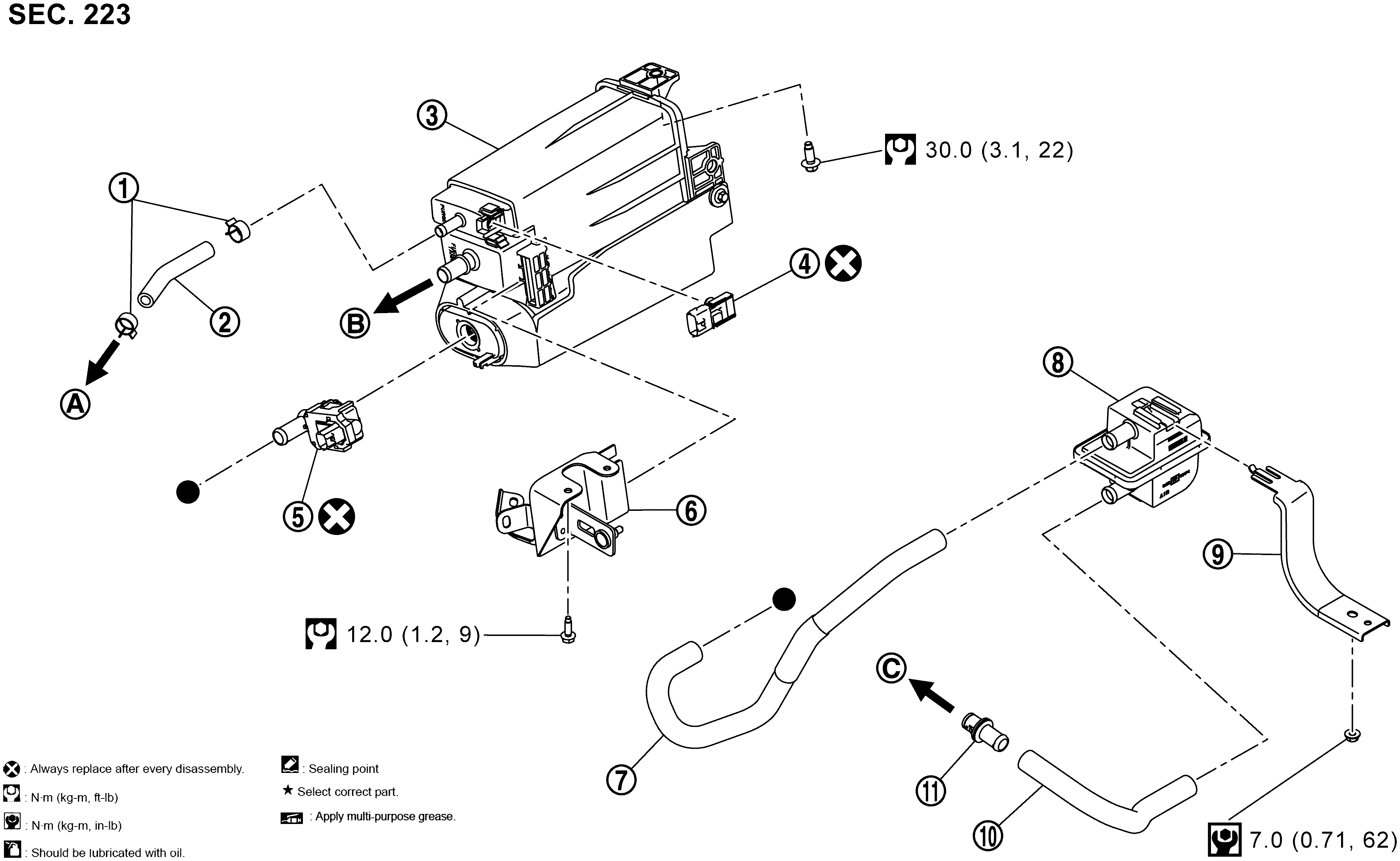

Fig 1: Evap Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Clamp	EVAP hose	EVAP canister
	EVAP control system pressure sensor	EVAP canister vent control valve	Bracket
	Vent hose	Canister filter	Bracket
	Vent hose	Connector
	To EVAP canister purge volume control solenoid valve	To fuel tank	To floor panel
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
	: Always replace after every disassembly.
: Indicates that the part is connected at points with same symbol in actual vehicle.
