Exploded View

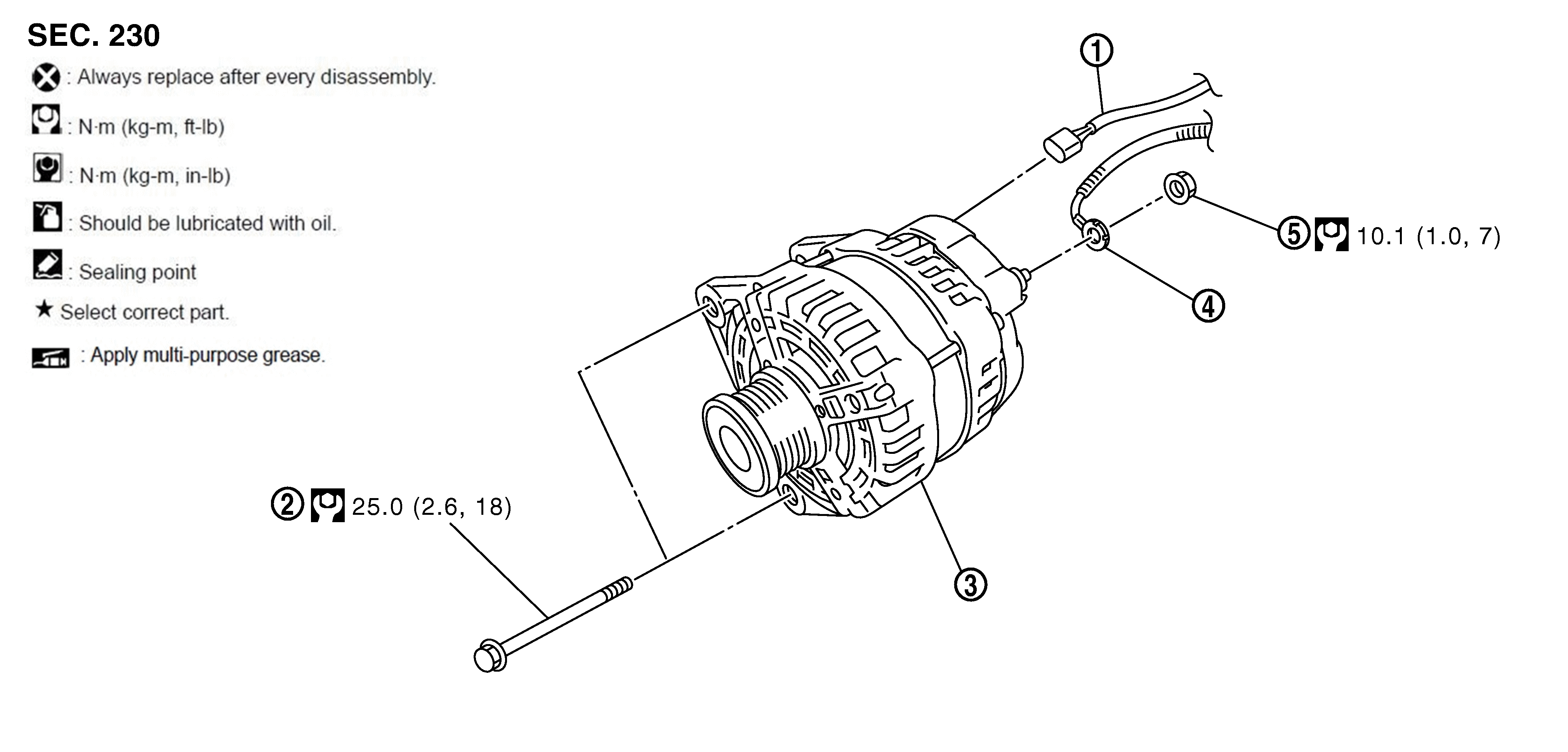

Fig 1: Alternator With Torque Specifications
GNSPKID0787E-787WHITE-1WHITE-2WHITE-3WHITE-4WHITE-5BOLTCourtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Alternator harness connector WHITE-2 Alternator mounting bolt WHITE-3 Alternator
WHITE-4 "B" terminal harness WHITE-5 "B" terminal nut
BOLT : N•m (kg-m, ft-lb)
