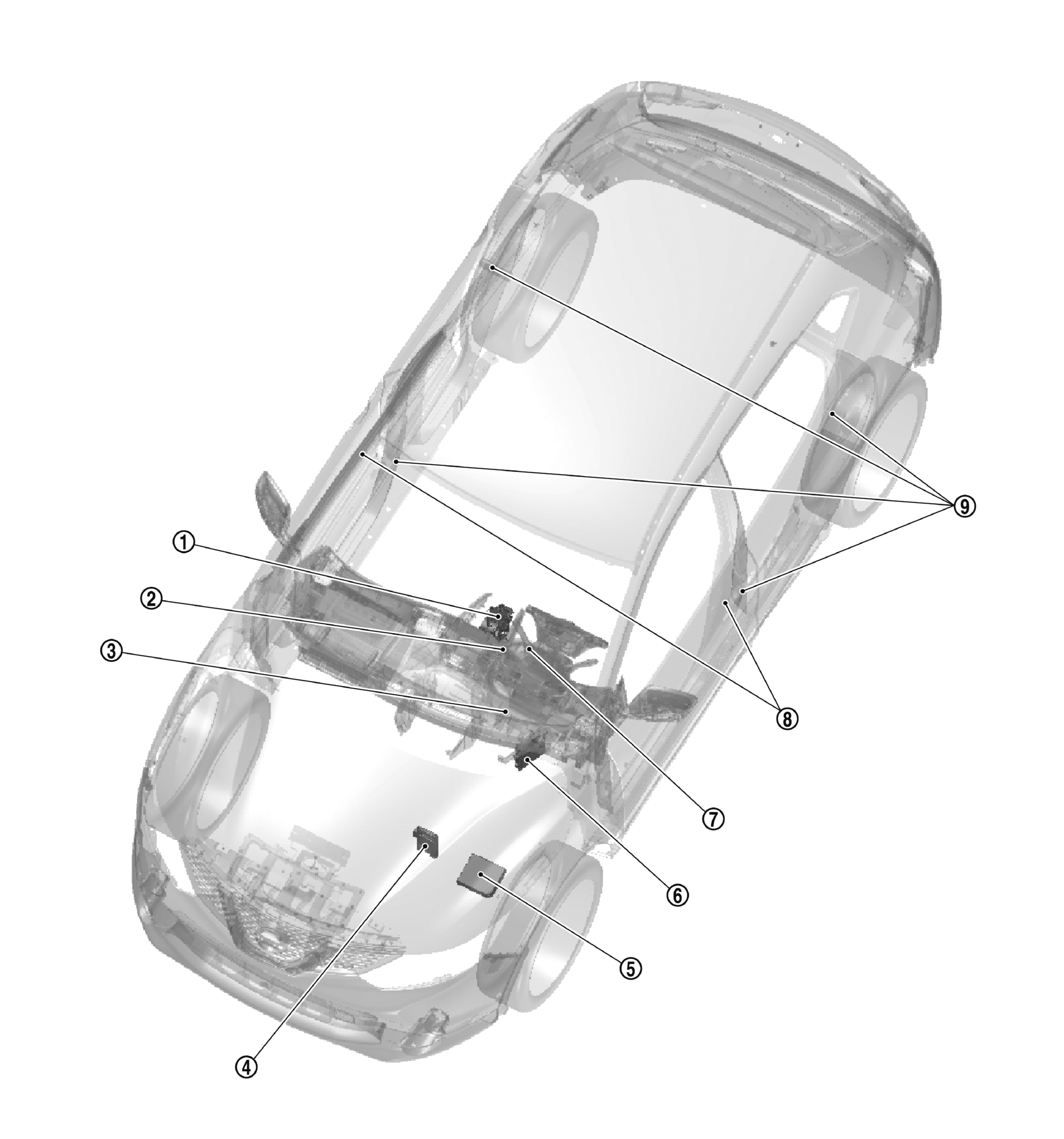

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Description
	CVT shift selector (detention switch) (CVT models)	CVT shift selector (detention switch) detects shift lever status, transmits detention switch signal to BCM. Refer to COMPONENT LOCATION for detailed installation location.
	Push-button ignition switch (with Intelligent Key)	Refer to PUSH-BUTTON IGNITION SWITCH .
	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM. Refer to COMPONENT LOCATION .
	TCM	Transmits shift position signal to BCM via CAN communication line. Refer to COMPONENT LOCATION for detailed installation location.
	IPDM E/R	IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM. Refer to COMPONENT LOCATION for detailed installation location.
	BCM	BCM controls power distribution system. BCM judges ignition switch position by push-button ignition switch (push switch) and vehicle condition BCM checks the ignition switch position internally. Refer to COMPONENT LOCATION for detailed installation location.
	Key switch (without Intelligent Key)	Key switch detects that ignition key is inserted into the ignition key cylinder, and then transmits the signal to BCM.
	Door request switch (with Intelligent Key)	Door request switch detects door lock/unlock operation and transmits door request switch signal to BCM
	Door switch	Detects door open/close condition.
