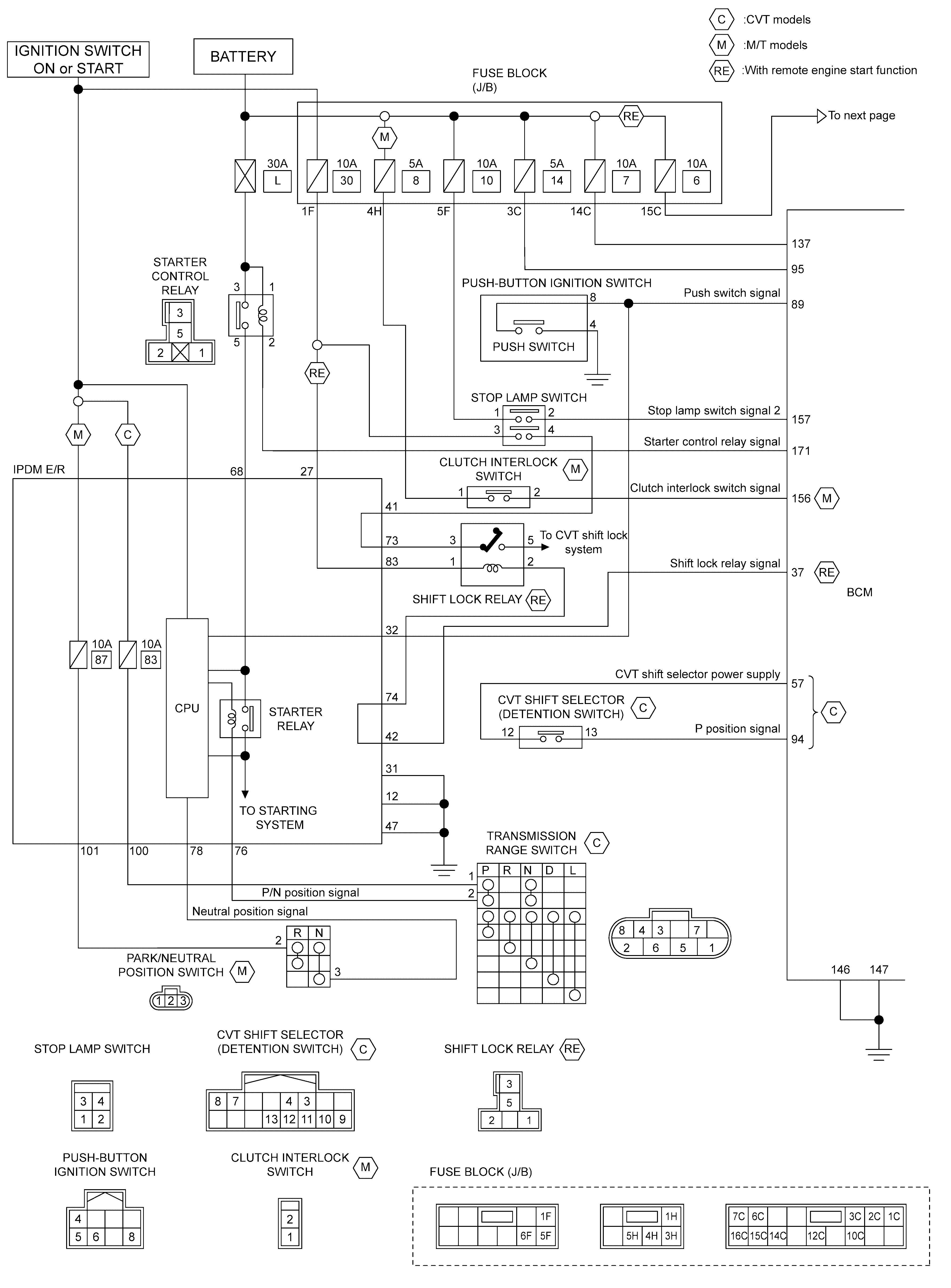

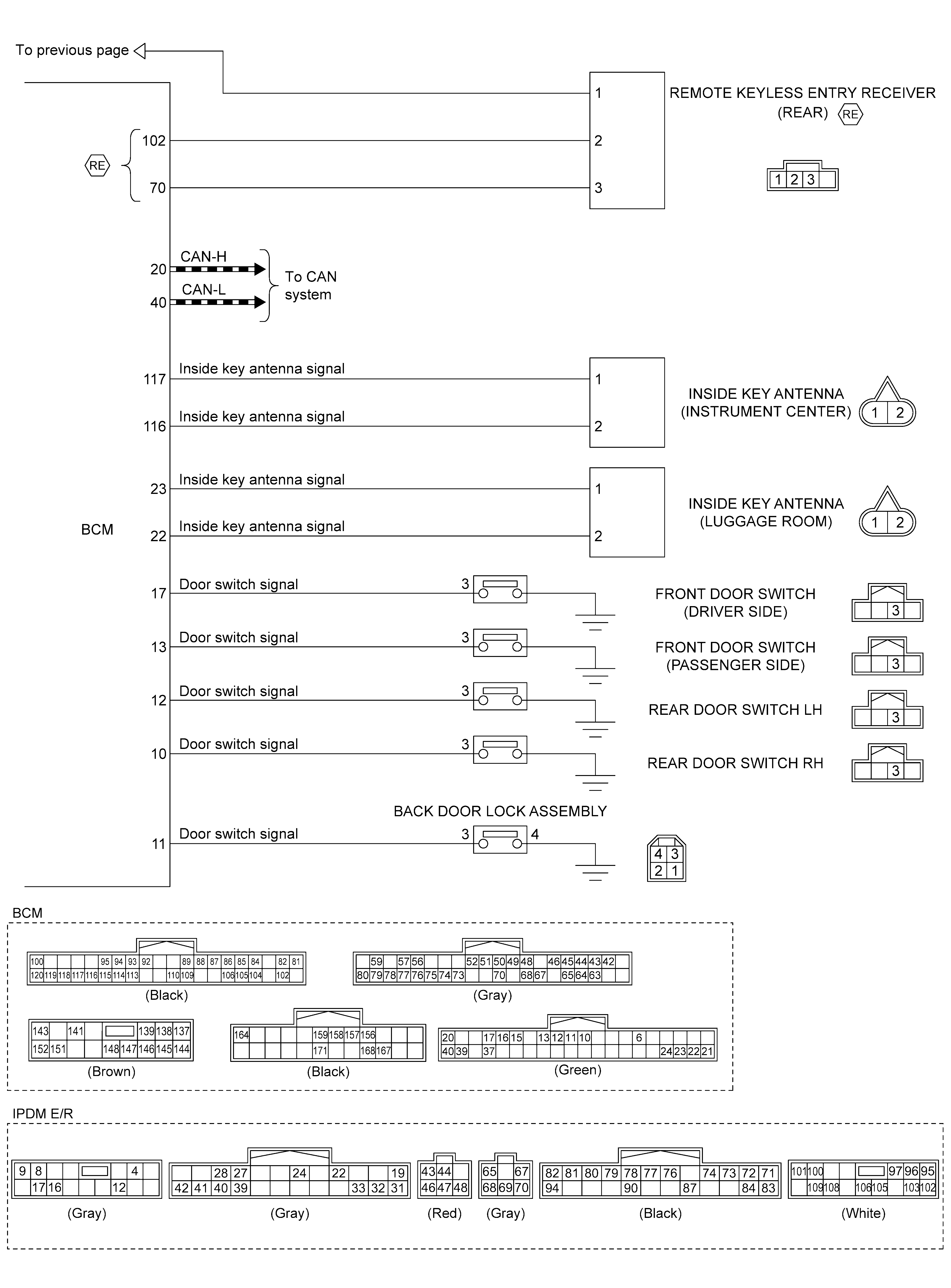

Home >> Nissan-Datsun >> 2017 >> Qashqai SL >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security Control System (With Intelligent Key System) >> System Description >> System >> Intelligent Key System/Engine Start Function >> Circuit Diagram
