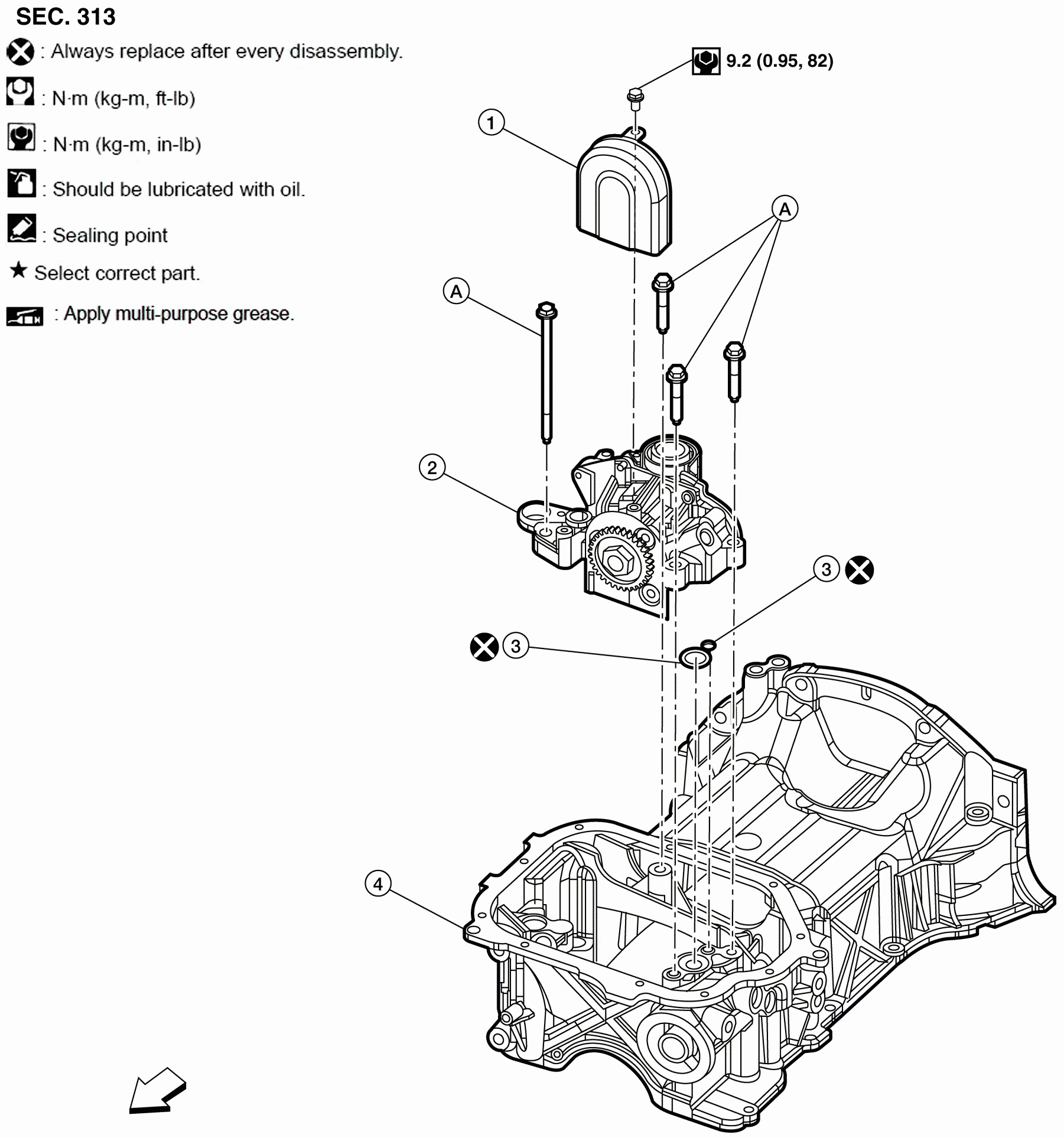

Exploded View With Torque Specifications

GNSALBIA3216ZZ-216

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump cover	2.	Oil pump assembly	3.	O rings
4.	Oil pan	A.	Bolts		Front
