Power Distribution System: Wiring Diagram

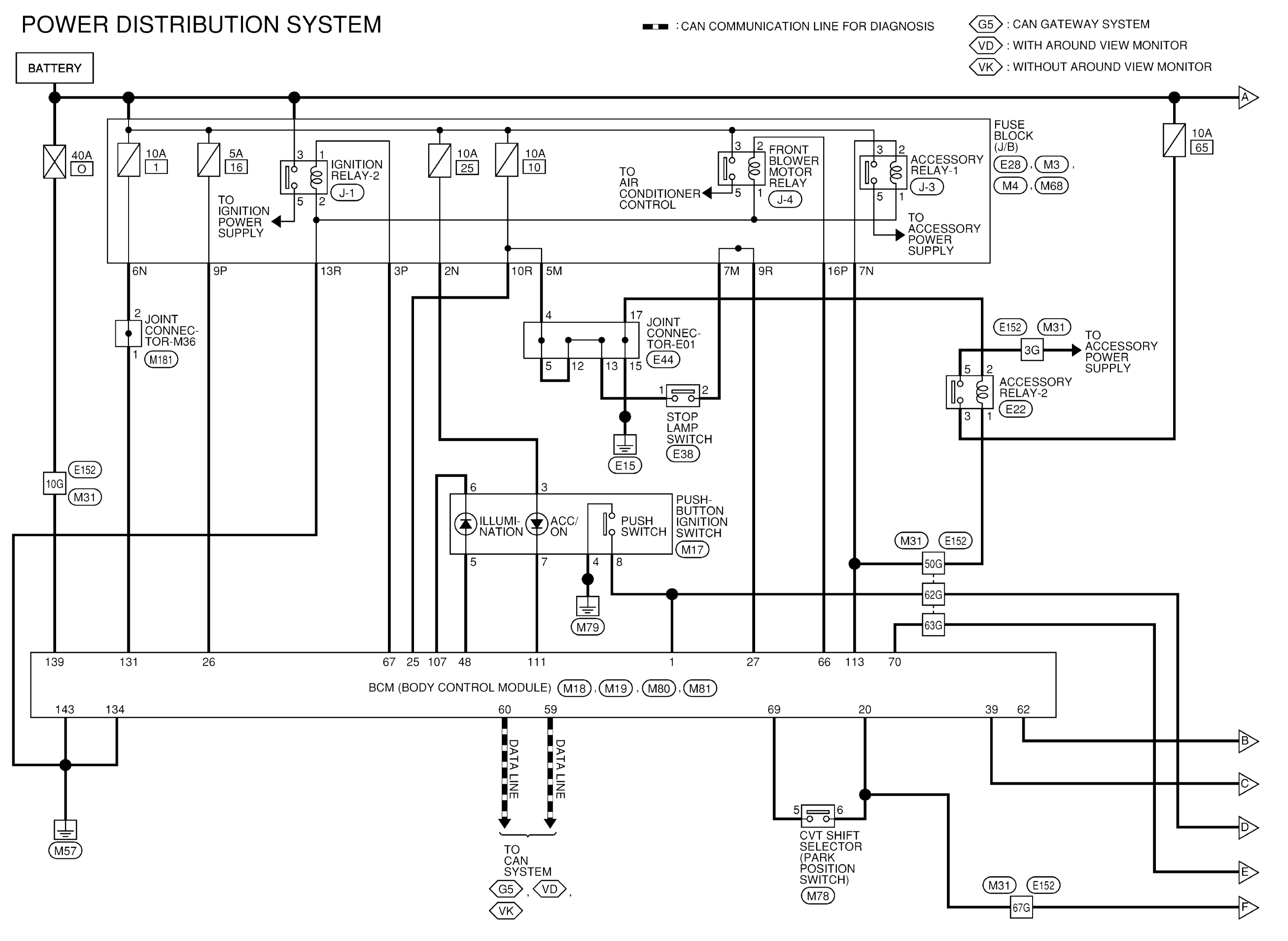

GNSAAMWA2262GB-262

Courtesy of NISSAN NORTH AMERICA, INC.

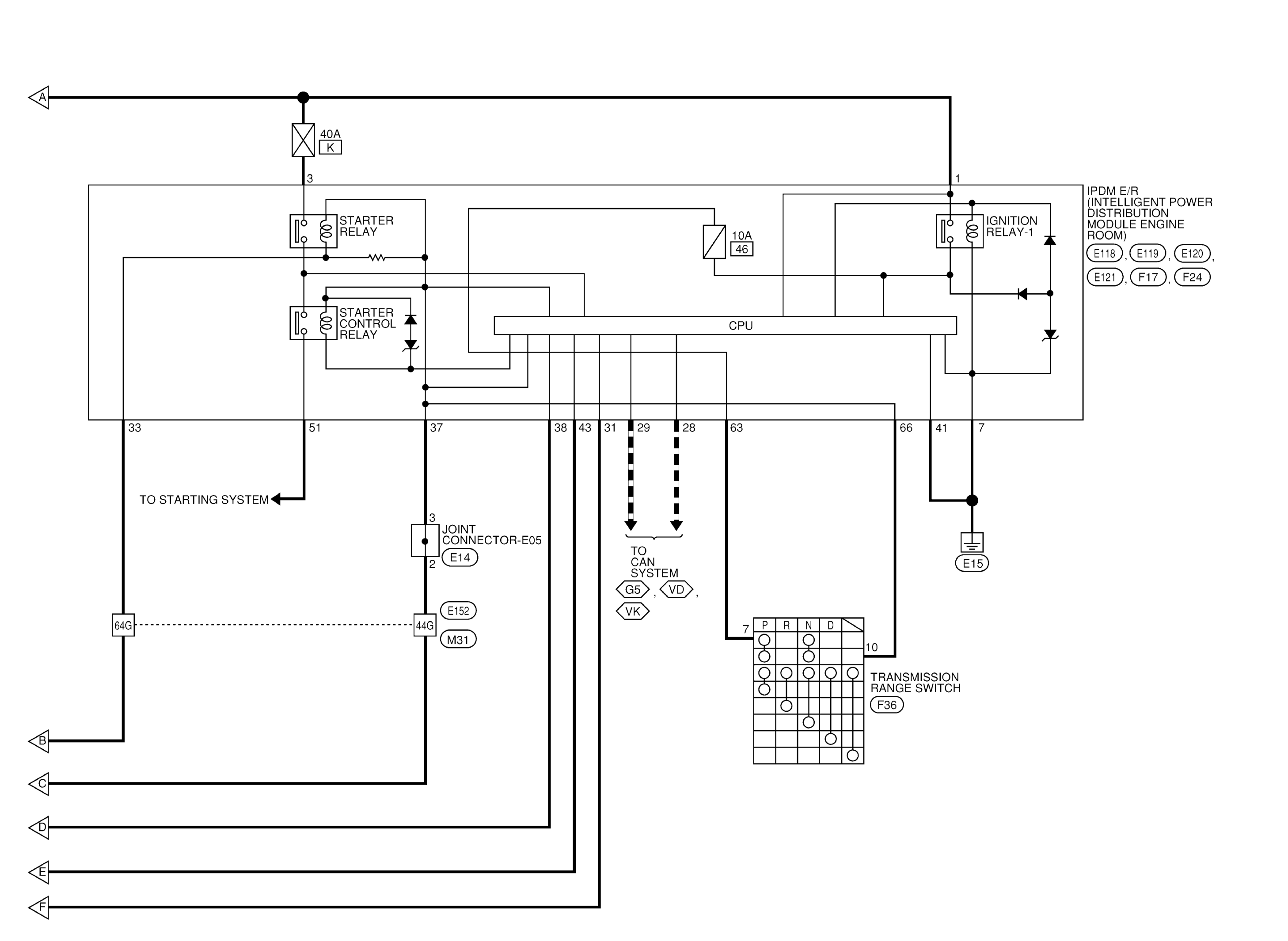

GNSAAMWA2263GB-263

Courtesy of NISSAN NORTH AMERICA, INC.

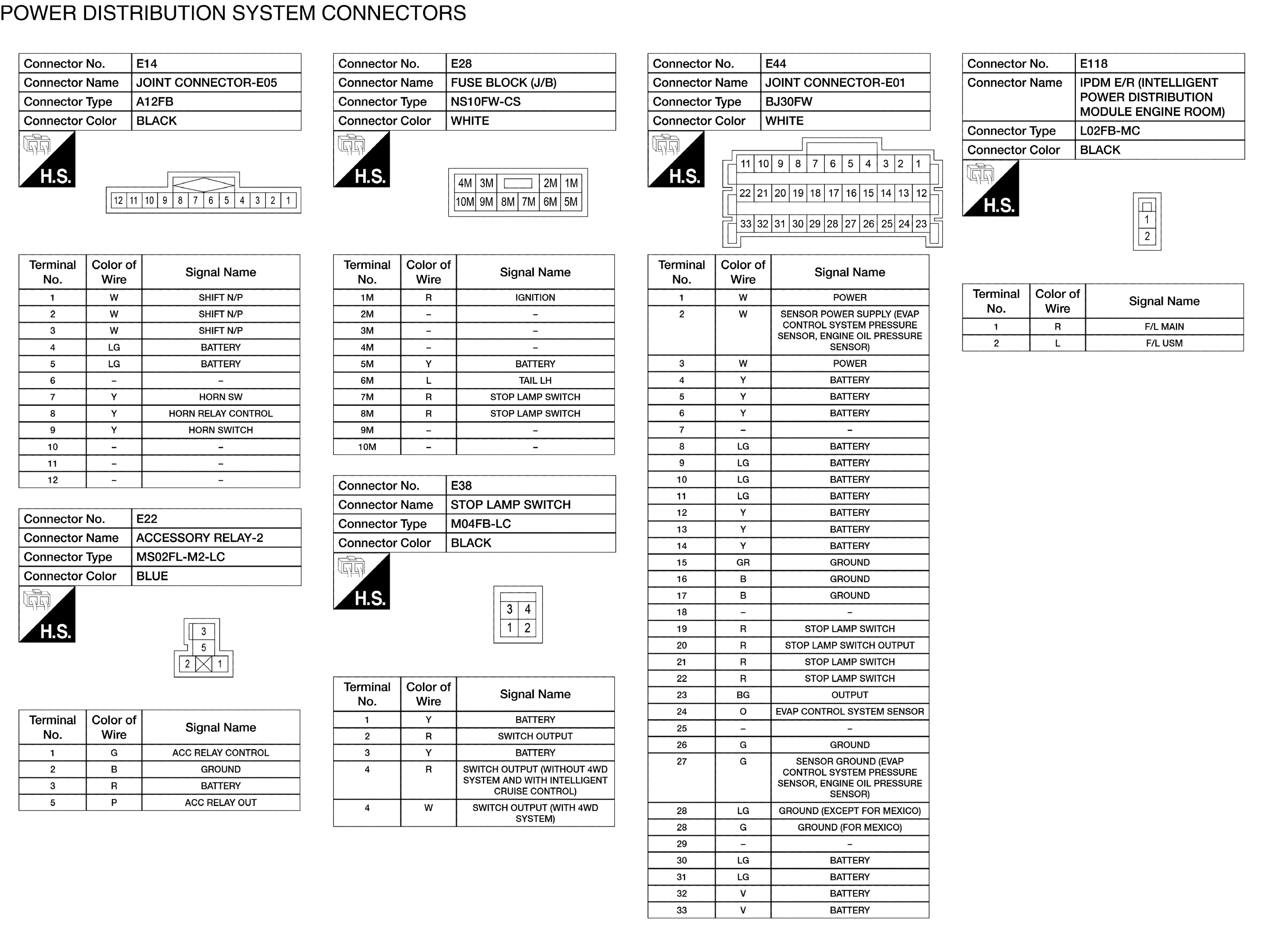

GNSAAMIA4815GB-815

Courtesy of NISSAN NORTH AMERICA, INC.

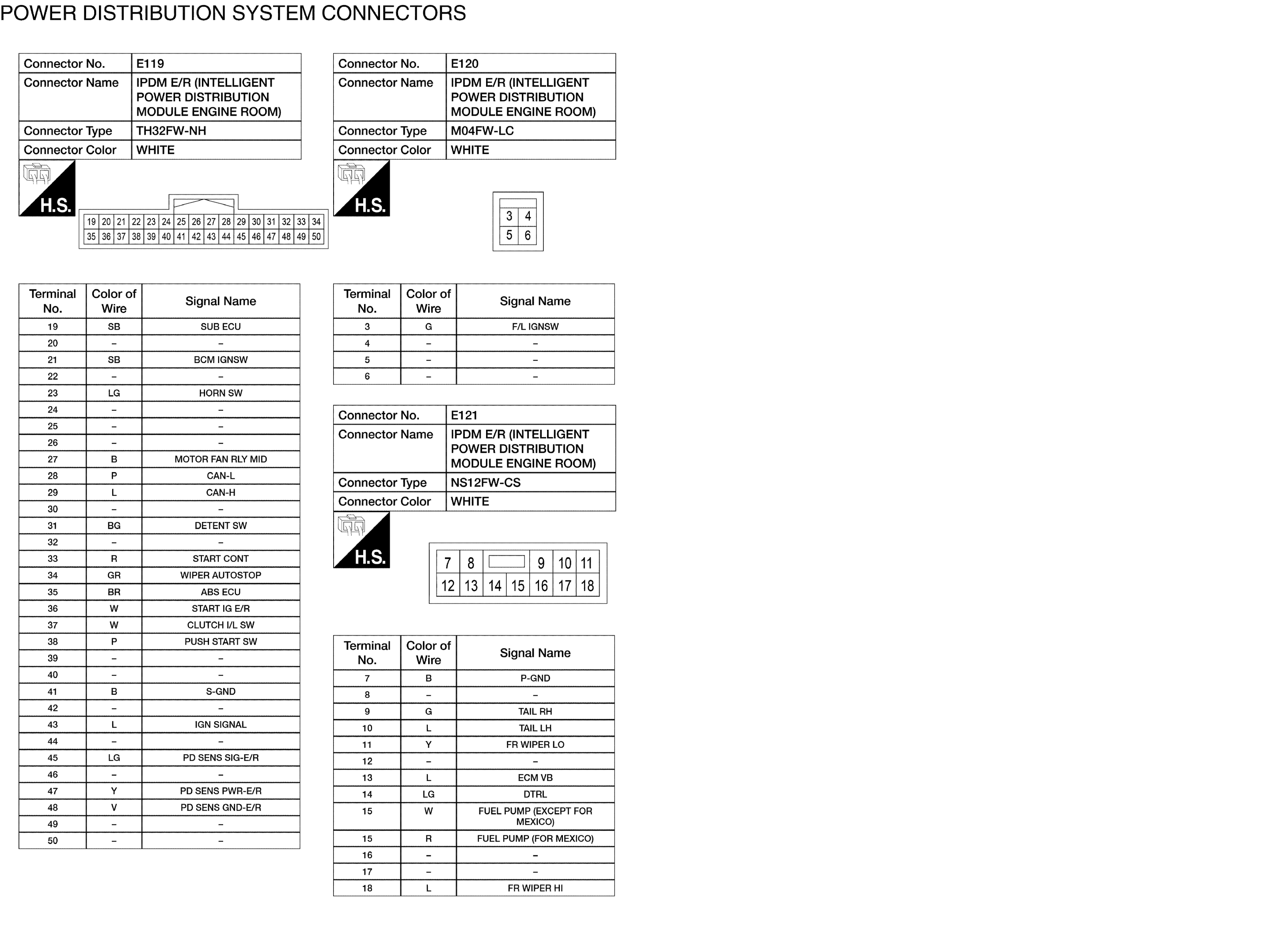

GNSAAMIA4816GB-816

Courtesy of NISSAN NORTH AMERICA, INC.

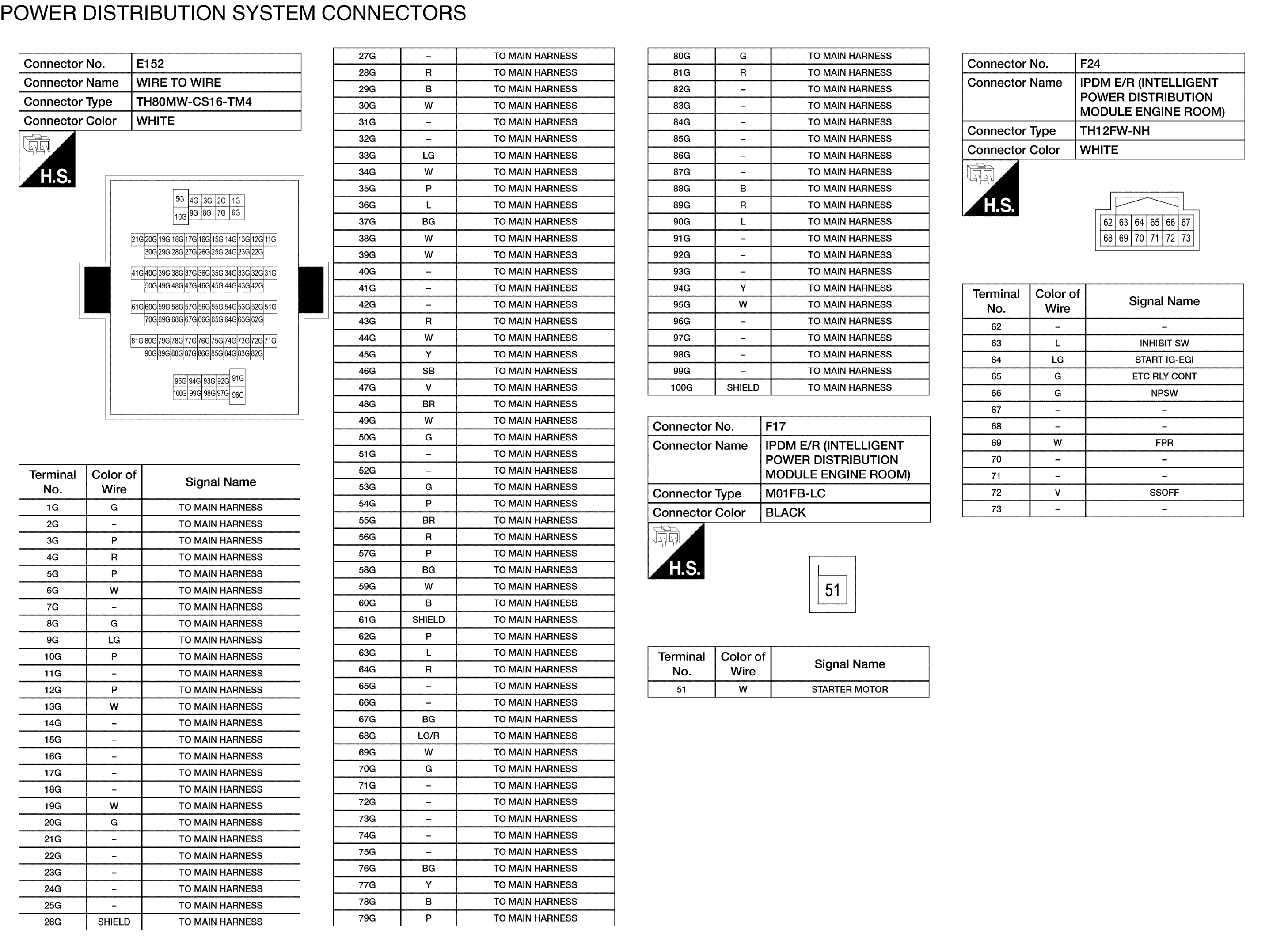

GNSAAMIA4817GB-817

Courtesy of NISSAN NORTH AMERICA, INC.

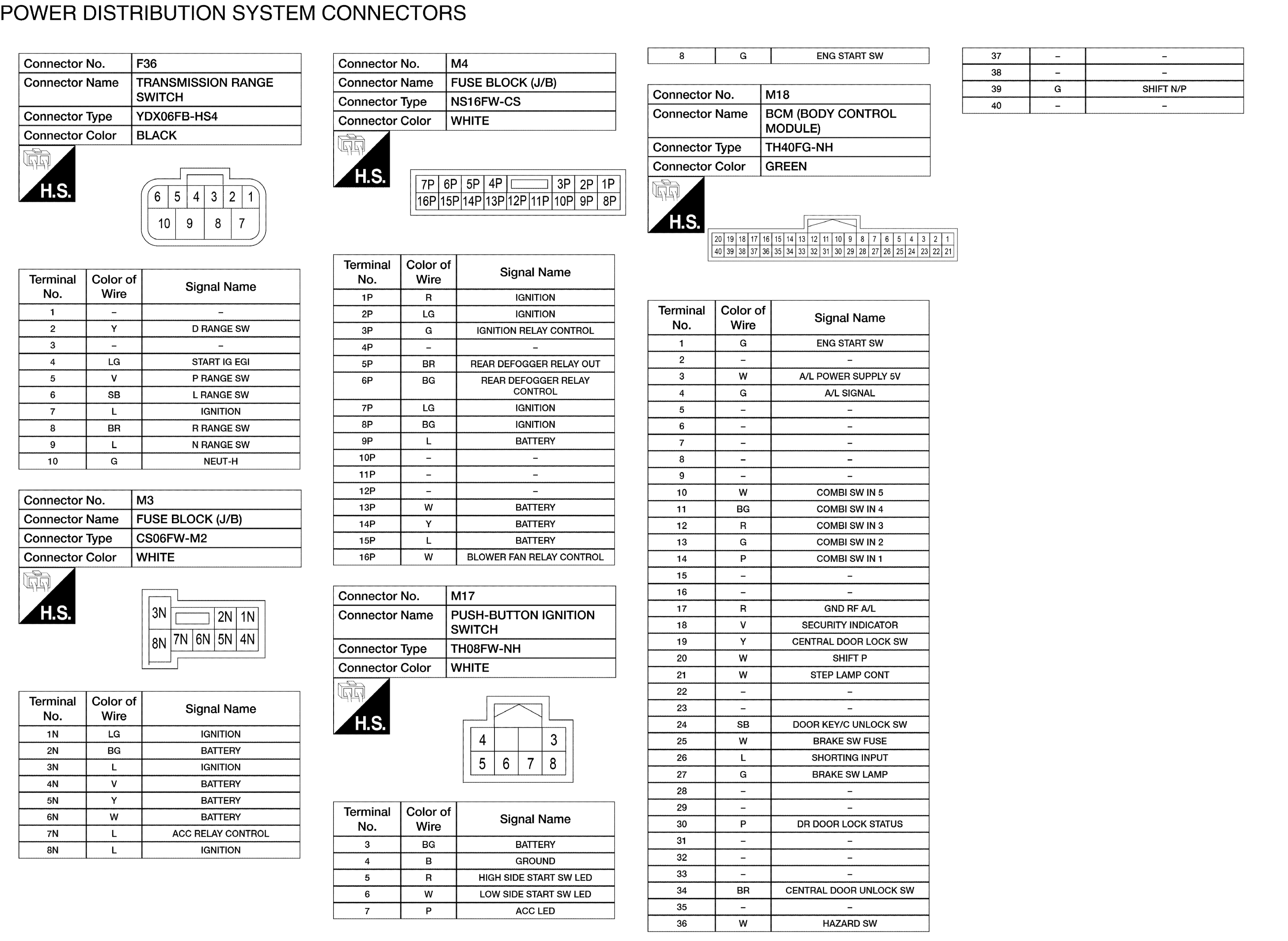

GNSAAMIA4818GB-818

Courtesy of NISSAN NORTH AMERICA, INC.

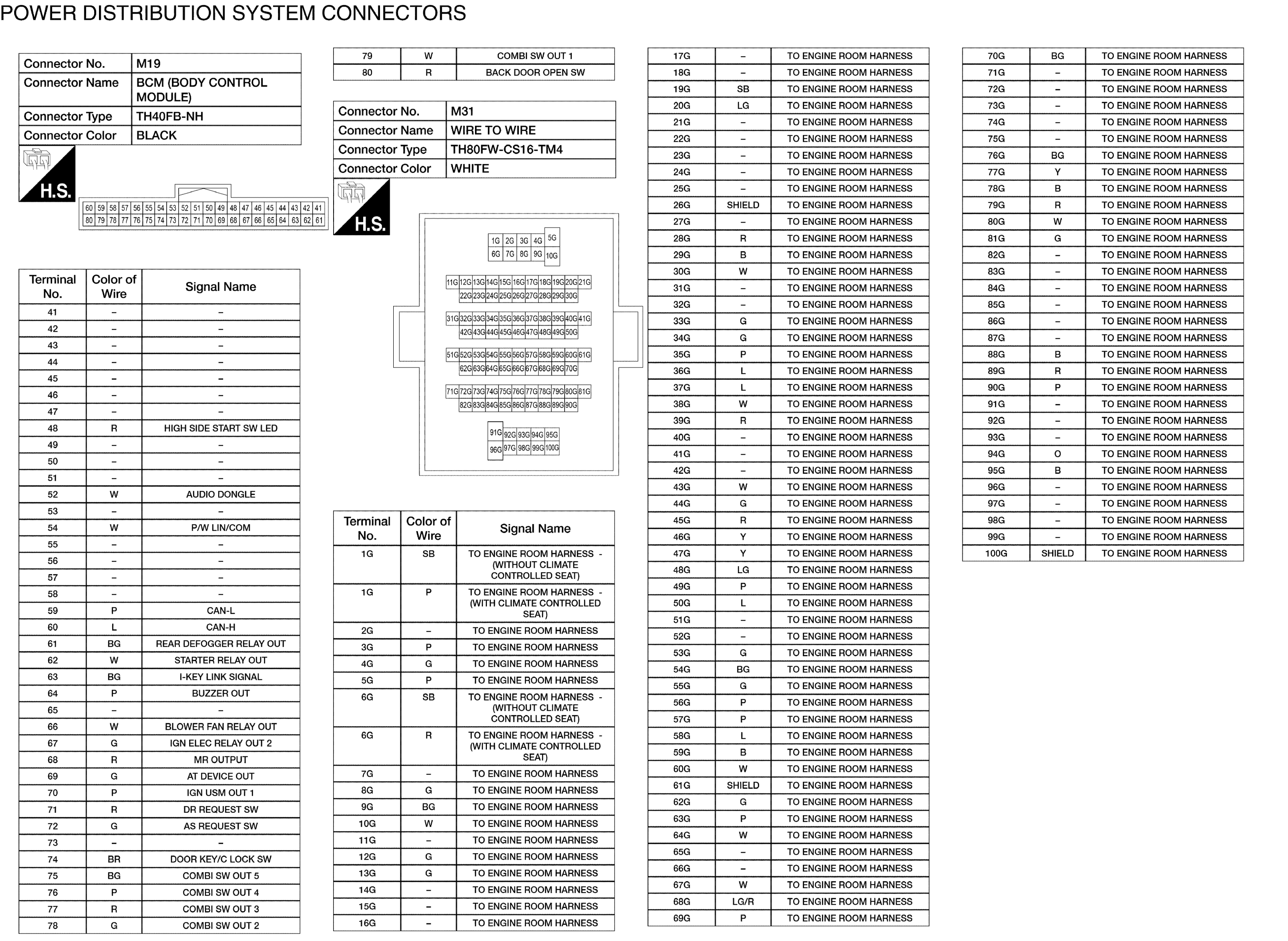

GNSAAMIA4819GB-819

Courtesy of NISSAN NORTH AMERICA, INC.

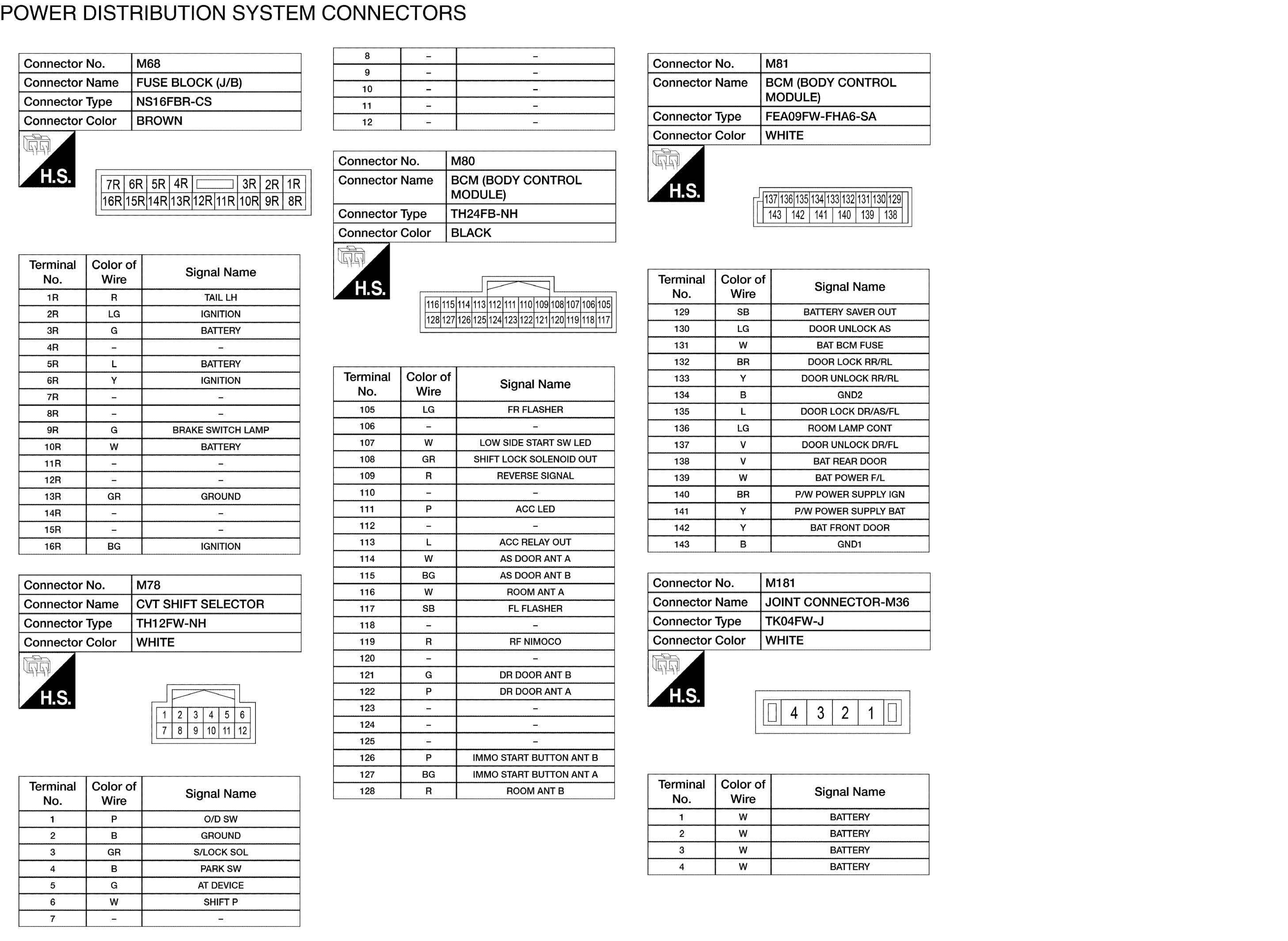

GNSAAMIA4820GB-820

Courtesy of NISSAN NORTH AMERICA, INC.
