Exploded View

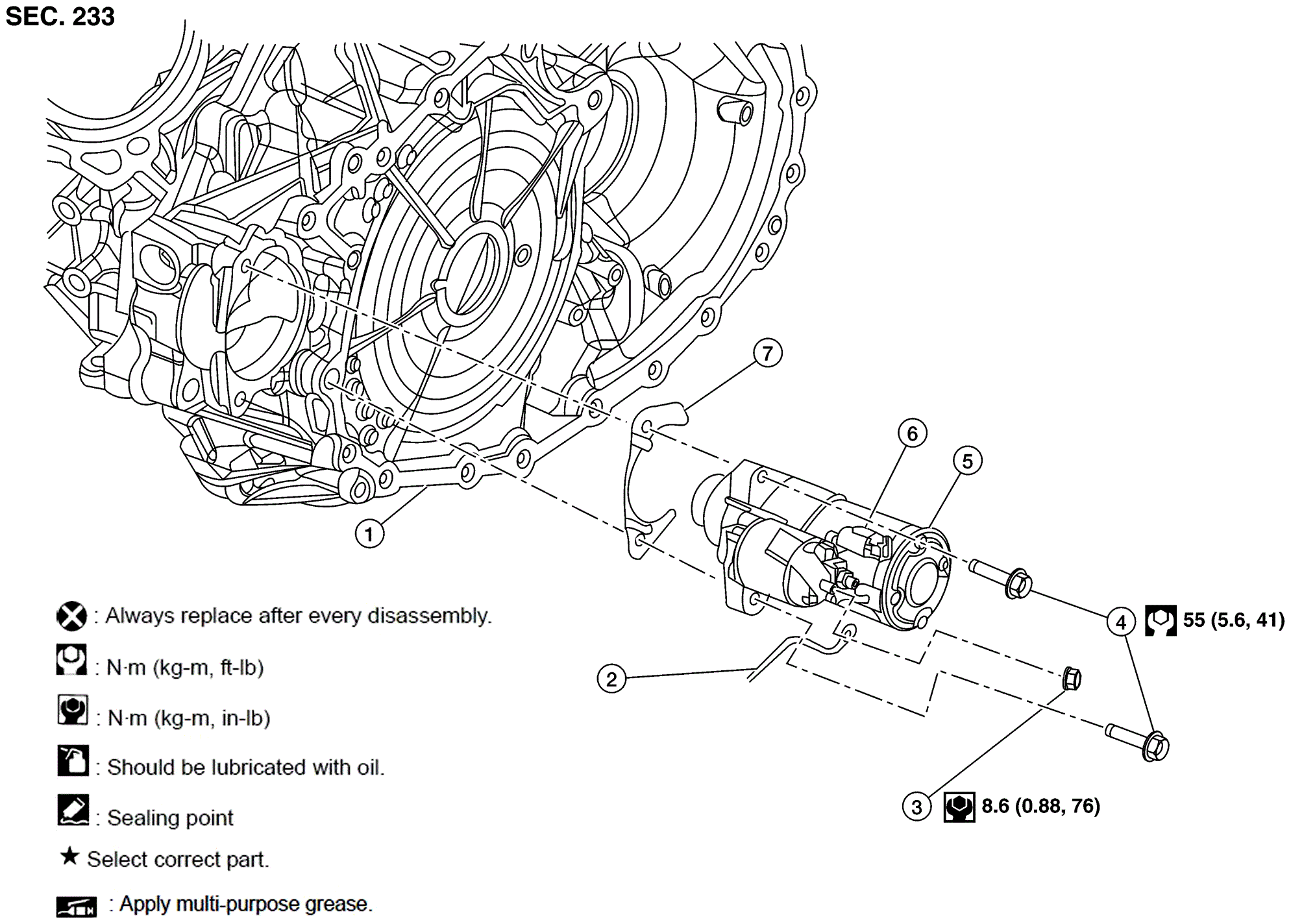

Fig 1: Starter Motor With Torque Specifications
GNSALBIA0932ZZ-932Courtesy of NISSAN NORTH AMERICA, INC.
1. Converter housing 2. "B" terminal harness 3. "B" terminal nut
4. Starter motor bolt 5. Starter motor 6. "S" connector
7. Shim
