Disassembly And Assembly: Notes

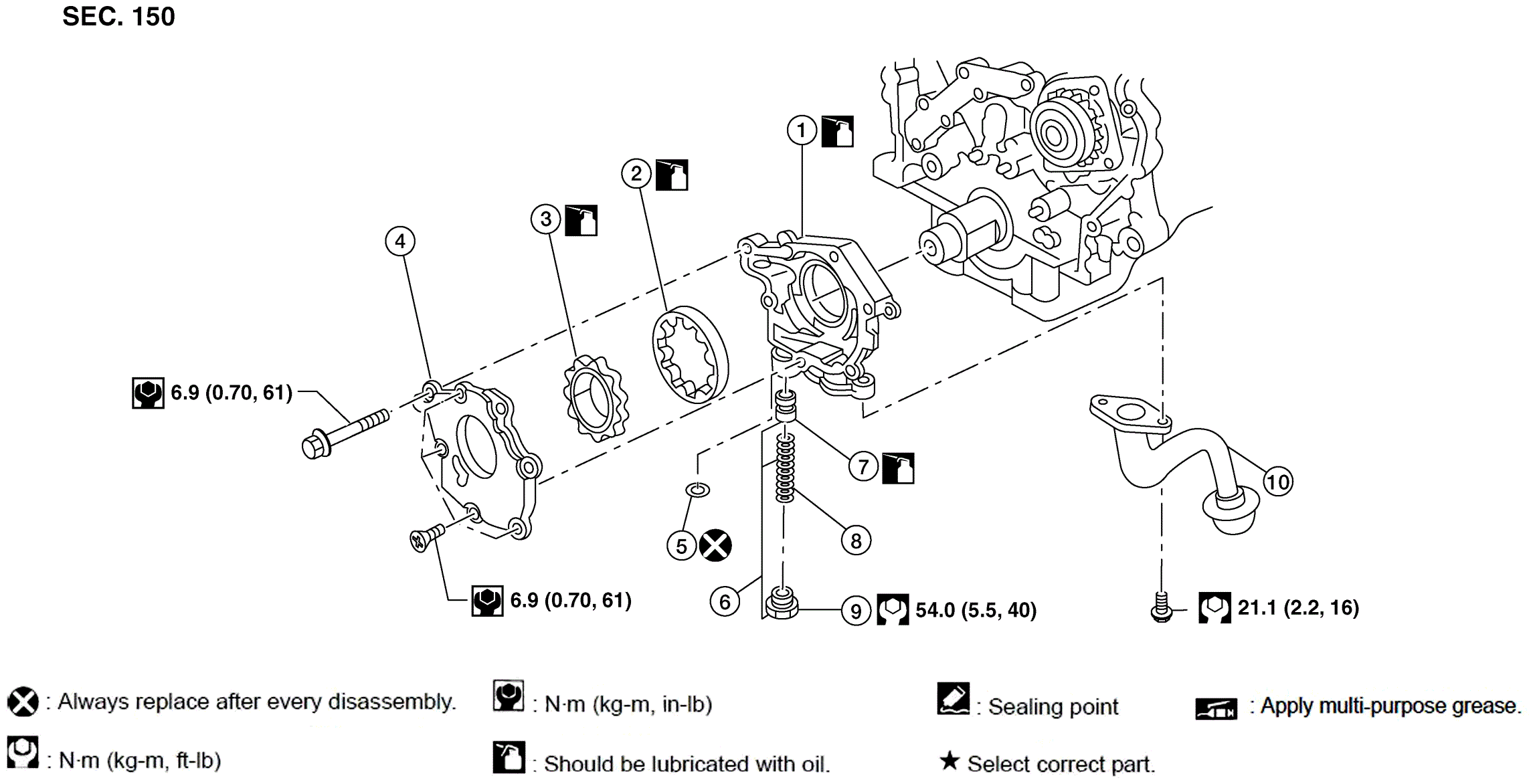

GNSAWBIA2072ZZ-072Courtesy of NISSAN NORTH AMERICA, INC.
1. Oil pump housing 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve O-ring 6. Regulator valve set
7. Regulator valve 8. Regulator valve spring 9. Regulator valve plug
10. Oil strainer
CAUTION:

Before assembly, apply new engine oil to the parts as shown.
