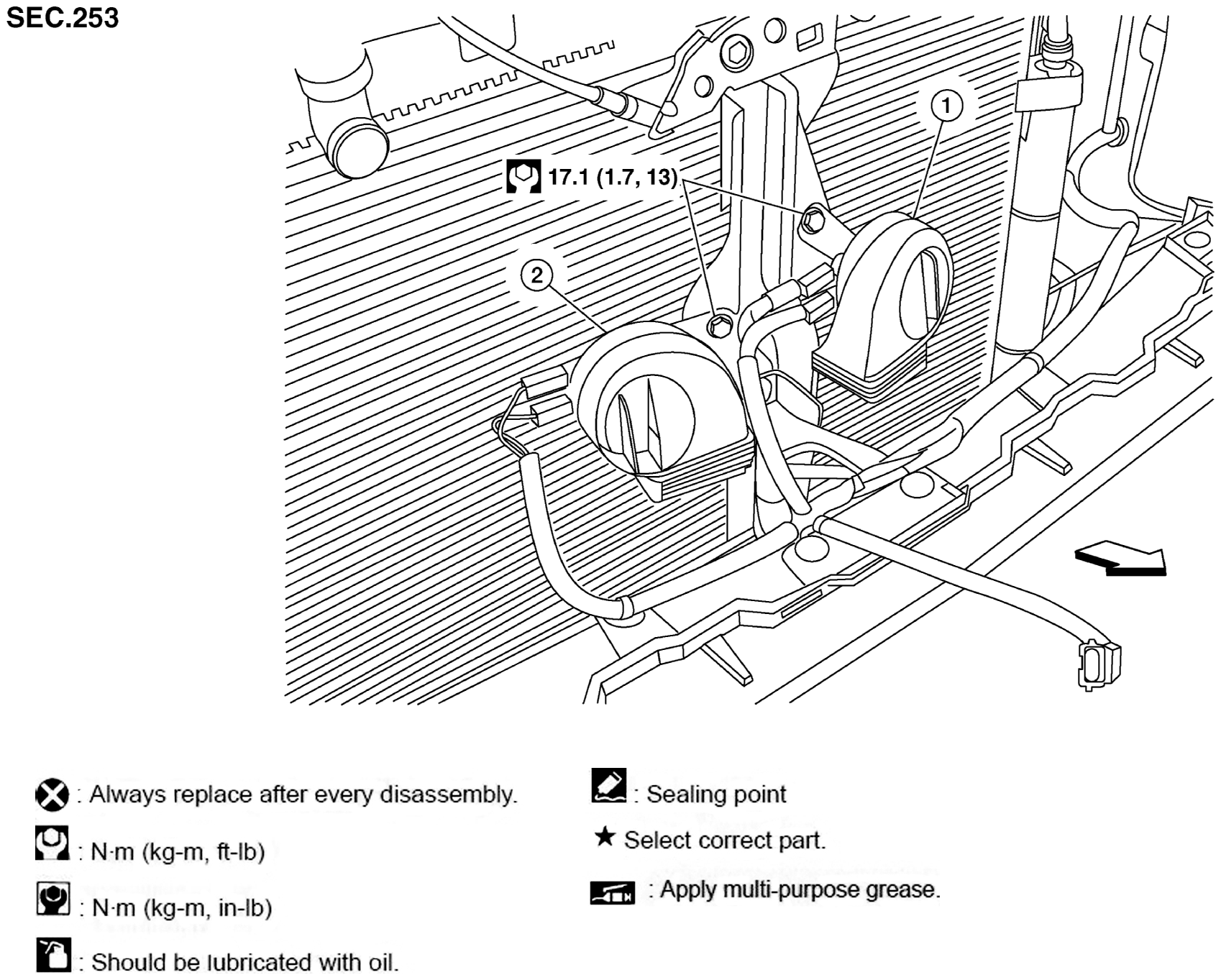

Exploded View With Torque Specifications

GNSAWLIA2539ZZ-539

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn (HIGH)

2.

Horn (LOW)

Front
