Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Disassembly And Assembly
>>
Fuel Level Sensor Unit
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

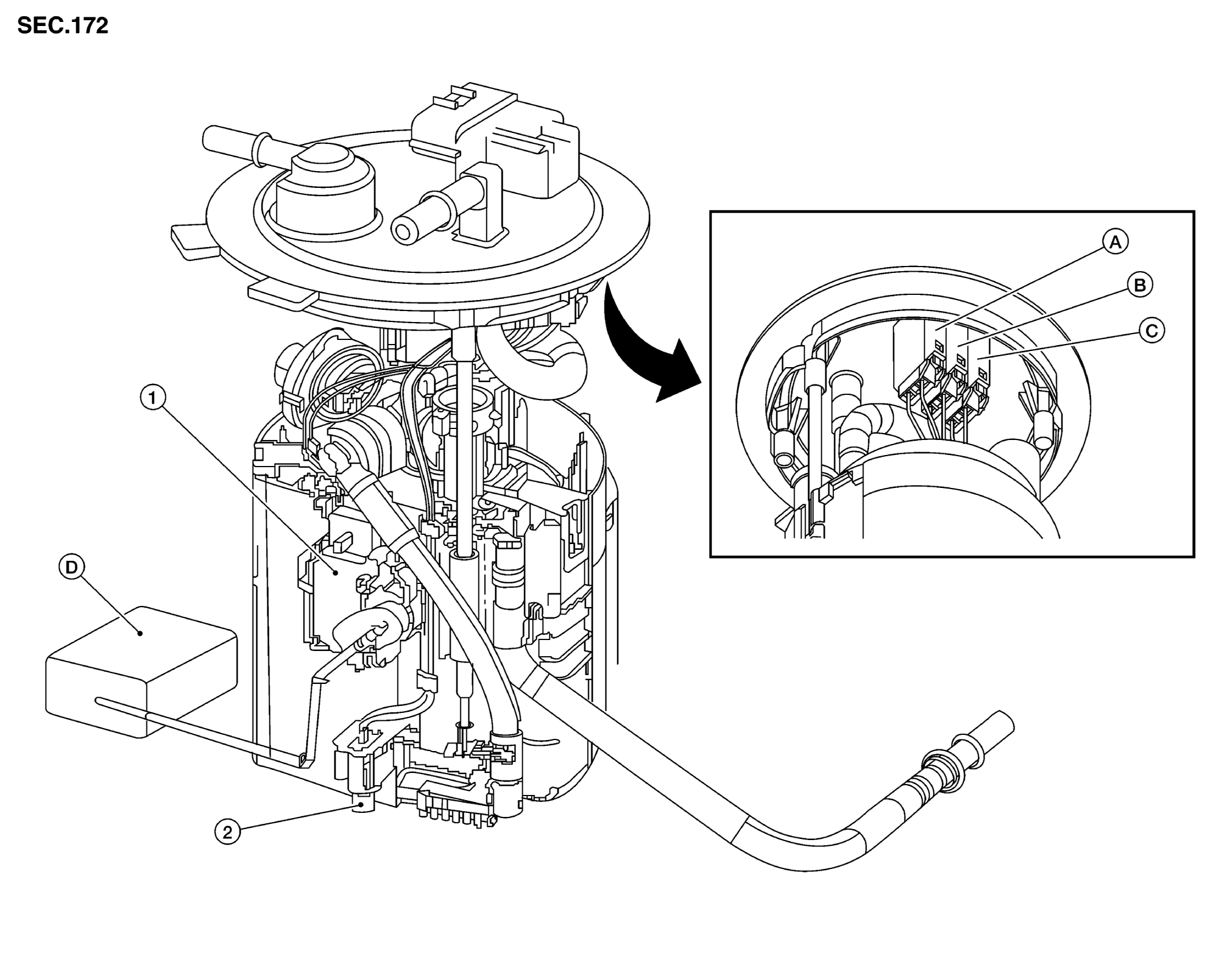

Fuel Level Sensor Unit
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel level sensor unit
2.
Fuel tank temperature sensor
A.
Fuel level sensor unit harness connector
B.
Fuel pump harness connector
C.
Fuel tank temperature sensor harness connector
D.
Float arm assembly
