Exploded View

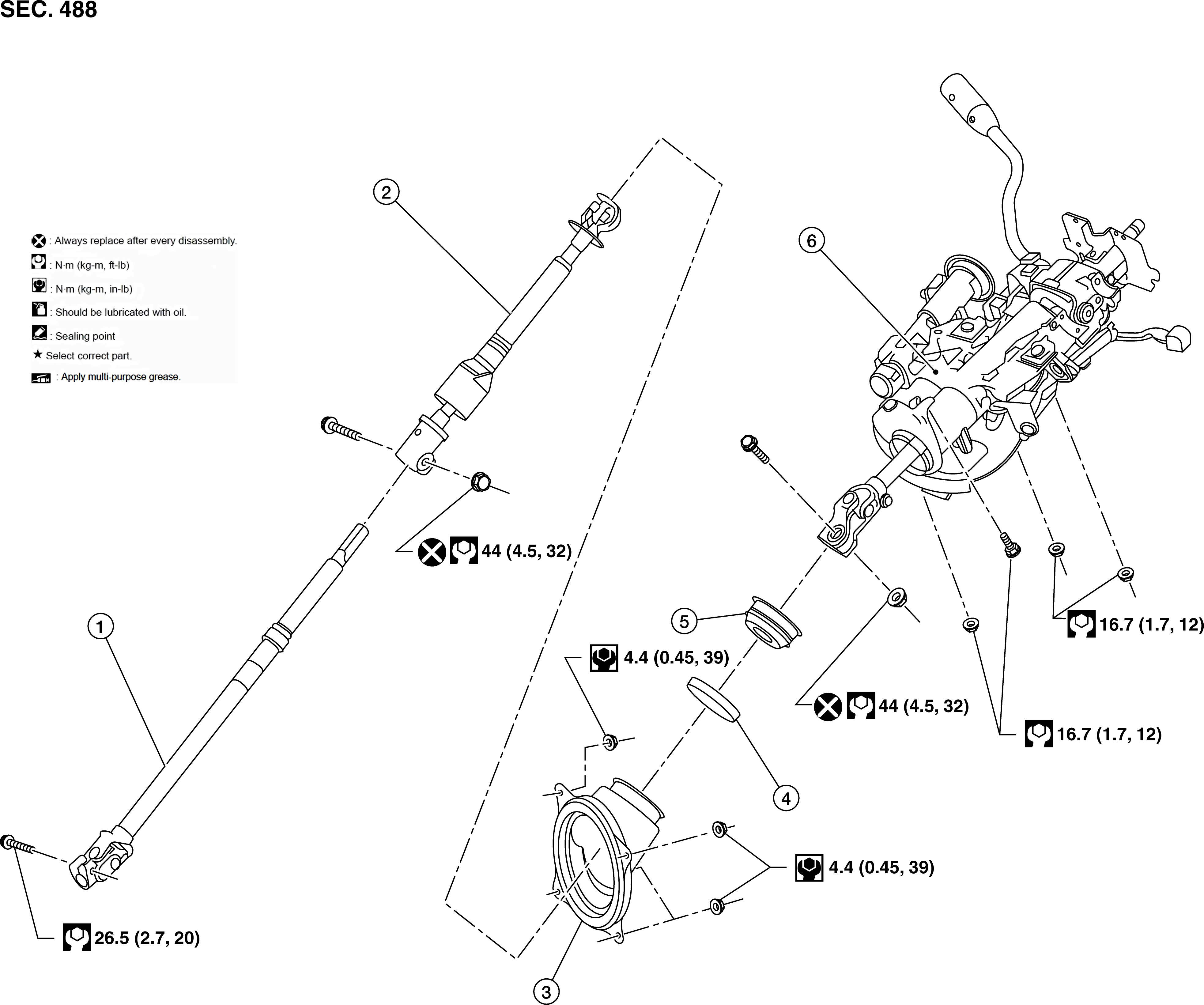

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0203GB-203Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering lower joint 2. Steering intermediate shaft 3. Hole cover
4. Herbie clip 5. Hole cover seal 6. Steering column assembly
