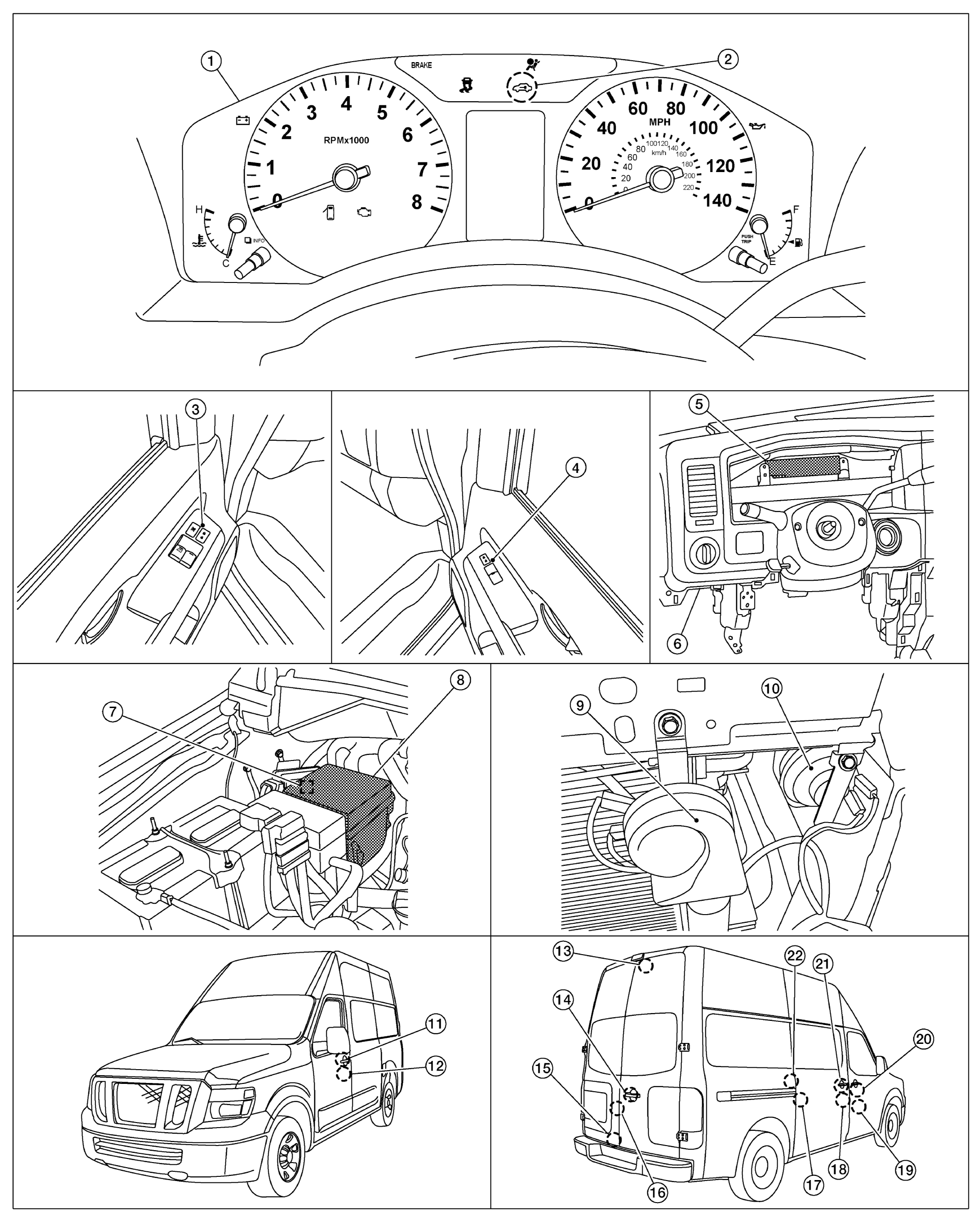

| 1. |
Combination meter |
2. |
Security indicator lamp |
3. |
Main power window and door lock/unlock switch |
| 4. |
Power window and door lock/unlock switch RH |
5. |
BCM (view with steering wheel and combination meter removed) |
6. |
Fuse block (J/B) |
| 7. |
Horn relay |
8. |
IPDM E/R |
9. |
Horn (low) (view with front grill removed) |
| 10. |
Horn (high) |
11. |
Front door lock assembly LH (key cylinder switch) |
12. |
Front door switch LH |
| 13. |
Back door switch upper RH |
14. |
Back door lock assembly (key cylinder switch) |
15. |
Back door switch lower LH |
| 16. |
Back door switch lower RH |
17. |
Sliding door switch |
18. |
Sliding door contact switch (pillar) |
| 19. |
Front door switch RH |
20. |
Sliding door lock assembly (key cylinder switch) |
21. |
Sliding door contact switch (door) |
| 22. |
Secondary sliding door switch (if equipped) |
|
|
|
|
