Exploded View

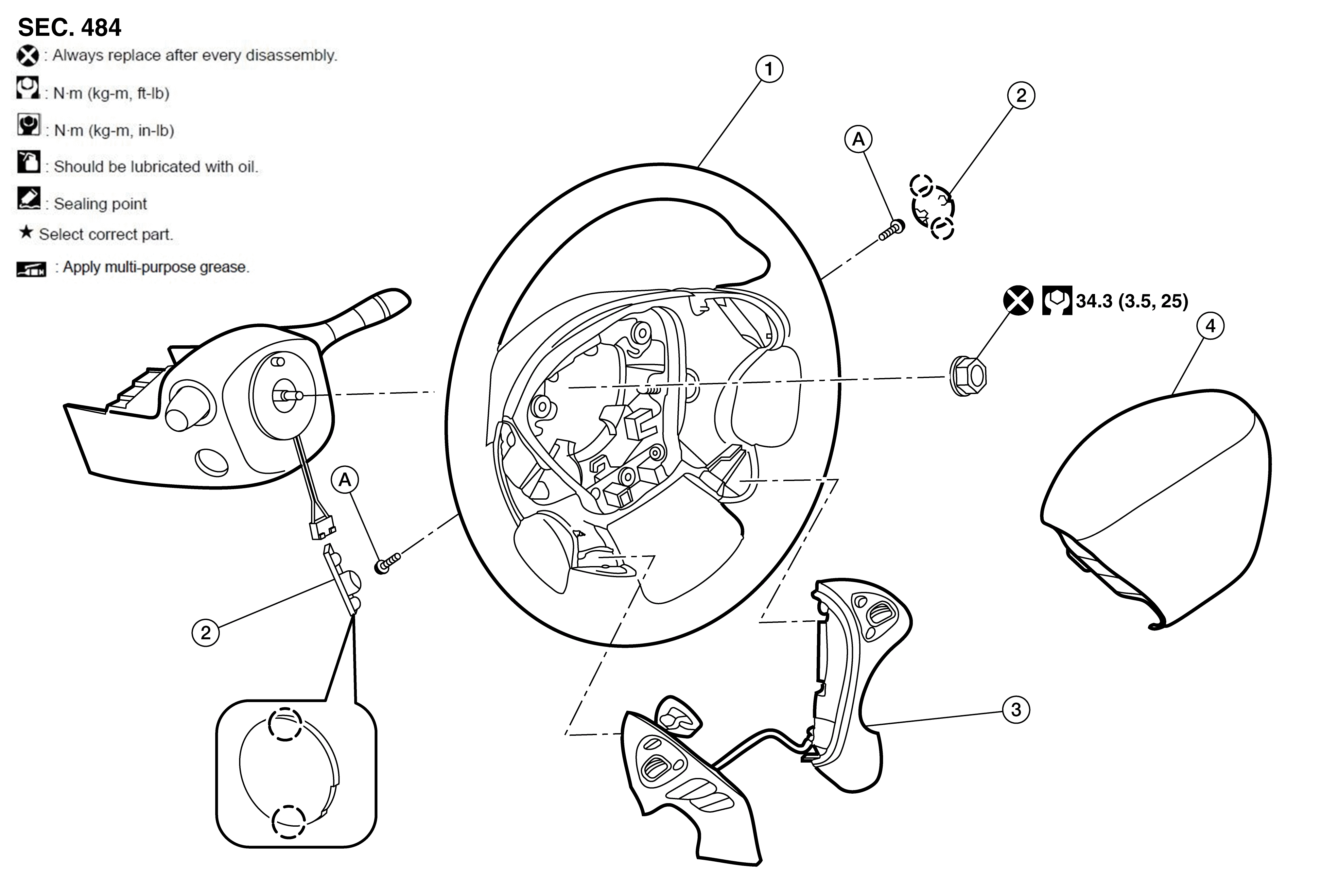

Fig 1: Steering Wheel With Torque Specifications
GNSALGIA0109GB-109Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering wheel 2. Cover 3. Steering switches
4. Driver air bag module A. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS . MARU-H Pawl
