Exploded View

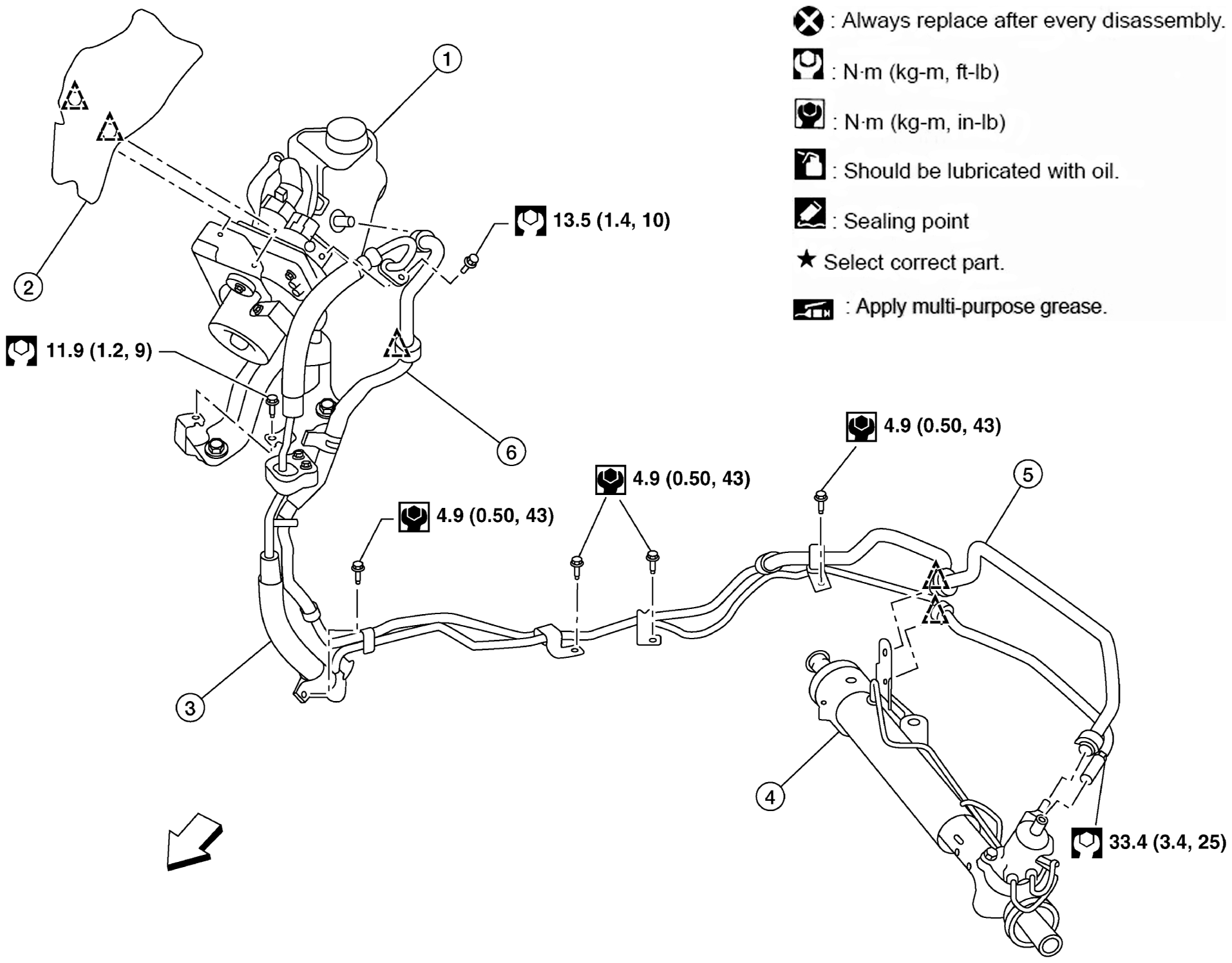

FWD
| 1. | Power steering oil pump | 2. | Cover | 3. | High-pressure piping |
| 4. | Steering gear | 5. | Low-pressure piping (lower) | 6. | Low-pressure piping (upper) |
| Clip | Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.

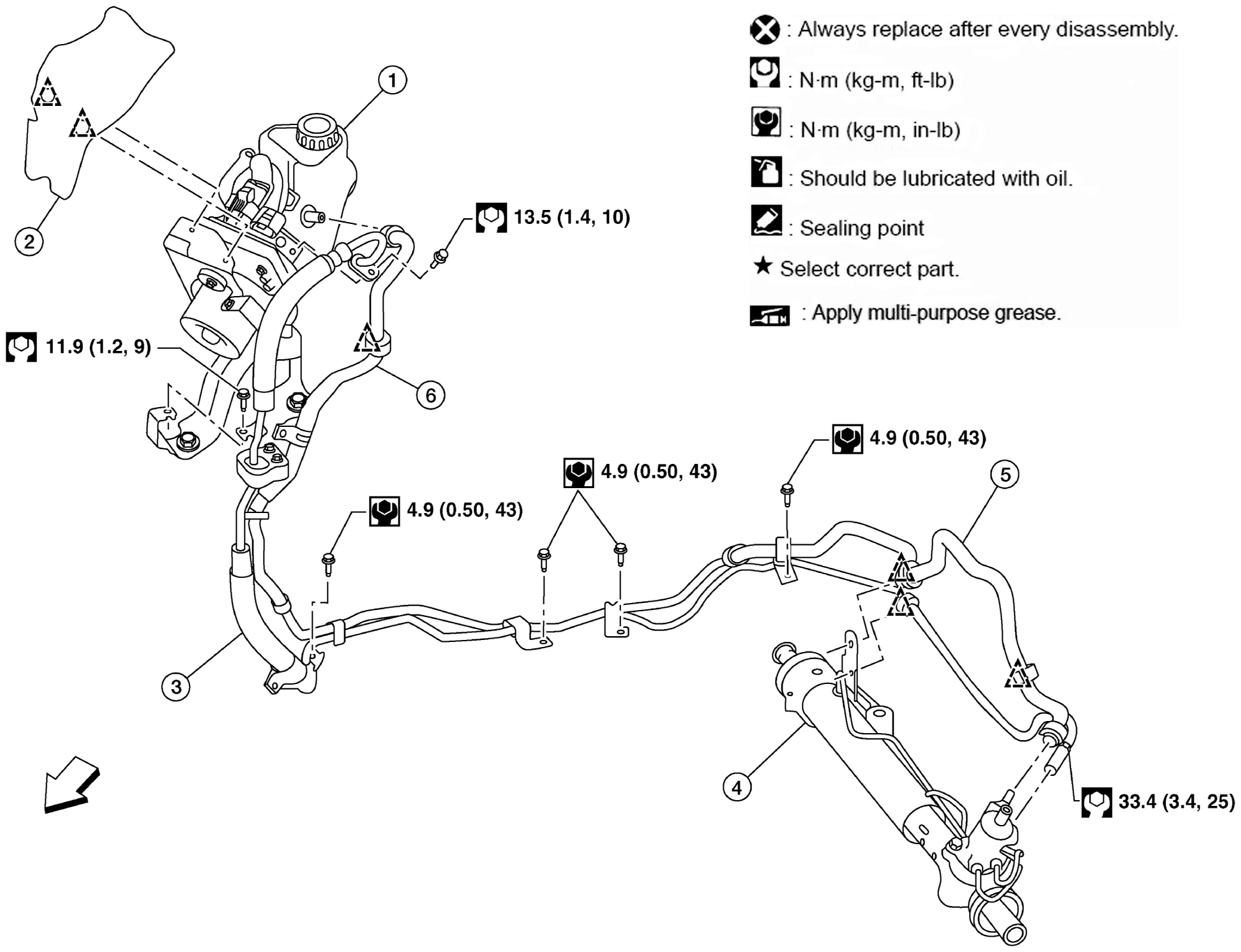

AWD
| 1. | Power steering oil pump | 2. | Cover | 3. | High-pressure piping |
| 4. | Steering gear | 5. | Low-pressure piping (lower) | 6. | Low-pressure piping (upper) |
| Clip | Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
