Exploded View

Electric steering column

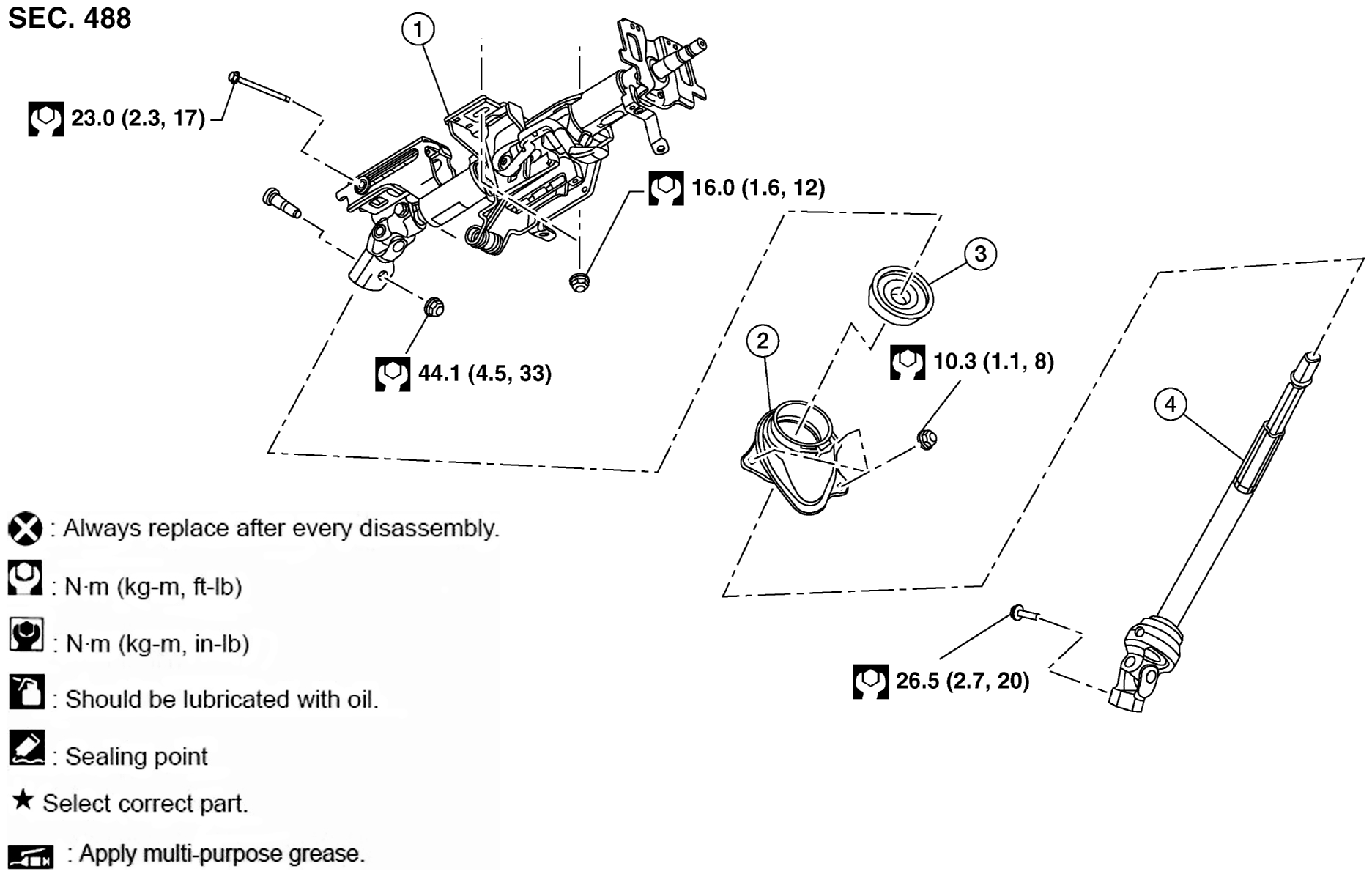

Fig 1: Electric Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Hole cover	3.	Lower boot
4.	Steering intermediate shaft

Mechanical steering column

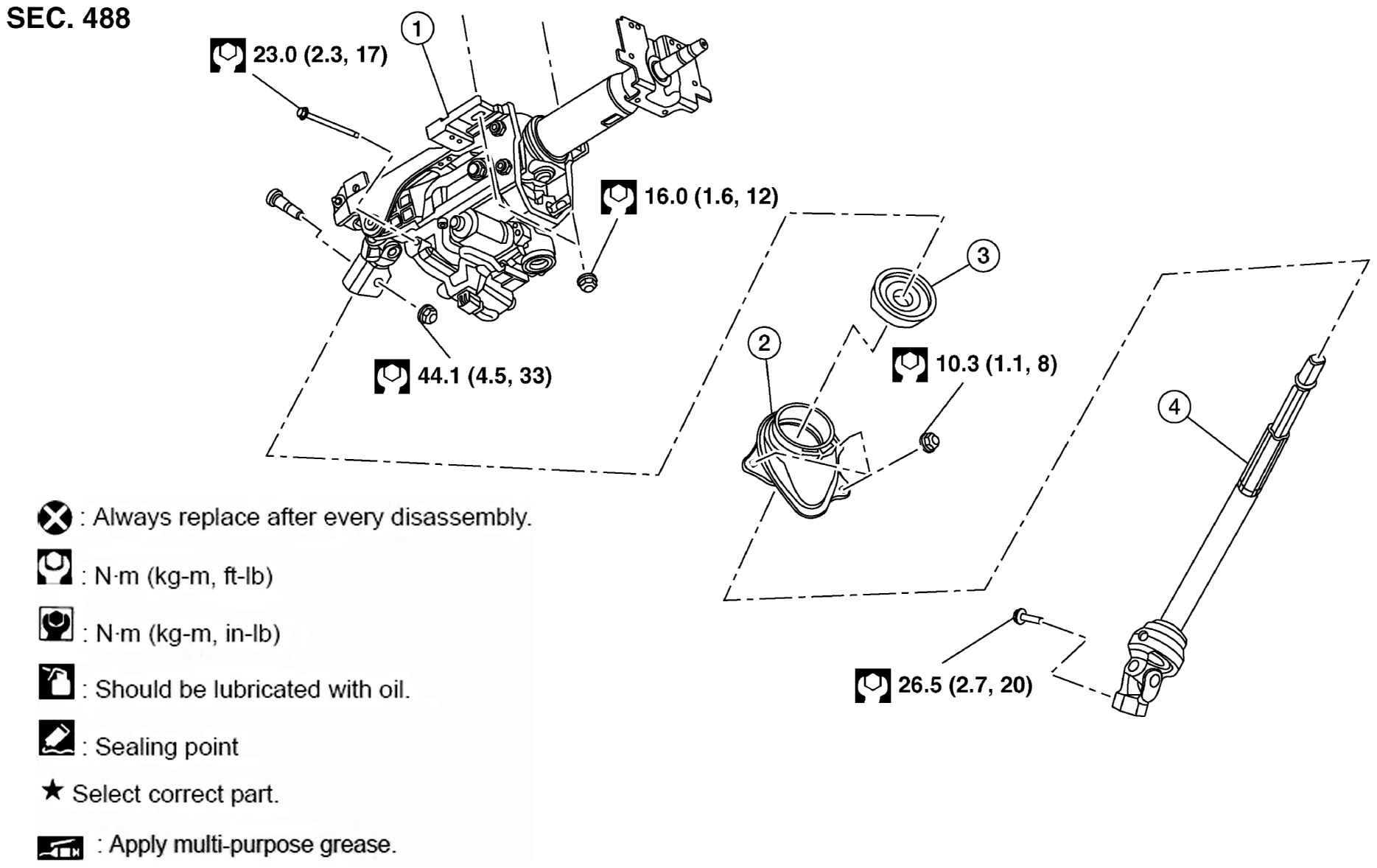

Fig 2: Mechanical Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Hole cover	3.	Lower boot
4.	Steering intermediate shaft
