Exploded View

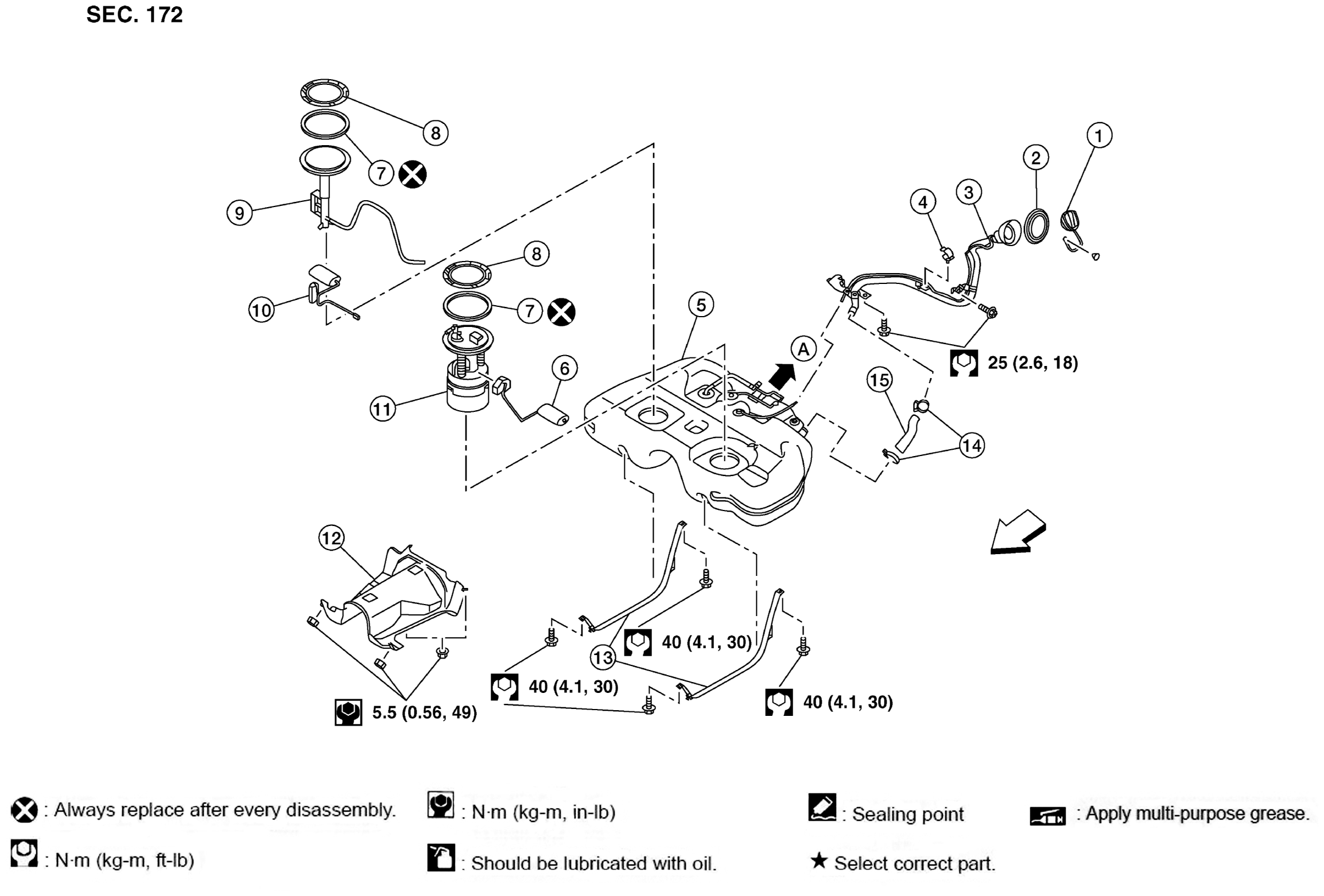

Fig 1: Fuel Tank AWD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filler cap	2.	Grommet	3.	Fuel filler tube
4.	Clip	5.	Fuel tank	6.	Fuel level sensor
7.	O-ring	8.	Lock ring	9.	Sub fuel level assembly
10.	Sub fuel level sensor	11.	Fuel level sensor unit, fuel filter and fuel pump assembly	12.	Fuel tank protector
13.	Fuel tank strap	14.	Clamp	15.	Fuel filler hose
A.	To EVAP canister		Front
