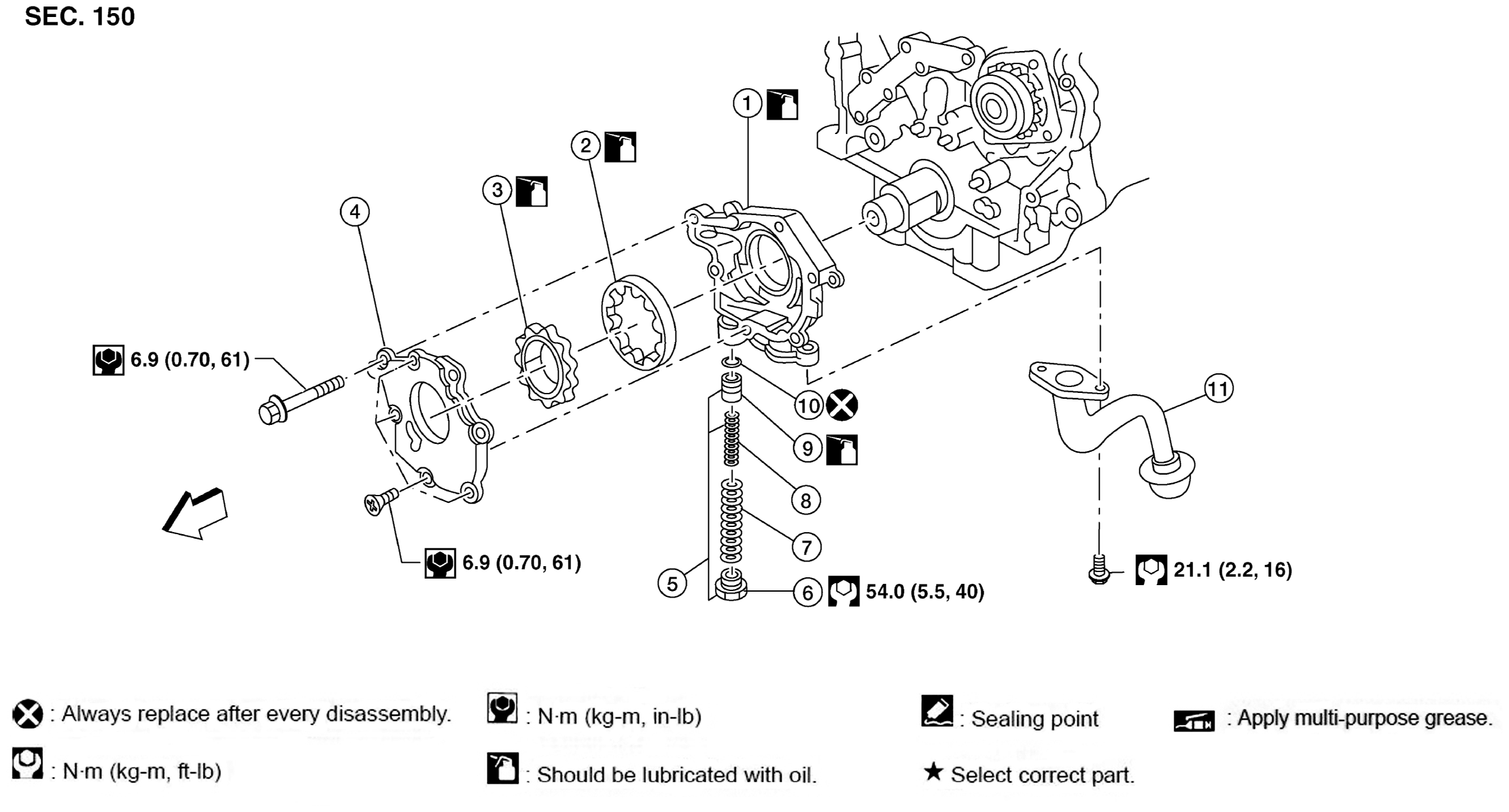

Disassembly And Assembly: Notes
| 1. | Oil pump housing | 2. | Outer pump outer rotor | 3. | Oil pump inner rotor |
| 4. | Oil pump cover | 5. | Regulator valve set assembly | 6. | Regulator valve plug |
| 7. | Regulator valve spring | 8. | Regulator valve spring | 9. | Regulator valve |
| 10. | Regulator valve O-ring | 11. | Oil strainer | Engine front |
CAUTION:
Before assembly, apply new engine oil to the parts as shown.
