Exploded View With Torque Specifications

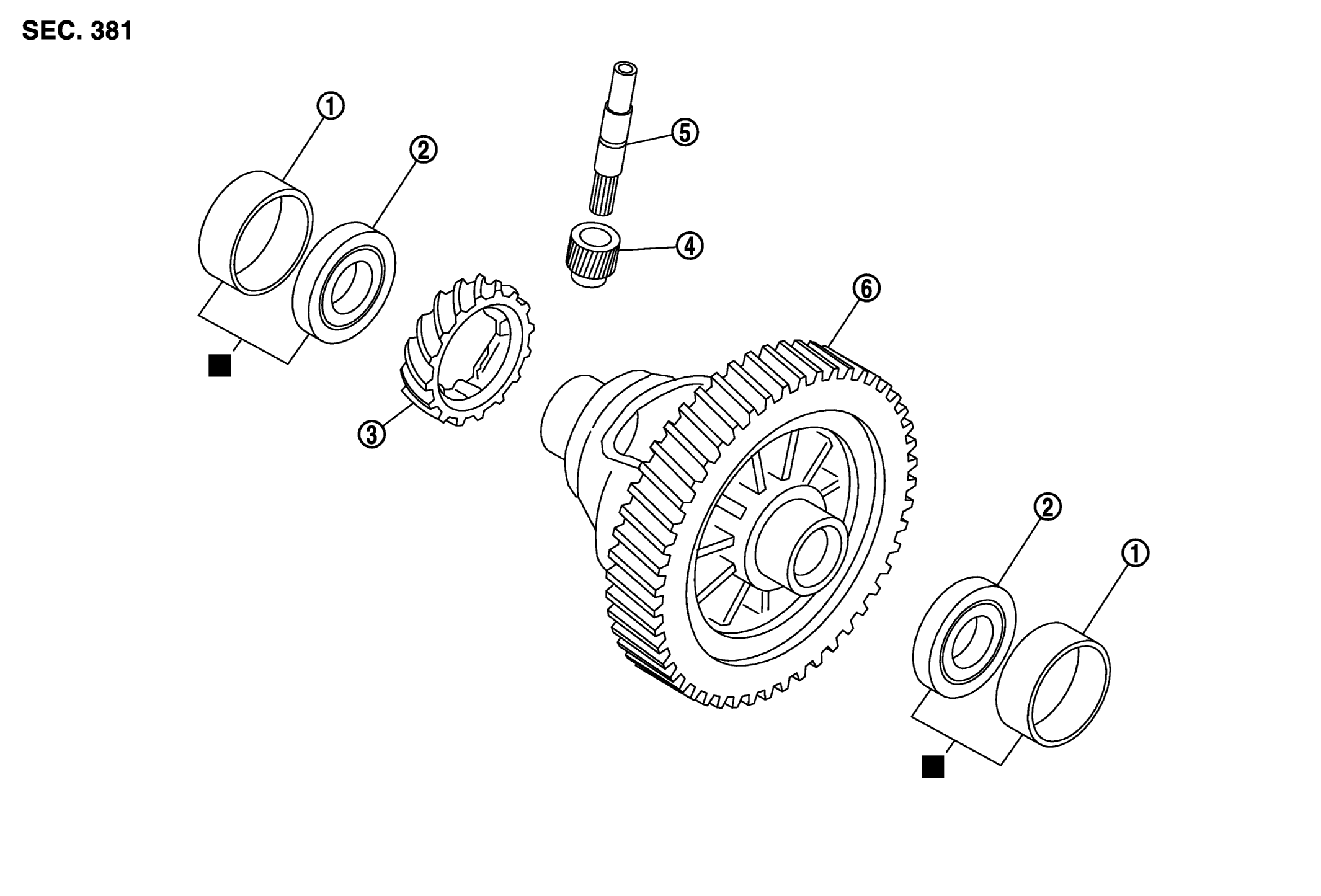

GNSJPDIC0602ZZ-602Courtesy of NISSAN NORTH AMERICA, INC.
1. Differential side bearing outer race 2. Differential side bearing 3. Speedometer drive gear
4. Pinion gear 5. Pinion shaft 6. Final drive
SHIKAKU-B : Replace the parts as a set.
