Removal And Installation: Installation
- Install drive plate.
- Secure drive plate with Tool.
Tool number : KV11105210 (J-44716) - Using socket, tighten bolts.

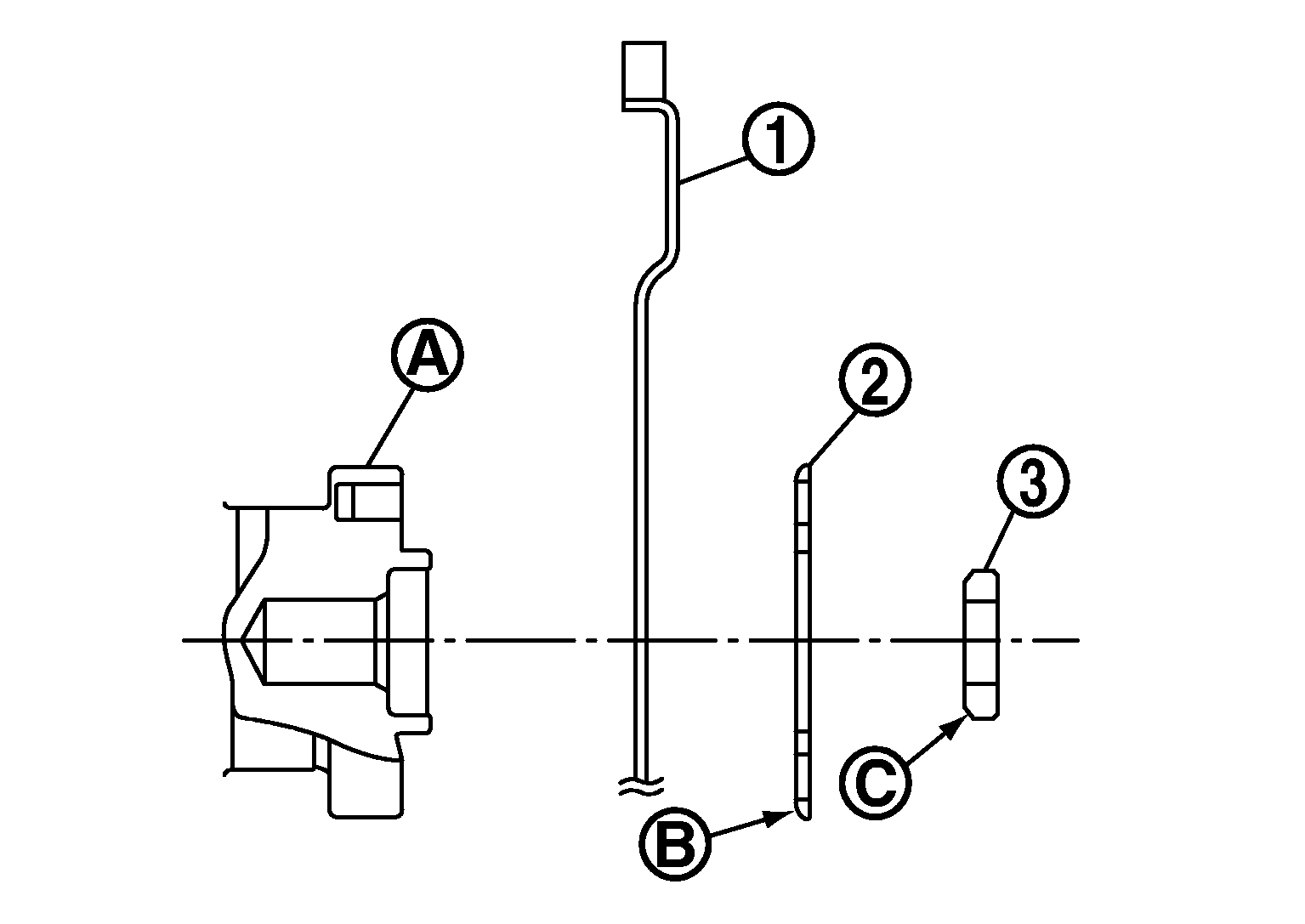

- Install drive plate (1), reinforcement plate (2) and pilot converter (3) as shown.
(A) :Crankshaft rear end (B) :Rounded (C) :Chamfered - Using a drift of 33 mm (1.30 in) in diameter, press-fit pilot converter into the end of crankshaft until it stops.
- Secure drive plate with Tool.
- Installation of the remaining components is in the reverse order of removal.
