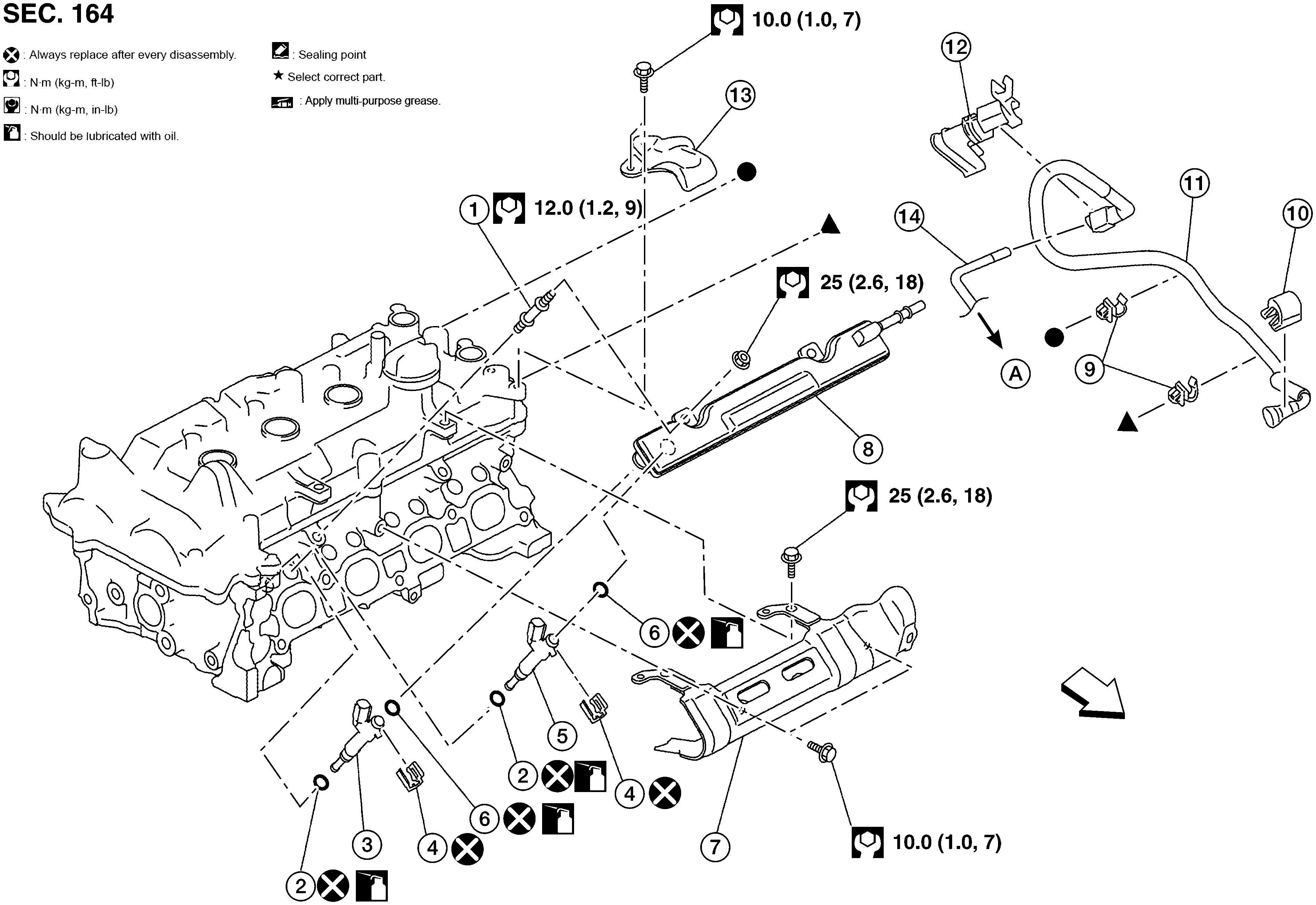

Exploded View With Torque Specifications
| 1. | Stud bolt | 2. | O-ring (green) | 3. | Fuel injector (front) |
| 4. | Clip | 5. | Fuel injector (rear) | 6. | O-ring (black) |
| 7. | Fuel tube protector | 8. | Fuel tube | 9. | Clamp |
| 10. | Quick connector cap (engine side) | 11. | Fuel feed hose | 12. | Quick connector cap (floor piping-side) |
| 13. | Fuel connector protector | 14. | Fuel pipe | A. | To centralized under - floor piping |
| Front |
CAUTION:
Do not remove or disassemble parts unless instructed.
