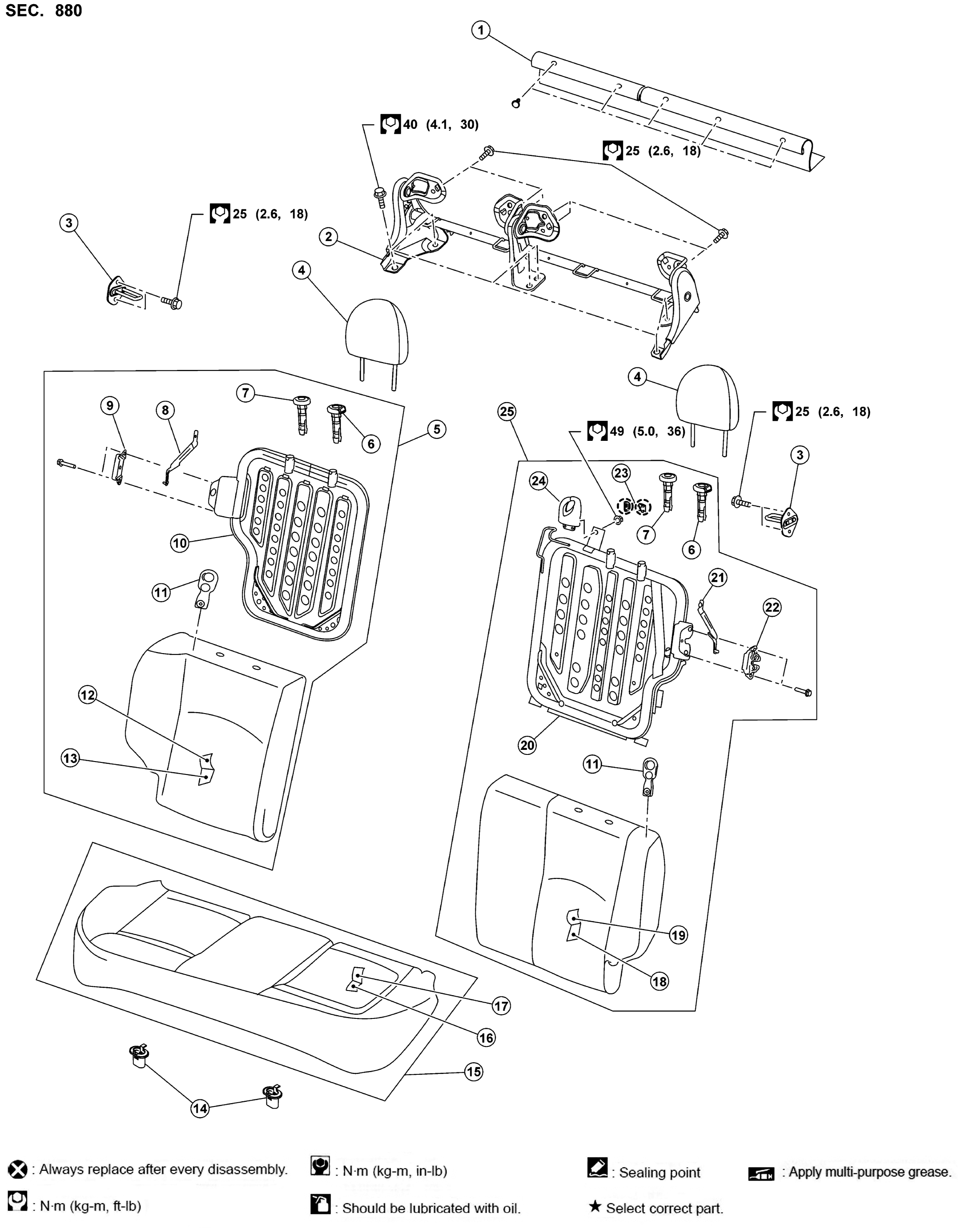

| 1. |
Seatback hinge trim |
2. |
Seatback hinge |
3. |
Seatback striker |
| 4. |
Headrest |
5. |
Seatback (RH) |
6. |
Headrest holder (locked) |
| 7. |
Headrest holder (free) |
8. |
Seatback latch bracket (RH) |
9. |
Seatback latch (RH) |
| 10. |
Seatback frame (RH) |
11. |
Seatback latch release knob |
12. |
Seatback trim (RH) |
| 13. |
Seatback pad (RH) |
14. |
Seat cushion hook |
15. |
Seat cushion |
| 16. |
Seat cushion pad |
17. |
Seat cushion trim |
18. |
Seatback pad (LH) |
| 19. |
Seatback trim (LH) |
20. |
Seatback frame (LH) |
21. |
Seatback latch bracket (LH) |
| 22. |
Seatback latch (LH) |
23. |
Seatbelt guide finisher |
24. |
Seat belt guide |
| 25. |
Seatback (LH) |
 |
Pawl |
|
|
