Nissan-Datsun
>>
2017
>>
Micra S, Standard Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch System
>>
Removal And Installation
>>
Clutch Pedal
>>
Exploded View With Torque Specifications

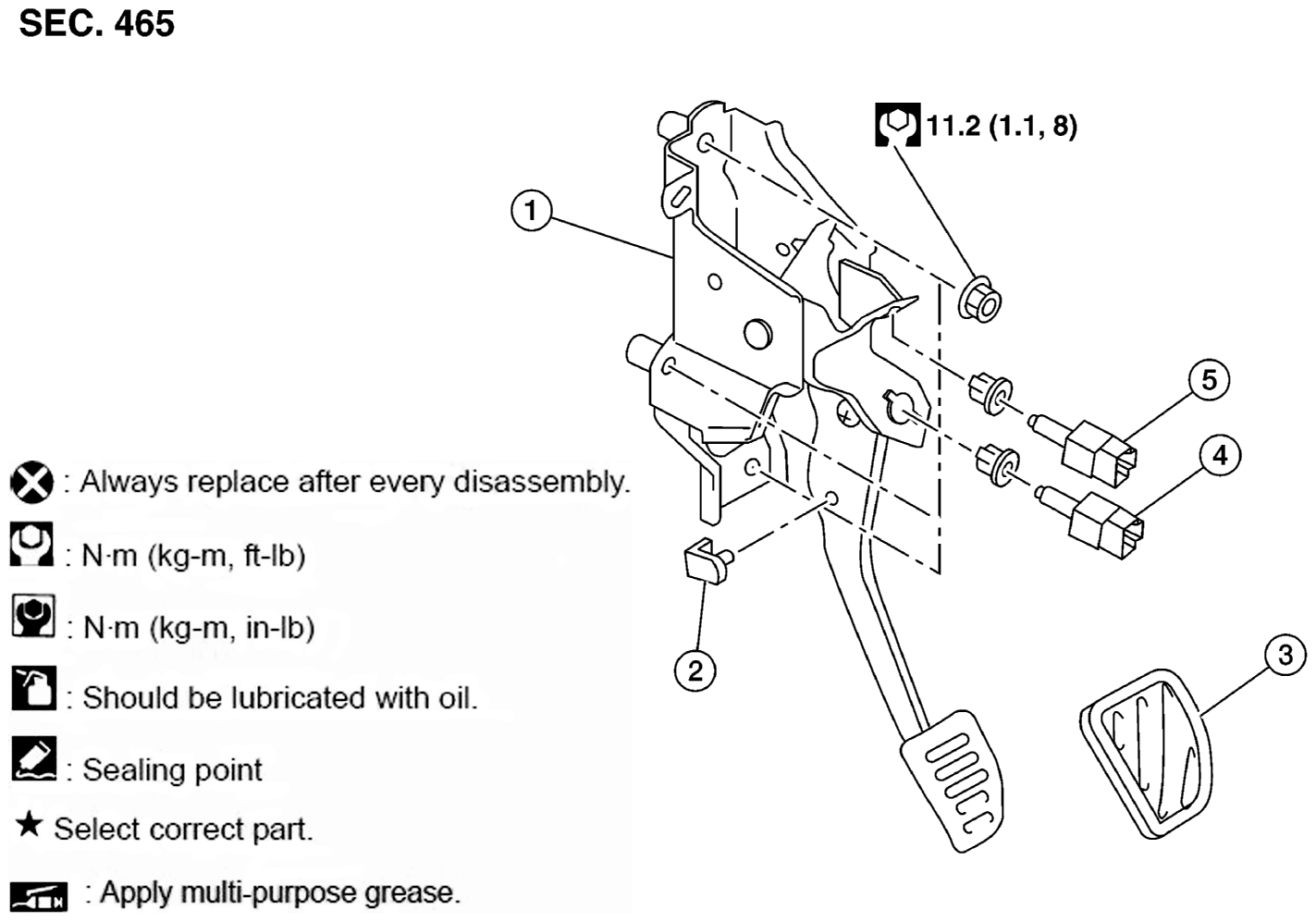

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Clutch pedal
2.
Pedal stopper rubber
3.
Pedal pad
4.
Clutch pedal position switch (if equipped)
5.
Clutch interlock switch
Courtesy of NISSAN NORTH AMERICA, INC.
