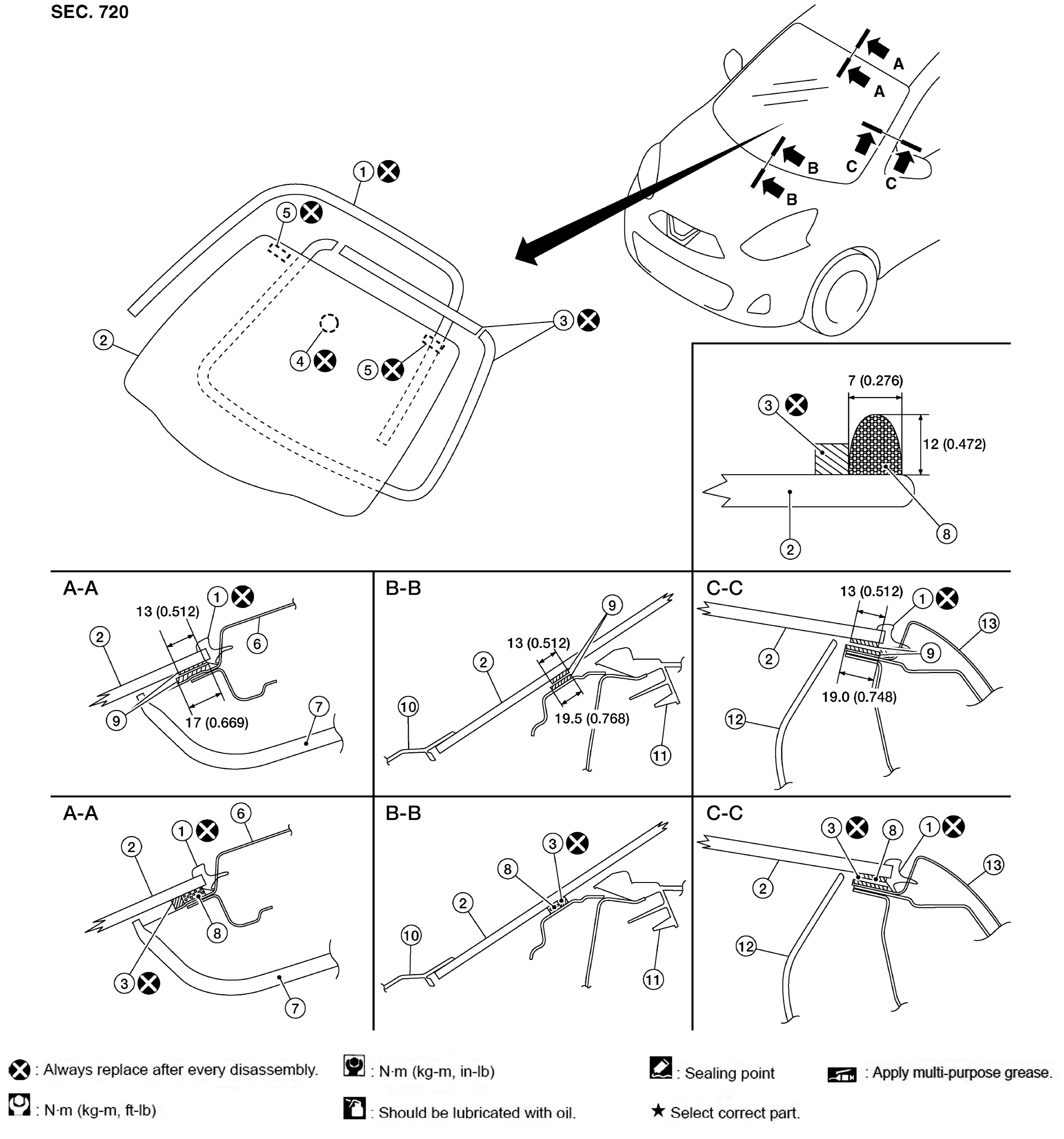

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Unit:mm(in)

1.	Windshield molding	2.	Windshield glass	3.	Dam sealant rubber (upper, lower)
4.	Inside mirror base	5.	Clip	6.	Roof panel assembly
7.	Headlining assembly	8.	Adhesive	9.	Primer
10.	Cowl top cover	11.	Instrument panel	12.	Front pillar finisher
13.	Body side outer
