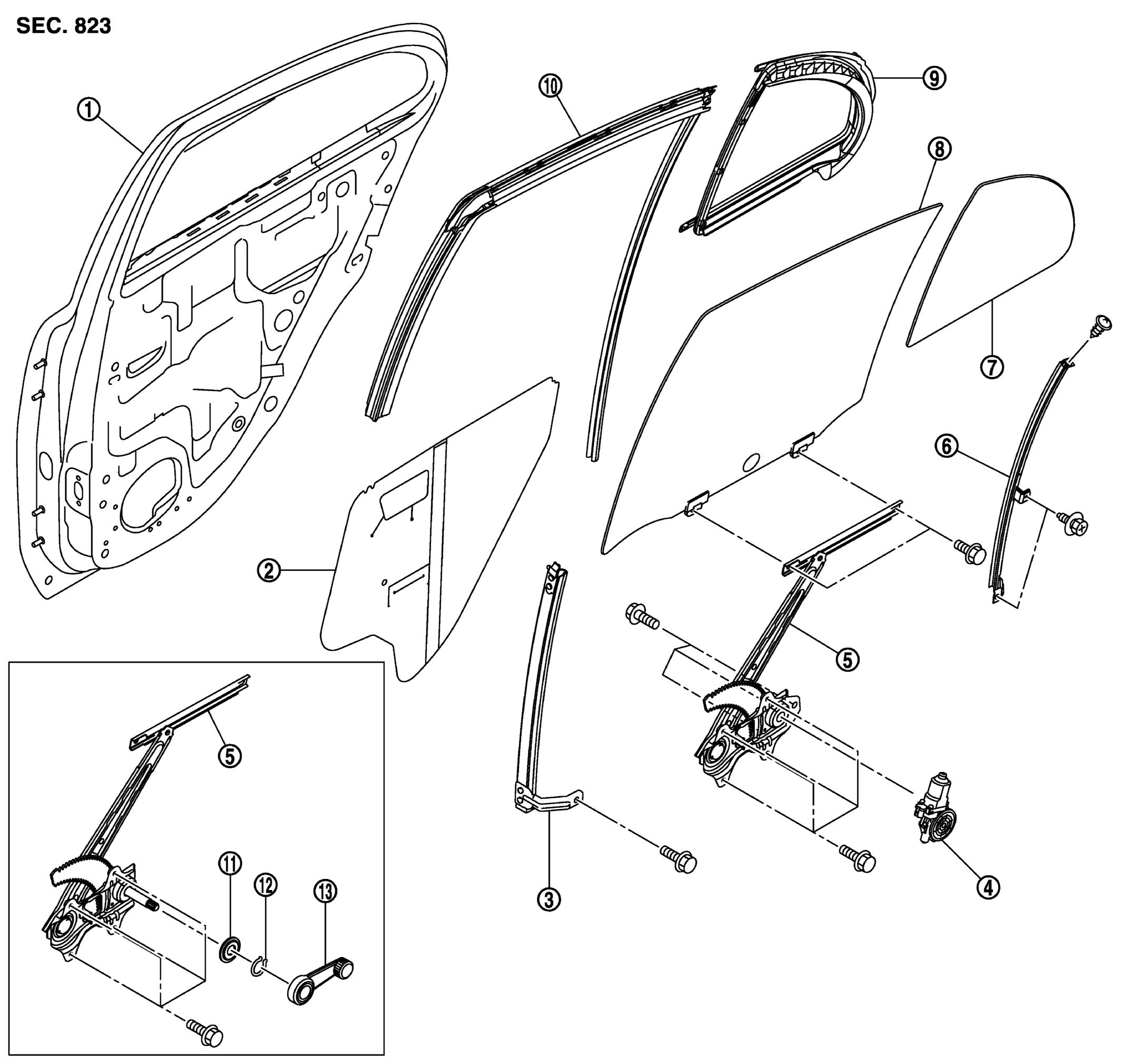

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Sealing screen	3.	Rear door sash
4.	Power window motor	5.	Regulator assembly	6.	Partition sash
7.	Partition glass	8.	Rear door glass	9.	Partition weather-strip
10.	Rear door glass run	11.	Regulator seal	12.	Snap pin
13.	Regulator handle
