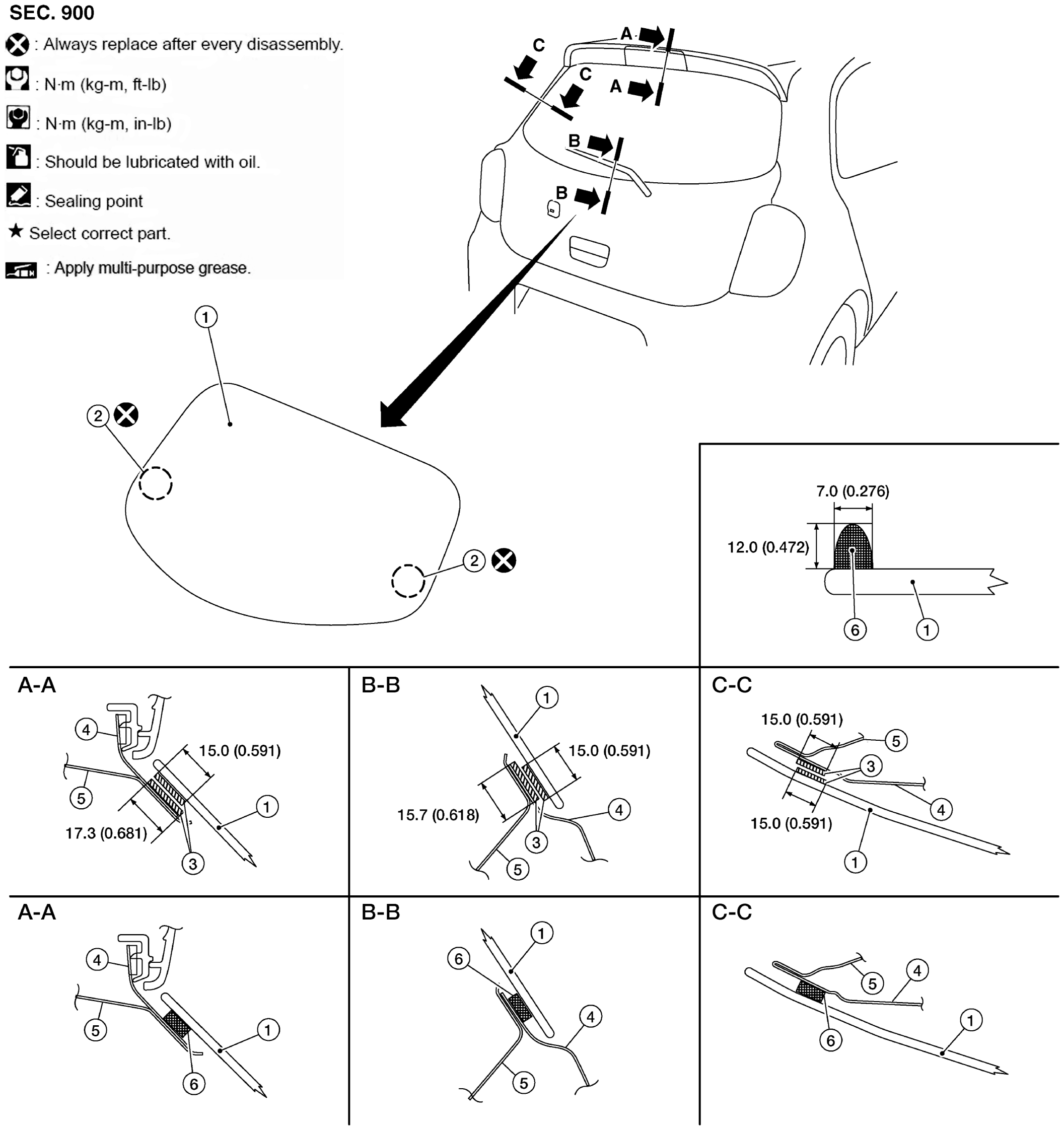

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Unit:mm(in)

1.	Back door glass window	2.	Back door glass holder upper	3.	Primer
4.	Back door outer	5.	Back door inner	6.	Adhesive
