Component Location

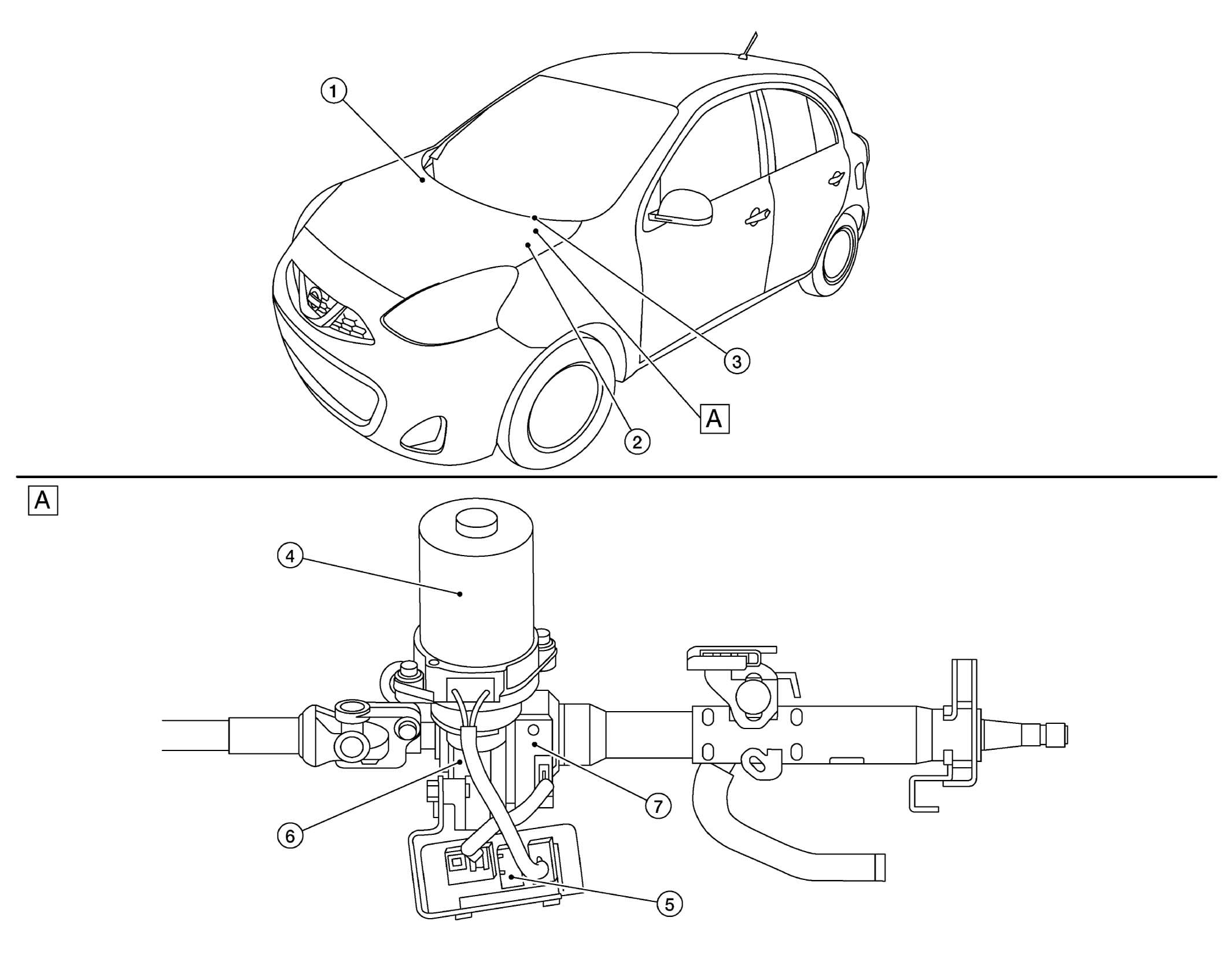

GNSALGIA0181ZZ-181Courtesy of NISSAN NORTH AMERICA, INC.
A. Steering column assembly
No. Component Function
1. ABS actuator and electric unit (control unit)
  • Transmits mainly the following signal to EPS control unit via CAN communication:
2. ECM
  • Transmits mainly the following signals to EPS control unit via CAN communication:
    • Power steering start activation request signal

      Refer to COMPONENT LOCATION for detailed installation location.
3. Combination meter (EPS warning lamp)
  • Transmits mainly the following signal to EPS control unit via CAN communication:
  • Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication. Refer to SYSTEM DESCRIPTION .
4. EPS motor EPS MOTOR
5. EPS control unit EPS CONTROL UNIT
6. Reduction gear REDUCTION GEAR
7. Torque sensor TORQUE SENSOR
